11417136
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | 30AMRL (also VOE 11417136) |
| Product Name | Loader Abrasion Material & Rock Tooth |
| Product Type | Wheel Loader Bucket Tooth / Ground Engaging Tool (GET) |
| Compatible Machine Models | Volvo L220 Series Wheel Loader |
| Application | Abrasive materials and rock handling with impact resistance |
| Design | Abrasion Material Rock Loader (AMRL) |
| Single Weight | 10.7 kgs (23.6 lbs) |
| Material | High-hardness, impact and abrasion-resistant alloy steel (~500 HB) |
| Compatible Adapter System | Volvo 30 Series |
| Compatible Pin | 30P (Locking pin for secure attachment) |
| Industry Focus | Quarrying, Mining support, Rock handling, Aggregate processing, Heavy construction |
| OEM Interchangeability | Direct replacement for Volvo OEM tooth |
Volvo 30AMRL bucket tooth
VOE 11417136 abrasion rock tooth
L220 wheel loader bucket teeth
30 series Volvo AMRL tooth
10.7 kg loader tooth
Replacement tooth for Volvo L220 loader
30P locking pin for Volvo tooth
Volvo abrasion rock bucket tooth L220
30AMRL loader teeth
Rock and abrasion tooth for L220

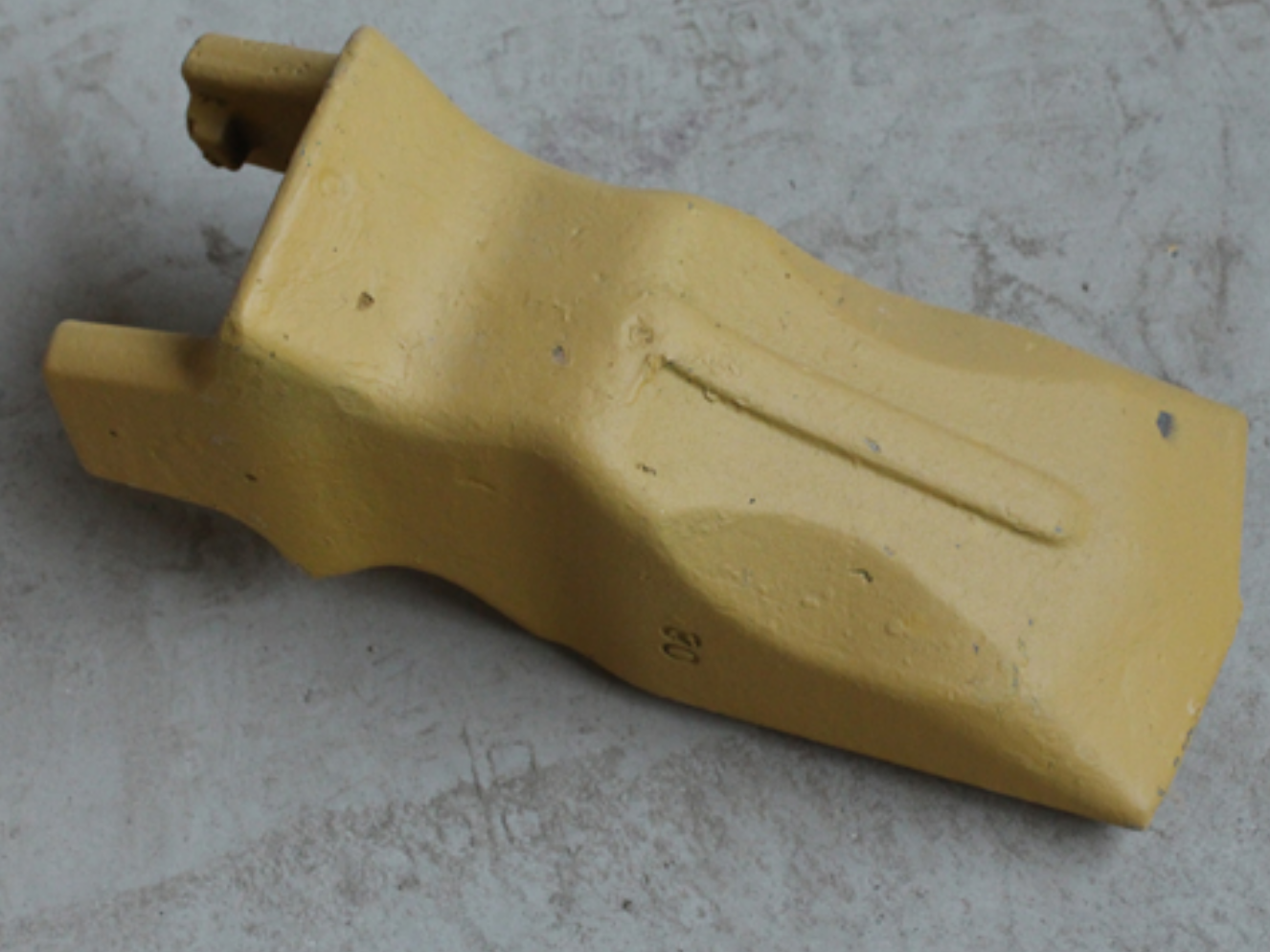

The Volvo 30AMRL Loader Abrasion Material & Rock Tooth (Part No. VOE 11417136) is a genuine OEM-specification ground engaging tool designed specifically for the Volvo L220 series wheel loaders. Engineered as part of the Volvo 30 Series tooth system, this AMRL (Abrasion Material Rock Loader) tooth provides a balanced design for applications involving both abrasive materials and rock, offering enhanced wear resistance while maintaining impact strength.
The AMRL profile is the intermediate choice between AML (pure abrasion) and GPL (general purpose) teeth, specifically engineered for quarry and mining support applications where operators encounter both abrasive fines and larger rock fragments. This tooth provides the durability needed for rock contact while maintaining wear resistance in abrasive conditions.
| Feature | Benefit |
|---|---|
| Abrasion Material Rock Loader (AMRL) Profile | Balanced design for combined abrasive and rock conditions |
| Enhanced Wear Material | Extra thickness in high-wear areas for extended service life |
| Impact-Resistant Alloy Steel (~500 HB) | Withstands shock loading from rock contact |
| Volvo 30 Series System | Perfect fit and maximum performance with Volvo adapters |
| Optimized Nose Profile | Maintains penetration in mixed materials |
| Compatible with 30P Locking Pin | Easy, hammer-less installation with Volvo's vertical locking device |
| Self-Sharpening Design | Maintains penetration capability throughout the life of the tooth |
| Tooth Type | Wear Resistance | Impact Resistance | Penetration | Best Application |
|---|---|---|---|---|
| GPL | Good | Good | Best | General purpose, mixed materials |
| AML | Better | Fair | Good | Pure abrasion (sand, gravel) |
| AMRL | Good-Better | Good | Good-Better | Quarry, rock with fines, mining support |
| AMXL | Best | Poor | Good | Extreme abrasion only |
| Equipment Class | Typical Applications |
|---|---|
| Volvo L220 Wheel Loader | Quarry loading, shot rock with fines, crushed stone handling |
| Mining Support | Ore handling with abrasive fines, overburden, stockpile reclamation |
| Heavy Construction | Demolition debris, recycled concrete with rebar |
| General Applications | Mixed abrasive and rock materials |
The 30AMRL tooth is specifically matched to Volvo L220 series wheel loaders, including:
Volvo L220
Volvo L220D
Volvo L220E
Volvo L220F
Volvo L220G
Volvo L220H
Volvo L220 Electric
The L220 series features an operating weight of approximately 27,000–32,000 kg with bucket capacities ranging from 4.0 m³ to 7.0 m³ depending on configuration.
| Condition | Recommended Tooth |
|---|---|
| Clean rock with minimal abrasion | 30GPL or 30AMRL |
| Rock with significant abrasive fines | 30AMRL |
| Mixed quarry materials | 30AMRL |
| Pure sand/gravel (no rock) | 30AML |
| Extreme abrasion only | 30AMXL |
| High-impact rock only | 30GPL |
Adapter Compatibility: Install on Volvo 30 Series adapter only
Pin Installation: Use correct 30P locking pin; vertical locking device enables fast, hammerless installation
Regular Inspection: Check tooth wear periodically; inspect for both abrasion wear and impact damage
Application Selection: Ideal for applications where both rock and abrasive fines are present
Complete System: Replace all teeth as a set for even wear and consistent bucket fill
Lifting Safety: Due to weight (10.7 kg per tooth), use proper lifting techniques when handling multiple units
| Comparison | 30AMRL vs 30GPL | 30AMRL vs 30AML |
|---|---|---|
| Wear Resistance | Better | Slightly less |
| Impact Resistance | Similar | Better |
| Best Application | Rock + fines | Abrasion only |
Balanced Performance: The ideal compromise for quarry and mining support applications with mixed material types
Versatile Application: One tooth type handles both rock impact and abrasive wear
Extended Life in Quarries: Outperforms GPL in abrasive conditions, outperforms AML in rock conditions
Volvo Genuine Quality: Manufactured to exact OEM specifications for perfect fit and performance
Cost-Effective: Reduces inventory complexity – one tooth type for mixed applications
| Item | Detail |
|---|---|
| Part Number | 30AMRL / VOE 11417136 |
| Type | Abrasion Material Rock Loader (AMRL) |
| Series | 30 Series Volvo Tooth System |
| Weight | 10.7 kg per piece |
| Pin Required | 30P (order separately) |
| Packaging | Individual pieces or bulk |
Note: Must be used with Volvo 30 Series adapter and 30P locking pin. For pure abrasive applications (sand only), consider 30AML. For pure rock applications with minimal fines, 30GPL may be suitable. Always replace the retaining pin when installing new teeth for optimal retention and safety.
