LA5FCB16
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | LA5FCB16 (also VOE 15603434) |
| Product Name | Flush-Mounted Adapter / Flush Corner Adapter |
| Product Type | Wheel Loader Bucket Adapter / Ground Engaging Tool (GET) |
| Application | Connects bucket teeth to the bucket lip with flush profile |
| Design | FCB - Flush Corner (Bolt-On) |
| Edge Thickness | 16 mm |
| Single Weight | 1.7 kgs (3.7 lbs) |
| Material | High-strength, heat-treated alloy steel |
| Attachment Method | Bolt-On |
| Compatible Tooth Series | Volvo 5 Series |
| Compatible Pin | 5P (Locking pin for secure attachment) |
| Industry Focus | Compact wheel loaders, Light construction, Landscaping, Agriculture, Municipal work |
| OEM Interchangeability | Direct replacement for Volvo OEM adapter |
| Compatible Machine Models | Volvo L20, L25, L30, L35, L45 Series Compact Wheel Loaders |
Volvo LA5FCB16 flush adapter
VOE 15603434 flush-mounted adapter
L20 L25 L30 L35 L45 wheel loader adapter
Flush corner adapter 16mm edge
Volvo FCB flush adapter 5 series
16mm edge thickness adapter
1.7 kg Volvo GET adapter
5P locking pin compatible adapter
Bolt-on flush adapter

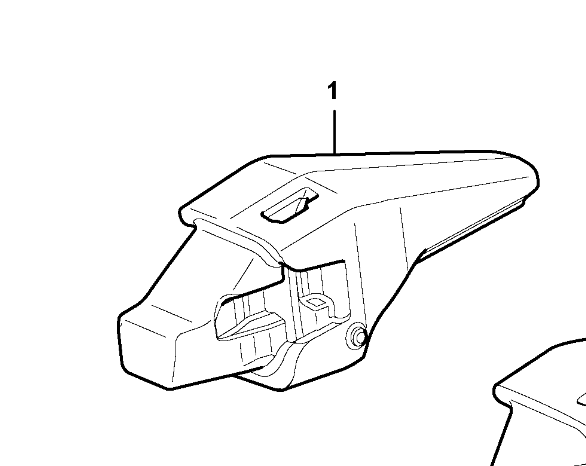

The Volvo LA5FCB16 Flush-Mounted Adapter (Part No. VOE 15603434) is a genuine OEM-specification ground engaging tool adapter designed specifically for Volvo compact wheel loaders. Engineered as part of the Volvo FCB (Flush Corner Bolt-On) series, this adapter provides a low-profile, flush-mounted interface between the bucket lip and 5 Series ground engaging tools (teeth).
The "FCB" (Flush Corner Bolt-On) design combines the benefits of a flush-mounted, low-profile adapter with the convenience of bolt-on attachment. This eliminates the need for welding during installation or replacement while maintaining the material flow advantages of a flush profile. With a 16mm edge thickness rating and lightweight 1.7 kg construction, this adapter is ideal for smaller compact wheel loaders in light construction, landscaping, and municipal applications.
| Feature | Benefit |
|---|---|
| Flush-Mounted (FCB) Design | Low-profile adapter sits flush with cutting edge for improved material flow and reduced hang-up |
| Bolt-On Attachment | No welding required - simple bolted installation and replacement |
| 16mm Edge Thickness Compatibility | Perfect match for compact loader bucket edges |
| Lightweight Construction (1.7 kg) | Easy handling and installation |
| High-Strength Alloy Steel | Durable construction for light to medium-duty applications |
| Volvo 5 Series System | Compatible with 5 Series teeth and 5P locking pins |
| Precision Manufacturing | Ensures perfect fitment to OEM buckets |
| Corrosion Resistant Coating | Extended service life in various conditions |
| Part Number | Type | Edge Thickness | Weight | Best Application |
|---|---|---|---|---|
| LA5FC20 | FC (Weld-on) | 20 mm | 1.3 kg | Flush mount, weld-on |
| LA5FCB16 | FCB (Bolt-on) | 16 mm | 1.7 kg | Flush mount, bolt-on |
The LA5FCB16 adapter is specifically matched to Volvo compact wheel loaders with 16mm bucket edges, including:
Volvo L20 Series (L20, L20B, L20C)
Volvo L25 Series (L25, L25B)
Volvo L30 Series (L30, L30B, L30C)
Volvo L35 Series (L35, L35B)
Volvo L45 Series (L45, L45B)
These compact wheel loaders typically feature operating weights from 4,000 kg to 8,000 kg with bucket capacities from 0.5 m³ to 1.5 m³.
| Component | Part Number | Description |
|---|---|---|
| Compatible Teeth | 5GPL, 5GPE, 5AML, 5PPE, 5TPE | 5 Series teeth |
| Locking Pin | 5P | Vertical locking pin |
| Mounting Bolts | Refer to OEM manual | Required for installation |
No Welding Required: FCB adapters are bolted directly to the bucket edge - no welding needed.
Edge Preparation: Ensure 16mm bucket edge has pre-drilled holes matching the adapter bolt pattern.
Bolt Torque: Use OEM-specified bolts and torque to recommended specifications.
Pin Installation: Use correct 5P locking pin; vertical locking device enables fast, hammerless installation.
Regular Inspection: Check bolts for tightness and adapters for wear periodically.
Tooth Compatibility: Use only with Volvo 5 Series teeth.
Easy Replacement: When worn, unbolt the adapter and bolt on a new one - minimal downtime.
Flush Profile Advantage: The low-profile design reduces material hang-up, improves bucket fill factors, and enhances visibility to the cutting edge
No Welding Required: The bolt-on design eliminates the need for specialized welding equipment and personnel
Quick Replacement: Adapters can be changed rapidly in the field, minimizing machine downtime
Compact Machine Optimized: Specifically engineered for Volvo's compact wheel loader line
Volvo Genuine Quality: Manufactured to exact OEM specifications for perfect fit and performance
Versatile Application: Suitable for light construction, landscaping, agriculture, municipal work, and general purpose applications
| Item | Detail |
|---|---|
| Part Number | LA5FCB16 / VOE 15603434 |
| Type | FCB - Flush Corner Bolt-On |
| Edge Thickness | 16 mm |
| Weight | 1.7 kg per piece |
| Pin Required | 5P (order separately) |
| Bolts Required | OEM-specified (order separately) |
| Installation | Bolt-on |
| Packaging | Individual or bulk |
Note: No welding required for installation. Use only with Volvo 5 Series teeth and 5P locking pins. Mounting bolts are not included - refer to OEM specifications for correct bolt size and torque values. Verify bucket edge hole pattern matches adapter before ordering.
