253-0064
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | 253-0064 (or 2530064) |
| Product Name | Corner Guard (Right Hand) |
| Product Type | Loader / LHD Bucket Wear Protection |
| Compatible Machine Models | Track Loaders: 963, 963B, 963C, 963D, 963K, 973, 973C, 973D, 973K LHD / Load Haul Dump: R1600H, R1700, R1700G, R1700 XE, R2900, R2900G, R2900 XE, R3000H |
| Position | Right Hand (RH) - Bucket Corner |
| Application | Protects the bucket corner from severe abrasion and impact |
| Single Weight | 17.7 kgs (39.0 lbs) |
| Material | High-strength, abrasion-resistant alloy steel |
| Attachment Method | Bolt-on / Weld-on (OEM specification) |
| Industry Focus | Underground Mining, Load Haul Dump (LHD), Track Loader Operations, Construction |
Caterpillar 253-0064 corner guard
963D bucket corner guard
R1700G RH corner guard
2530064 LHD wear protection
17.7 kg bucket corner guard
CAT R2900G corner guard RH
973C bucket corner protector
Underground mining bucket wear parts

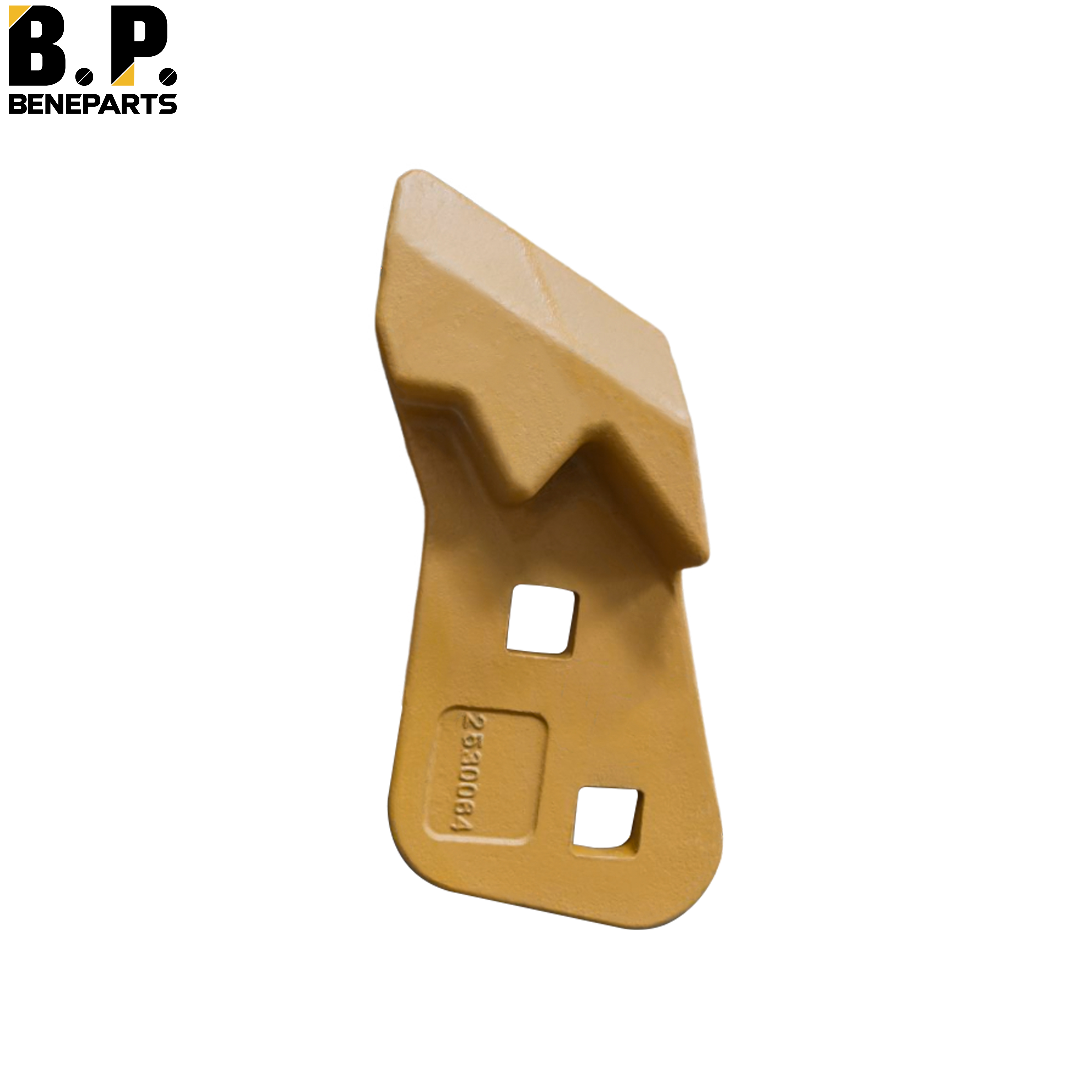

The Caterpillar 253-0064 Corner Guard (Right Hand) is a genuine OEM-specification ground engaging tool designed for Caterpillar track loaders and R-series LHD (Load Haul Dump) machines. This right-hand corner guard provides essential wear protection to the bucket corner, shielding it from severe abrasion and impact during loading operations.
The 963/973 series track loaders and R-series LHDs are used in underground mining, construction, and material handling applications. This corner guard is manufactured from high-strength, abrasion-resistant alloy steel to withstand demanding conditions.
| Feature | Benefit |
|---|---|
| Right-Hand Corner Design | Specifically engineered for the right-hand corner of the bucket |
| Abrasion-Resistant Alloy Steel | Maximum durability in severe operating conditions |
| Lightweight Construction (17.7 kg) | Easy handling during installation |
| Multi-Model Compatibility | Fits both track loaders and LHD machines |
| Direct OEM Replacement | Guaranteed fit and performance |
| Extended Bucket Life | Protects critical bucket corner structure from wear |
| Machine Model | Type | Application |
|---|---|---|
| 963, 963B, 963C, 963D, 963K | Track Loader | Construction, material handling |
| 973, 973C, 973D, 973K | Track Loader | Construction, material handling |
| R1600H, R1700, R1700G, R1700 XE | LHD | Underground mining |
| R2900, R2900G, R2900 XE | LHD | Underground mining |
| R3000H | LHD | Underground mining |
| Application | Description |
|---|---|
| Underground Mining | Ore and waste material loading |
| Load Haul Dump | Material handling operations |
| Construction | General earthmoving and loading |
| Material Handling | Stockpile and aggregate loading |
| Component | Description |
|---|---|
| Left-Hand Corner Guard | 253-0065 (counterpart) |
| Lip Shrouds | Bucket lip protection |
| Cutting Edges | Bucket cutting edge protection |
Position: This is a right-hand corner guard - installs on right-hand corner of bucket
Lifting Note: At 17.7 kg, can be handled by one person with proper technique
Attachment: Follow Caterpillar OEM specifications for welding or bolting
Regular Inspection: Check for wear, cracks, and loose attachment periodically
Replacement: Replace when worn beyond OEM specifications to protect bucket corner structure
Pair Replacement: Consider replacing left and right corner guards simultaneously for balanced protection
| Condition | Action |
|---|---|
| New guard - full profile | Normal operation |
| Moderate wear | Monitor regularly |
| Excessive wear (thinning or holes) | Replace guard |
| Cracks or deformation | Replace immediately |
| Loose attachment | Retighten or re-weld |
| Item | Detail |
|---|---|
| Part Number | 253-0064 / 2530064 |
| Type | Corner Guard (Right Hand) |
| Weight | 17.7 kg per piece |
| Compatibility | CAT 963/973 Series Track Loaders, R-Series LHD |
| Packaging | Individual box |
Note: This is a right-hand corner guard for Caterpillar track loaders and R-series LHD machines. Verify machine model and bucket configuration before ordering. For complete corner protection, pair with the left-hand corner guard (253-0065). Due to weight (17.7 kg), proper lifting techniques are recommended during installation.
