15AMXL
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | 15AMXL (also VOE 11417127) |
| Product Name | Loader Extreme Abrasion Resistant Tooth |
| Product Type | Wheel Loader Bucket Tooth / Ground Engaging Tool (GET) |
| Compatible Machine Models | Volvo L90 Series Wheel Loader |
| Application | Extreme abrasive material handling and severe wear conditions |
| Design | Abrasion Material Xtra Life (AMXL) |
| Single Weight | 5.0 kgs (11.0 lbs) |
| Material | High-hardness, extreme abrasion-resistant alloy steel (~500 HB) |
| Compatible Adapter System | Volvo 15 Series |
| Compatible Pin | 15P (Locking pin for secure attachment) |
| Industry Focus | High-volume aggregate, Sand and gravel, Heavy quarrying, Mining support, Recycling |
| OEM Interchangeability | Direct replacement for Volvo OEM tooth |
Volvo 15AMXL bucket tooth
VOE 11417127 extreme abrasion tooth
L90 wheel loader bucket teeth
15 series Volvo AMXL tooth
5.0 kg loader tooth
Replacement tooth for Volvo L90 loader
15P locking pin for Volvo tooth
Volvo extreme abrasion resistant bucket tooth L90
15AMXL loader abrasion teeth
Extra life wear tooth for L90

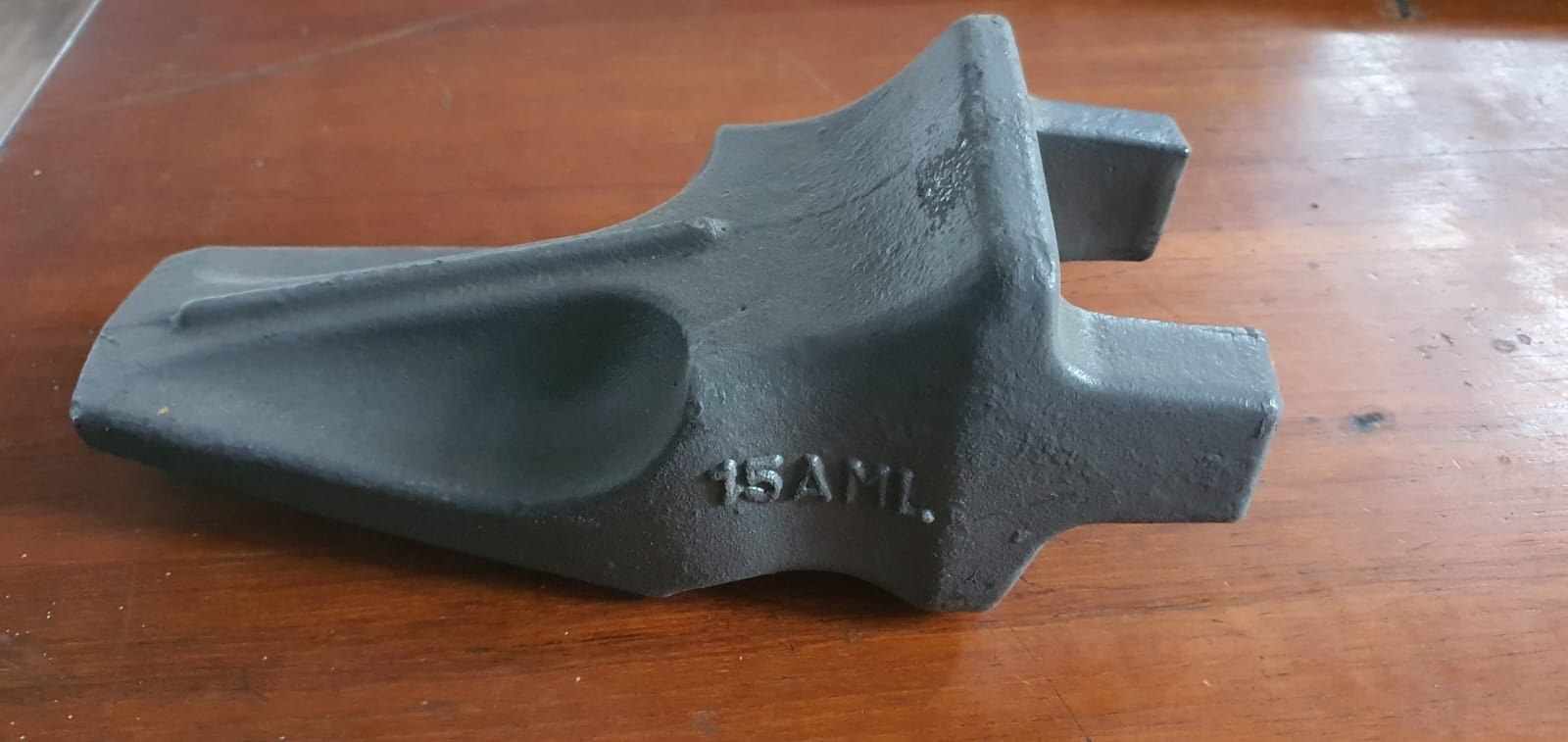

The Volvo 15AMXL Loader Extreme Abrasion Resistant Tooth (Part No. VOE 11417127) is a genuine OEM-specification ground engaging tool designed specifically for the Volvo L90 series wheel loaders. Engineered as part of the Volvo 15 Series tooth system, this AMXL (Abrasion Material Xtra Life) tooth represents the highest level of abrasion resistance in the Volvo tooth family, optimized for extreme abrasive material handling where maximum wear life is critical.
The AMXL profile features significantly enhanced wear material in high-abrasion areas, providing superior service life compared to standard AML (Abrasion Material Loader) and GPL (General Purpose Loader) teeth. This tooth is specifically designed for operators who work exclusively in highly abrasive conditions where wear resistance is the primary concern and extended service intervals are required.
| Feature | Benefit |
|---|---|
| Extreme Abrasion Material Loader (AMXL) Profile | Superior wear resistance for the most abrasive materials |
| Maximum Wear Material Volume | Significantly extra thickness in high-abrasion areas for maximum service life |
| High-Hardness Alloy Steel (~500 HB) | Exceptional wear resistance in sandy and granular materials |
| Volvo 15 Series System | Perfect fit and maximum performance with Volvo adapters |
| Strategically Placed Wear Material | Concentrates extreme abrasion-resistant steel in critical wear zones |
| Compatible with 15P Locking Pin | Easy, hammer-less installation with Volvo's vertical locking device |
| Self-Sharpening Design | Maintains penetration capability throughout the extended life of the tooth |
| Extended Service Intervals | Less frequent tooth changes, reduced downtime |
| Tooth Type | Wear Resistance | Penetration | Best Application | Relative Life |
|---|---|---|---|---|
| GPL | Good | Best | General purpose, mixed materials | Baseline |
| AML | Better | Good | Abrasive materials, sand, gravel | Up to 30-50% longer than GPL |
| AMXL | Best | Good | Extreme abrasion, high-volume sand/gravel | Up to 60-80% longer than GPL |
| Equipment Class | Typical Applications |
|---|---|
| Volvo L90 Wheel Loader | High-volume sand and gravel, severe quarry support |
| Construction | Continuous abrasive material handling |
| Recycling | Heavy recycled aggregate processing |
| General Applications | Any application with extreme abrasive wear conditions |
The 15AMXL tooth is specifically matched to Volvo L90 series wheel loaders, including:
Volvo L90
Volvo L90B
Volvo L90C
Volvo L90D
Volvo L90E
Volvo L90F
Volvo L90Gz (G series)
Volvo L90H
Volvo L90 Electric
The L90 series features an operating weight of approximately 14,500–17,300 kg with bucket capacities ranging from 2.1 m³ to 7.0 m³ depending on configuration.
| Condition | Recommended Tooth |
|---|---|
| Extreme abrasion, maximum wear life required | 15AMXL |
| Highly abrasive materials (sand, gravel, crushed stone) | 15AML |
| Mixed materials with moderate abrasion | 15GPL |
| Rock and impact applications | 15AMRL |
Adapter Compatibility: Install on Volvo 15 Series adapter only
Pin Installation: Use correct 15P locking pin; vertical locking device enables fast, hammerless installation
Regular Inspection: Check tooth wear periodically despite extended life; plan replacement intervals
Application Selection: For extreme abrasion applications only; not recommended for high-impact or rock work
Complete System: Replace all teeth as a set for even wear and consistent bucket fill
Maximum Extended Wear Life: Up to 60-80% longer life than GPL teeth in extreme abrasive applications
Reduced Downtime: Fewer tooth changes means less machine downtime and higher productivity
Lower Operating Costs: Extended service intervals reduce labor costs and parts consumption
Volvo Genuine Quality: Manufactured to exact OEM specifications for perfect fit and performance
Versatile Compatibility: Fits all Volvo 15 Series adapters across L90 models
Field Proven: Tested and validated in the most demanding high-volume aggregate and sand applications worldwide
| Item | Detail |
|---|---|
| Part Number | 15AMXL / VOE 11417127 |
| Type | Abrasion Material Xtra Life (AMXL) |
| Series | 15 Series Volvo Tooth System |
| Weight | 5.0 kg per piece |
| Pin Required | 15P (order separately) |
| Packaging | Individual pieces or bulk |
Note: Must be used with Volvo 15 Series adapter and 15P locking pin. For general abrasive applications (sand, gravel), 15AML may provide sufficient wear life at lower cost. For rock applications, consider 15AMRL. For general purpose, consider 15GPL. Always replace the retaining pin when installing new teeth for optimal retention and safety.
