11417126
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | 15AML (also VOE 11417126) |
| Product Name | Loader Abrasion Resistant Tooth |
| Product Type | Wheel Loader Bucket Tooth / Ground Engaging Tool (GET) |
| Compatible Machine Models | Volvo L90 Series Wheel Loader |
| Application | Abrasive material handling and high-wear conditions |
| Design | Abrasion Material Loader (AML) |
| Single Weight | 4.3 kgs (9.5 lbs) |
| Material | High-hardness, abrasion-resistant alloy steel |
| Compatible Adapter System | Volvo 15 Series |
| Compatible Pin | 15P (Locking pin for secure attachment) |
| Industry Focus | Aggregate handling, Sand and gravel, Quarrying, Construction, Recycling |
| OEM Interchangeability | Direct replacement for Volvo OEM tooth |
Volvo 15AML bucket tooth
VOE 11417126 abrasion tooth
L90 wheel loader bucket teeth
15 series Volvo AML tooth
4.3 kg loader tooth
Replacement tooth for Volvo L90 loader
15P locking pin for Volvo tooth
Volvo abrasion resistant bucket tooth L90
15AML loader abrasion teeth

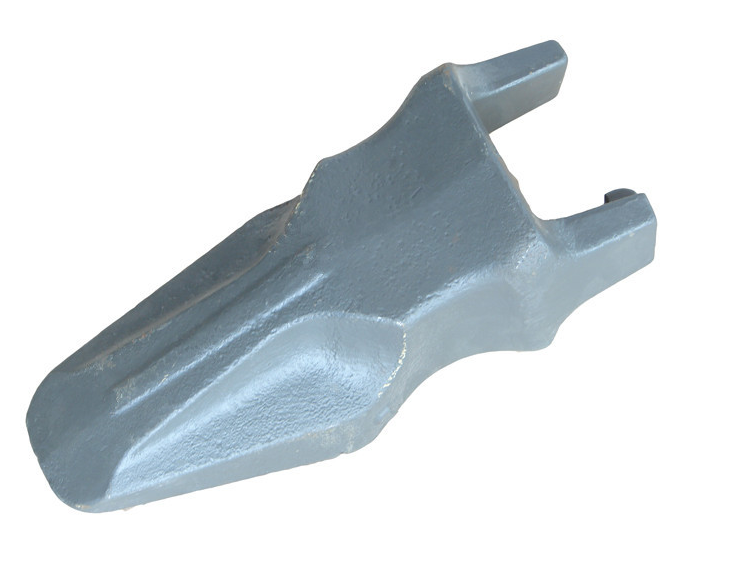

The Volvo 15AML Loader Abrasion Resistant Tooth (Part No. VOE 11417126) is a genuine OEM-specification ground engaging tool designed specifically for the Volvo L90 series wheel loaders. Engineered as part of the Volvo 15 Series tooth system, this AML (Abrasion Material Loader) tooth is optimized for handling highly abrasive materials such as sand, gravel, crushed stone, and recycled materials.
The AML profile features enhanced wear material in high-abrasion areas, providing extended service life compared to standard GPL (General Purpose Loader) teeth in abrasive applications. This tooth is specifically designed for operators who work primarily in sandy, granular, or highly abrasive conditions where wear resistance is the primary concern.
| Feature | Benefit |
|---|---|
| Abrasion Material Loader (AML) Profile | Optimized for highly abrasive materials: sand, gravel, crushed stone, recycled aggregates |
| Enhanced Wear Material | Extra thickness in high-abrasion areas for extended service life |
| High-Hardness Alloy Steel | Excellent wear resistance in sandy and granular materials |
| Volvo 15 Series System | Perfect fit and maximum performance with Volvo adapters |
| Strategically Placed Wear Material | Concentrates abrasion-resistant steel in critical wear zones |
| Compatible with 15P Locking Pin | Easy, hammer-less installation with Volvo's vertical locking device |
| Self-Sharpening Design | Maintains penetration capability throughout the life of the tooth |
| Equipment Class | Typical Applications |
|---|---|
| Volvo L90 Wheel Loader | Sand and gravel handling, quarry support, aggregate loading |
| Construction | Foundation work, granular fill, site preparation |
| Recycling | Crushed concrete, asphalt millings, recycled aggregate |
| General Applications | Abrasive material loading, stockpile reclamation |
The 15AML tooth is specifically matched to Volvo L90 series wheel loaders, including:
Volvo L90
Volvo L90B
Volvo L90C
Volvo L90D
Volvo L90E
Volvo L90F (production years 2007–2023)
Volvo L90Gz (G series)
Volvo L90H
Volvo L90 Electric
The L90 series features an operating weight of approximately 14,500–17,300 kg and a standard bucket capacity ranging from 2.1 m³ to 7.0 m³ depending on configuration.
| Condition | Recommended Tooth |
|---|---|
| Highly abrasive materials (sand, gravel, crushed stone) | 15AML |
| Mixed materials with moderate abrasion | 15GPL |
| General purpose with minimal abrasion | 15GPL |
| Rock and impact applications | 15AMRL |
Adapter Compatibility: Install on Volvo 15 Series adapter only
Pin Installation: Use correct 15P locking pin; vertical locking device enables fast, hammerless installation
Regular Inspection: Check tooth wear periodically; replace when significant wear occurs
Application Selection: For general purpose applications with less abrasion, consider 15GPL
Complete System: Replace all teeth as a set for even wear and consistent bucket fill
| Comparison | 15AML vs 15GPL |
|---|---|
| Wear Resistance | Higher (optimized for abrasion) |
| Penetration | Good (slightly less than GPL) |
| Best Application | Sand, gravel, crushed stone |
| Service Life | Longer in abrasive conditions |
Extended Wear Life: Up to 30-50% longer life than GPL teeth in highly abrasive materials
Volvo Genuine Quality: Manufactured to exact OEM specifications for perfect fit and performance
Cost-Effective: Reduced downtime and lower operating costs in abrasive applications
Versatile Compatibility: Fits all Volvo 15 Series adapters across L90 models
| Item | Detail |
|---|---|
| Part Number | 15AML / VOE 11417126 |
| Type | Abrasion Material Loader (AML) |
| Series | 15 Series Volvo Tooth System |
| Weight | 4.3 kg per piece |
| Pin Required | 15P (order separately) |
| Packaging | Individual pieces or bulk |
Note: Must be used with Volvo 15 Series adapter and 15P locking pin. For general purpose applications in non-abrasive materials, consider 15GPL teeth. For rock applications, consider 15AMRL. Always replace the retaining pin when installing new teeth for optimal retention and safety.
