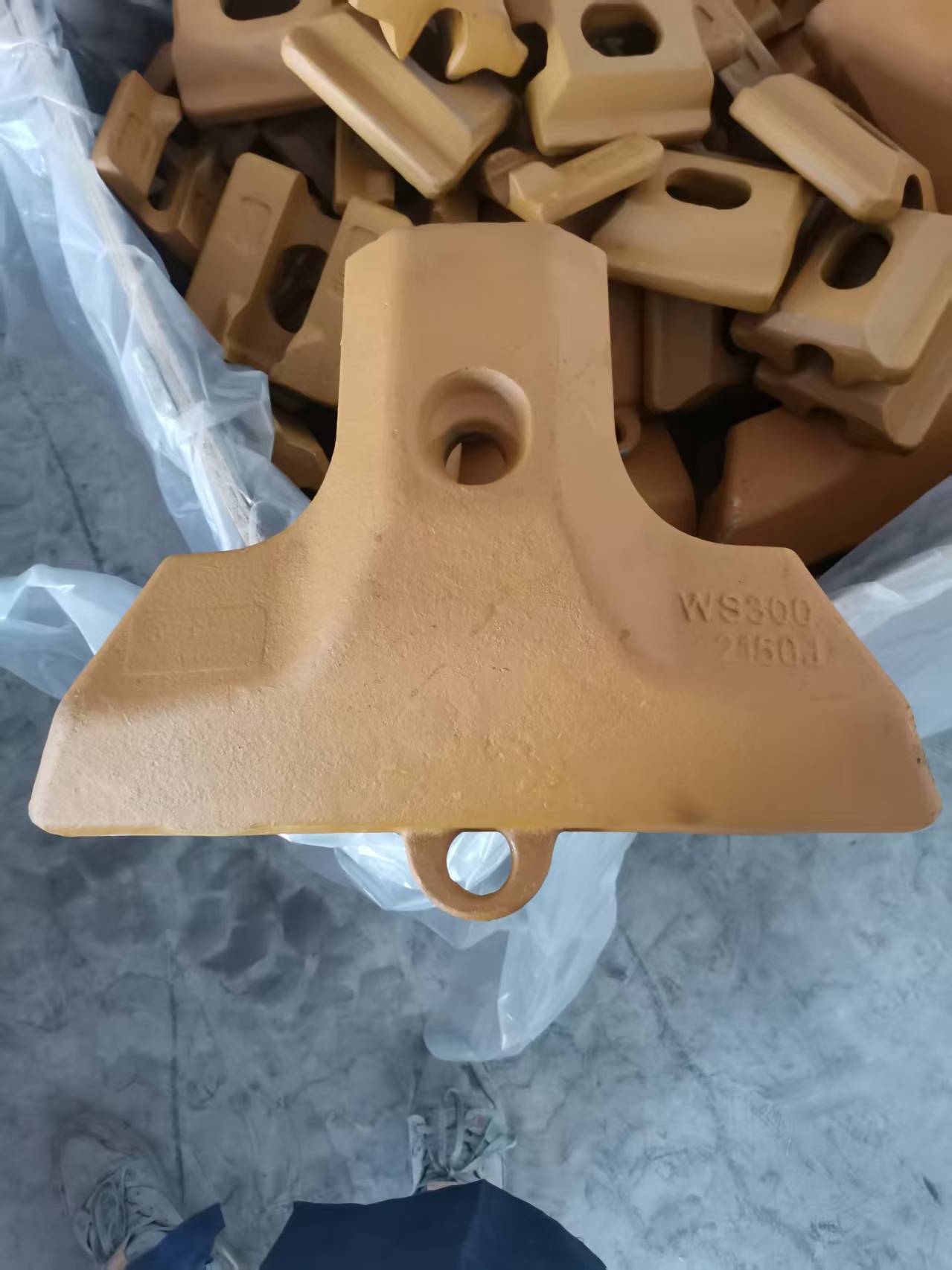

Product Specification: J-Bolt Wing (Vertical) Shroud
| Item | Specification | |
|---|---|---|
| Part Number | WS3002150J (Also referred to as: WS300-2150J) | |
| Product Name | J-Bolt Wing (Vertical) Shroud | |
| Product Type | Specialized Wear Protection for Bucket | |
| Compatible Machine Models | Hensley PC3000 (and other similar large excavators/face shovels) | |
| Application | Protects the bucket wing from severe abrasion and impact in heavy-duty mining and excavation. | |
| Design Feature | Vertical J-Bolt Attachment | |
| Dimension A | 21.5 in | 546 mm |
| Dimension B | 6.5 in | 165 mm |
| Dimension C | 13.5 in | 343 mm |
| Dimension D | 3.1 in | 79 mm |
| Dimension E | 3.2 in | 81 mm |
| Dimension F | 4.0 in | 102 mm |
| Single Weight | 140.0 lb | 63.5 kg |
Note:
This shroud is part of the Hensley J-Bolt Wing (Vertical) Shrouds product line, designed for extreme service protection of loader, excavator, and face shovel buckets.
The vertical J-bolt design allows for secure attachment and easy replacement in the field.
Please verify the exact compatibility with your specific bucket model and configuration before installation.
