Product Specification: VERTICAL Edge/Sidebar Protector
| Item | Specification | |
|---|---|---|
| Part Number | VS500 | |
| Product Name | VERTICAL Edge/Sidebar Protector | |
| Product Type | Bucket Edge & Sidebar Protection | |
| Brand/Line | Hensley | |
| Application | Protects the bucket edge and sidebar from severe abrasion and impact. | |
| Single Weight | 66.0 lb | 30.0 kg |

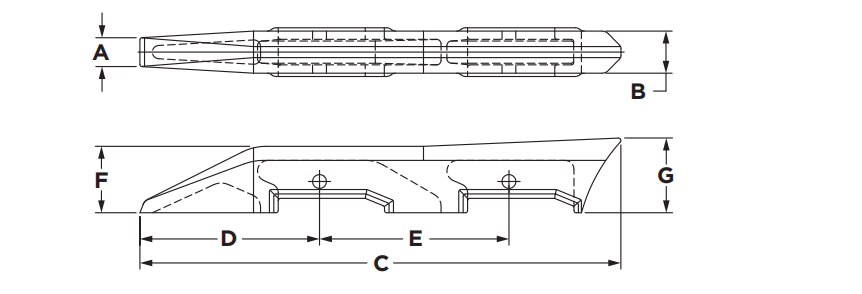

| Dimension A | 2.5 in | 64 mm |
| Dimension B | 3.4 in | 87 mm |
| Dimension C | 32.9 in | 835 mm |
| Dimension D | 10.1 in | 257 mm |
| Dimension E | 16.0 in | 406 mm |
| Dimension F | 3.7 in | 93 mm |
| Dimension G | 4.6 in | 117 mm |
