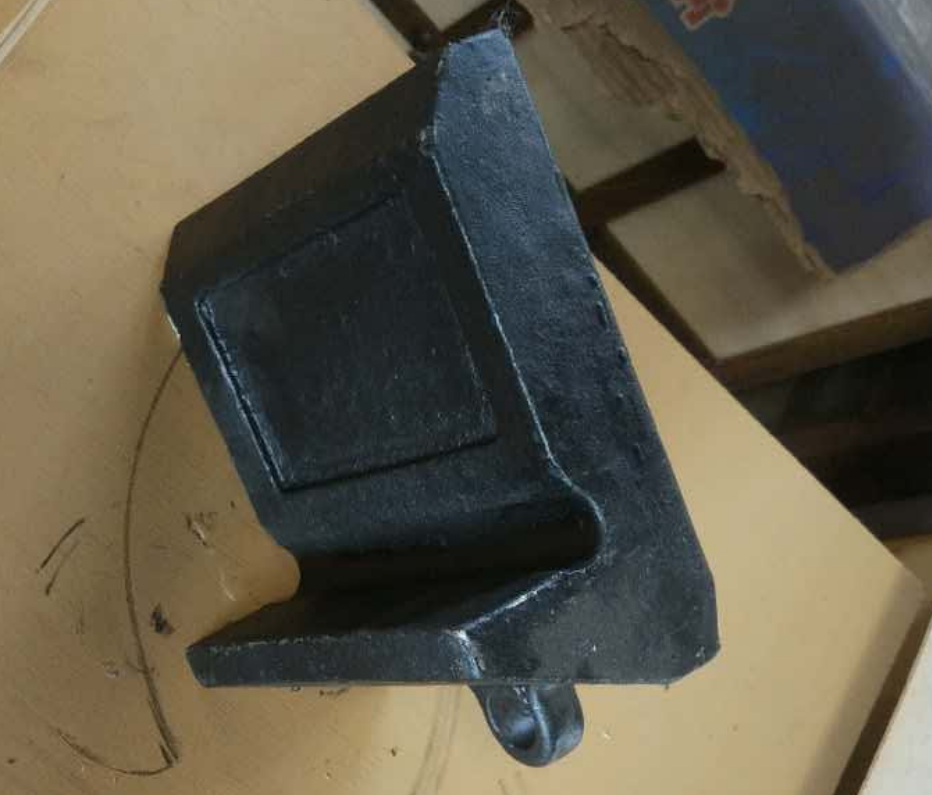

Product Specification: Heel Shroud/Protector for Bucket
| Item | Specification |
|---|---|
| Part Number | ES6697 |
| Product Name | Heel Shroud / Heel Protector |
| Product Type | Bucket Heel Protection |
| Application | Mining |

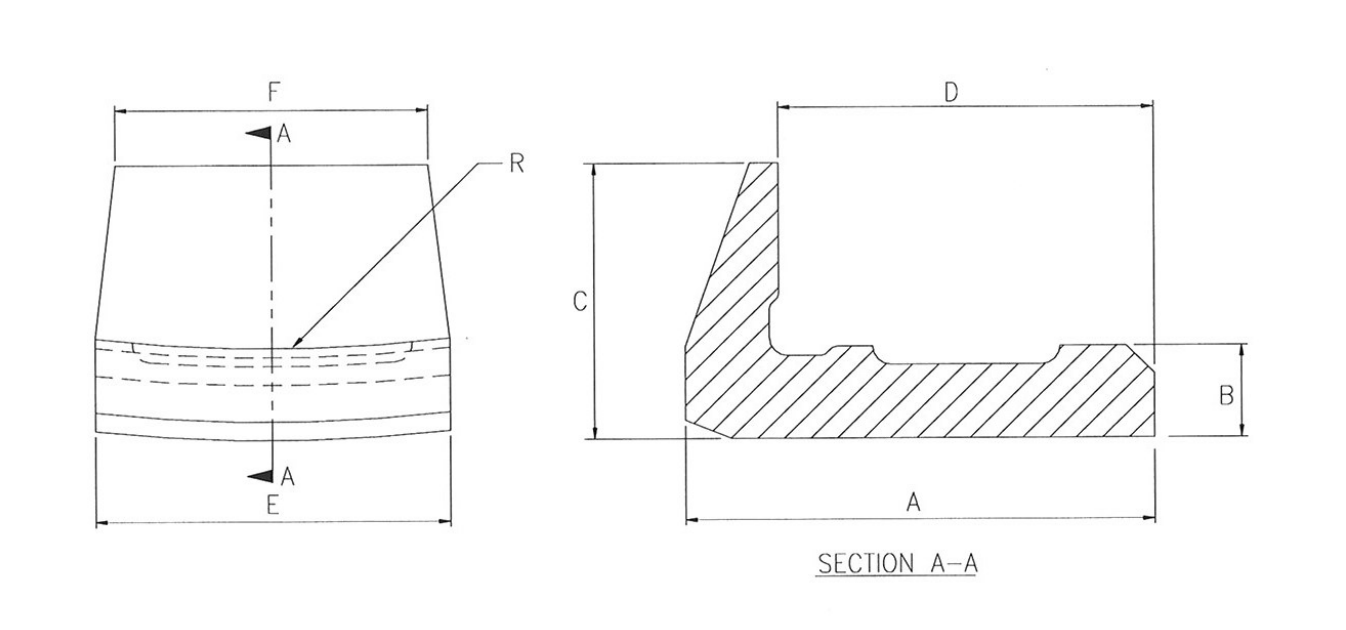

| Dimension A | 240 mm |
| Dimension B | 50 mm |
| Dimension C | 100 mm |
| Dimension D | 150 mm |
| Dimension E | 165 mm |
| Dimension F | 165 mm |
| Single Weight | 18 kgs |
Note:
This heel shroud/protector is designed to protect the bucket heel from severe abrasion and impact in mining applications.
The design provides comprehensive coverage and protection for the bucket's rear wear area.
Please verify the exact compatibility with your specific bucket model and configuration before installation.
If you need specification sheets for other related bucket wear parts, please feel free to let us know.
