Product Specification: Wing / Side Protector
| Item | Specification |
|---|---|
| Part Number | ES6553 |
| Product Name | Wing / Side Protector |
| Product Type | Bucket Wing/Side Wear Protection |
| Gap | 80 - 90 mm |
| Application | Protects the bucket wing/side from severe abrasion and impact. |
| Single Weight | 70 kgs |
ES6553 wing protector
Bucket side protector
70 kg wing shroud
80-90mm gap side protector
Mining bucket wing guard
Excavator side wear protection
Replacement wing protector
Bucket side shroud

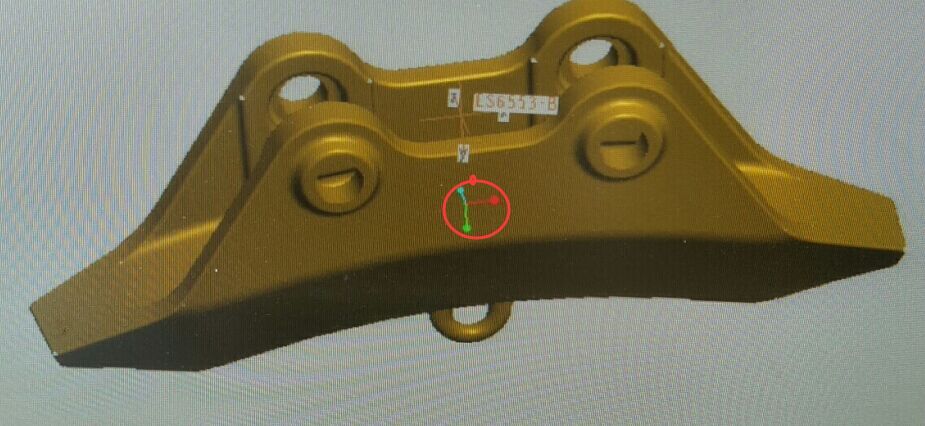

The ES6553 Wing Protector (Side Protector) is a genuine OEM-specification ground engaging tool designed to protect the bucket wing / side wall from severe abrasion and impact in mining and heavy excavation applications. This side protector shields the critical wing area of the bucket, extending overall bucket service life.
Designed with a specified installation gap of 80-90mm, this wing protector is manufactured from high-strength, abrasion-resistant alloy steel to withstand the most demanding conditions in surface mining, quarrying, and heavy excavation operations.
| Feature | Benefit |
|---|---|
| Wing / Side Protector Design | Specifically engineered for bucket wing protection |
| 80-90mm Gap Specification | Designed for proper installation fit |
| Abrasion-Resistant Alloy Steel | Maximum durability in severe conditions |
| Heavy-Duty Construction (70 kg) | Robust build for demanding applications |
| Direct OEM Replacement | Guaranteed fit and performance |
| Extended Bucket Life | Protects critical bucket wing structure from wear |
Position: Installs on the bucket wing / side wall
Gap: 80-90mm specified gap for proper installation
Lifting Requirement: Due to weight (70 kg), proper lifting techniques and mechanical assistance are recommended
Attachment: Follow OEM specifications for welding or bolting
Regular Inspection: Check for wear, cracks, and loose attachment periodically
Replacement: Replace when worn beyond OEM specifications to protect bucket structure
| Condition | Action |
|---|---|
| New protector - full profile | Normal operation |
| Moderate wear | Monitor regularly |
| Excessive wear (holes or thinning) | Replace protector |
| Cracks or deformation | Replace immediately |
| Loose attachment | Retighten or re-weld |
| Item | Detail |
|---|---|
| Part Number | ES6553 |
| Type | Wing Protector / Side Protector |
| Gap | 80 - 90 mm |
| Weight | 70 kg per piece |
| Packaging | Individual crate |
Note: This is a wing protector (side protector) for mining and heavy excavation equipment. Verify bucket model and gap configuration before ordering. Due to weight (70 kg), proper lifting techniques and mechanical assistance are recommended during installation. Regular inspection and timely replacement are essential to protect the bucket structure from premature wear.
