457-9635
| Availability: | |
|---|---|

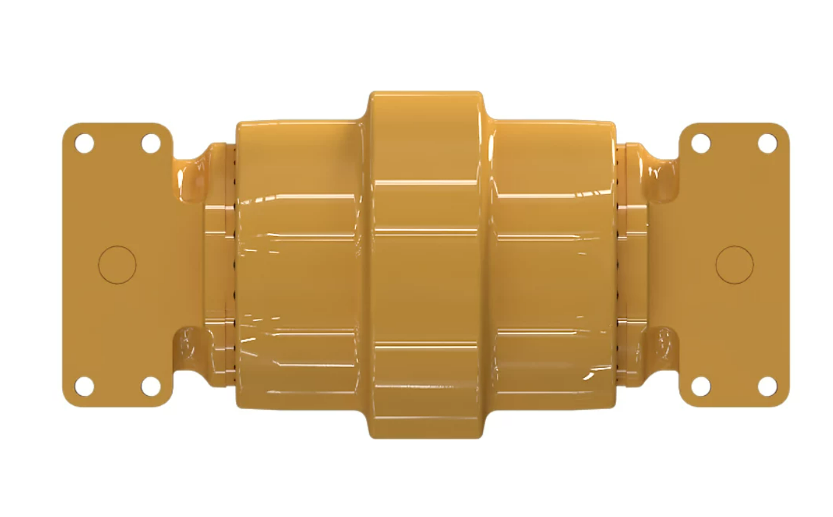

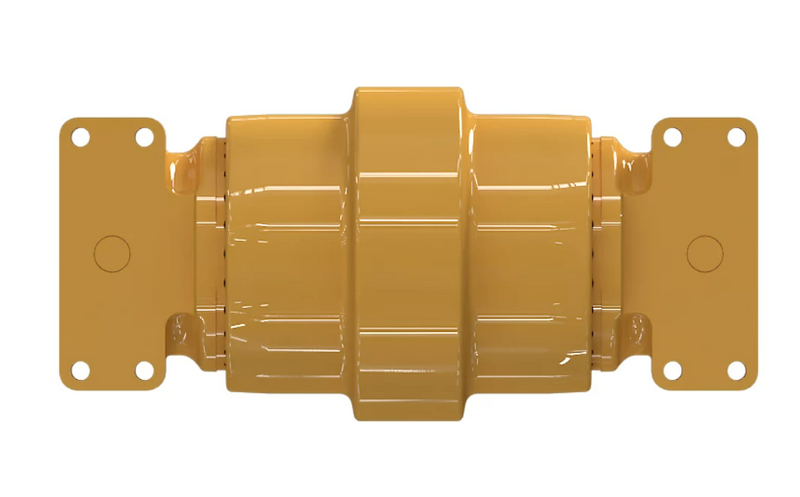

Product Specification: Track Single Flange Roller
| Item | Specification |
|---|---|
| Part Number | 457-9635 (or 4579635) |
| Product Name | Track Single Flange Roller |
| Product Type | Undercarriage Component |
| Compatible Machine Models | Caterpillar 6060, 6060HD Hydraulic Mining Shovel |
| Application | Supports machine weight and guides track chain |
| UC System | Heavy Duty (HD) |
| Roller Type | Single Flange |
| Carrier Roller Compatible | No (This is a Bottom/Lower Track Roller) |
| Outside Diameter | 18.346 inches (466 mm) |
| Hub Width | 16.614 inches (422 mm) |
| Hub Diameter | 14.803 inches (376 mm) |
| Bushing Bearing Inner Diameter | 7.092 inches (180.1 mm) |
| Bore Diameter | 7.092 inches (180.1 mm) |
| Mounting Bolt Axial Spacing | 24.472 inches (621.6 mm) |
| Mounting Bolt Traverse Spacing | 9.849 inches (250.2 mm) |
| Material | High-strength alloy steel with sealing system |
Note:
This single flange track roller is a critical load-bearing component for the Caterpillar 6060 and 6060HD ultra-class hydraulic mining shovels.
The single flange design provides track guidance while reducing weight compared to double flange configurations.
Supports machine weight and guides the track chain during travel and operation.
Features precision-machined bearing surfaces with hardened tread for maximum wear resistance in severe mining conditions.
Specific mounting bolt spacing (axial: 24.472 inches / 621.6 mm; traverse: 9.849 inches / 250.2 mm) ensures proper installation.
Equipped with advanced sealing systems to prevent contamination and retain lubrication, ensuring extended service life.
Manufactured from high-strength alloy steel for maximum durability in abrasive mining environments.
Due to its size and weight (estimated 400-500 kg), proper lifting equipment and installation procedures are required.
Please verify exact compatibility with your specific machine serial number and undercarriage configuration before installation.
If you need specification sheets for other undercarriage components (carrier rollers, idlers, sprockets, track shoes), please feel free to let us know.
