512-0710
| Availability: | |
|---|---|

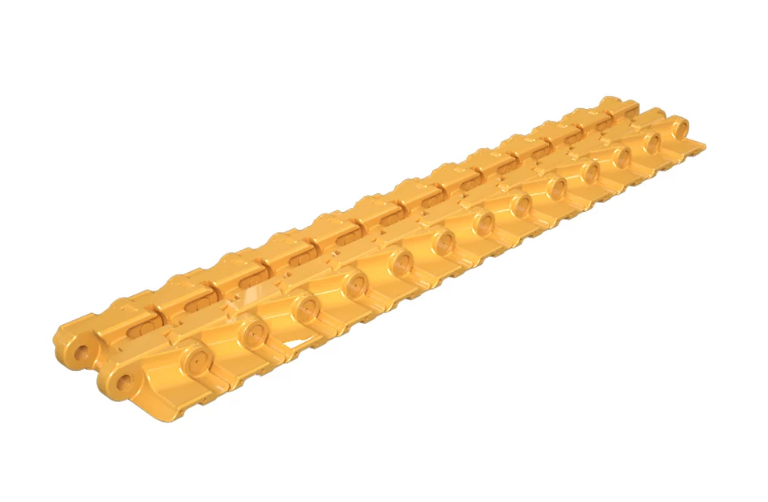

Product Specification: Track Group Segment with Snap Ring
| Item | Specification |
|---|---|
| Part Number | 512-0710 |
| Product Name | Track Group Segment with Snap Ring |
| Product Type | Undercarriage Component - Track Group |
| Compatible Machine Models | Caterpillar 6060 HD Hydraulic Mining Shovel |
| Application | Complete track assembly for ultra-class mining shovel |
| Number of Sections | 13 (Complete Track Group) |
| Track Pitch | 475 mm (18.70 inches) |
| Track Pad Width | 1400 mm (55.12 inches) |
| Segments Included | 13 complete segments with snap rings |
Note:
This complete track group segment assembly is designed for the Caterpillar 6060 HD ultra-class hydraulic mining shovel.
Consists of 13 segments forming a complete track group, including all necessary components (links, pins, bushings, and snap rings).
Features 475 mm track pitch and 1400 mm track pad width for exceptional stability and flotation in mining applications.
Snap ring design ensures secure retention of track components under extreme loads.
Manufactured from high-strength alloy steel for maximum durability in severe mining conditions.
Due to extreme size and weight (estimated 15,000+ kg total), specialized heavy transport equipment, lifting gear, and professional installation are mandatory.
Please verify exact compatibility with your specific machine serial number and undercarriage configuration before ordering.
If you need specification sheets for individual track components or other undercarriage parts, please feel free to let us know.
