465-8431

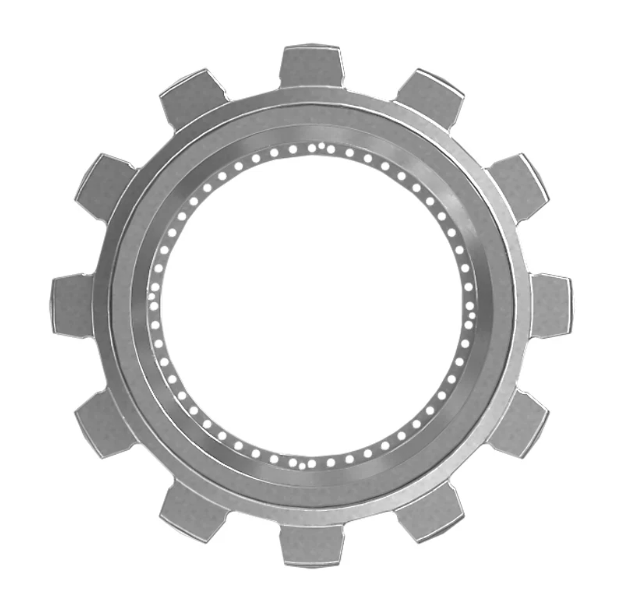

Product Specification: 465-8431 6060 6060 HD Sprocket
| Item | Specification |
|---|---|
| Part Number | 465-8431 (or 4658431) |
| Product Name | Sprocket |
| Product Type | Undercarriage Component |
| Compatible Machine Models | Caterpillar 6060, 6060HD Hydraulic Mining Shovel |
| Application | Drives the track chain for machine propulsion |
| Number of Teeth | 12 |
| Sprocket Engagement Type | Self-Seeking (Self-Cleaning) |
| Sprocket Pitch | 18.701 inches (475 mm) |
| Track Pitch | 18.701 inches (475 mm) |
| Sprocket Pitch Diameter | 67.559 inches (1,716 mm) |
| Tooth Width | 6.299 inches (160 mm) |
| Hub Width | 20.079 inches (510 mm) |
| Dimension A | 202 mm / 7.953 inches |
Note:
This sprocket is a critical drivetrain component for the Caterpillar 6060 and 6060HD ultra-class hydraulic mining shovels, designed to engage with the track bushings and provide propulsion.
Features 12-tooth configuration with precision-machined profiles for optimal engagement with the 18.701-inch pitch track chain.
The self-seeking (self-cleaning) design helps prevent material buildup between teeth, ensuring smooth engagement and reduced wear in muddy or debris-filled conditions.
Manufactured from high-strength alloy steel with induction-hardened teeth for maximum durability in severe mining applications.
Due to its size and weight (estimated over 1,500 kg), specialized heavy lifting equipment and strict installation procedures are mandatory.
Please verify exact compatibility with your specific machine serial number, track chain configuration, and undercarriage system before installation.
If you need specification sheets for other undercarriage components (track rollers, carrier rollers, idlers, track shoes), please feel free to let us know.
