492-5517
| Availability: | |
|---|---|

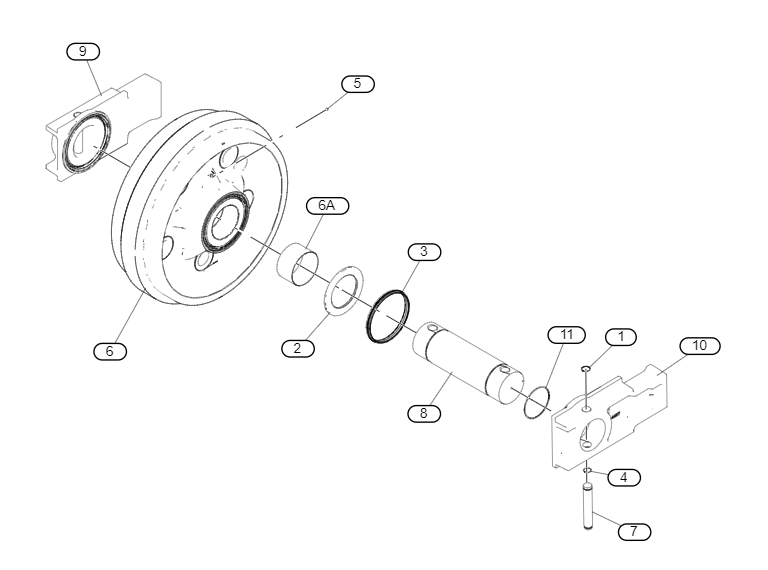

Product Specification: Idler Assembly
| Item | Specification |
|---|---|
| Part Number | 492-5517 (or 4925517) |
| Product Name | Idler Assembly |
| Product Type | Undercarriage Component |
| Compatible Machine Models | Caterpillar 6060, 6060HD Hydraulic Mining Shovel |
| Application | Guides and maintains proper tension of the track chain |
| Machine Side | Interchangeable (Fits Left or Right) |
| Tread Type | Conventional Tread |
| Tread Diameter | 58.484 inches (1,485 mm) |
| Center Flange Diameter | 63.465 inches (1,612 mm) |
| Center Flange Width | 7.559 inches (192 mm) |
| Idler Rim Width | 22.988 inches (584 mm) |
| Bearing Inner Diameter | 11.432 inches (290 mm) |
| Bore Diameter | 11.702 inches (297 mm) |
Note:
This idler assembly is a critical undercarriage component for the Caterpillar 6060 and 6060HD ultra-class hydraulic mining shovels, designed to guide the track chain and maintain proper track tension.
Features interchangeable design for use on either side of the machine, simplifying parts inventory and maintenance.
Conventional tread design with large center flange diameter (63.465 inches / 1,612 mm) for optimal track guidance.
The 22.988-inch (584 mm) rim width accommodates wide track shoes for excellent stability in mining applications.
Precision-machined bearing bore (11.702 inches / 297 mm) ensures proper fit and alignment.
Manufactured from high-strength alloy steel with hardened wear surfaces for maximum durability in severe mining conditions.
Due to its extreme size and weight (estimated 3,000+ kg), specialized heavy lifting equipment and strict installation procedures are mandatory.
Please verify exact compatibility with your specific machine serial number and undercarriage configuration before installation.
If you need specification sheets for other undercarriage components (track rollers, carrier rollers, sprockets, track shoes), please feel free to let us know.
