329-5957
Product Specification: Sidebar Protector

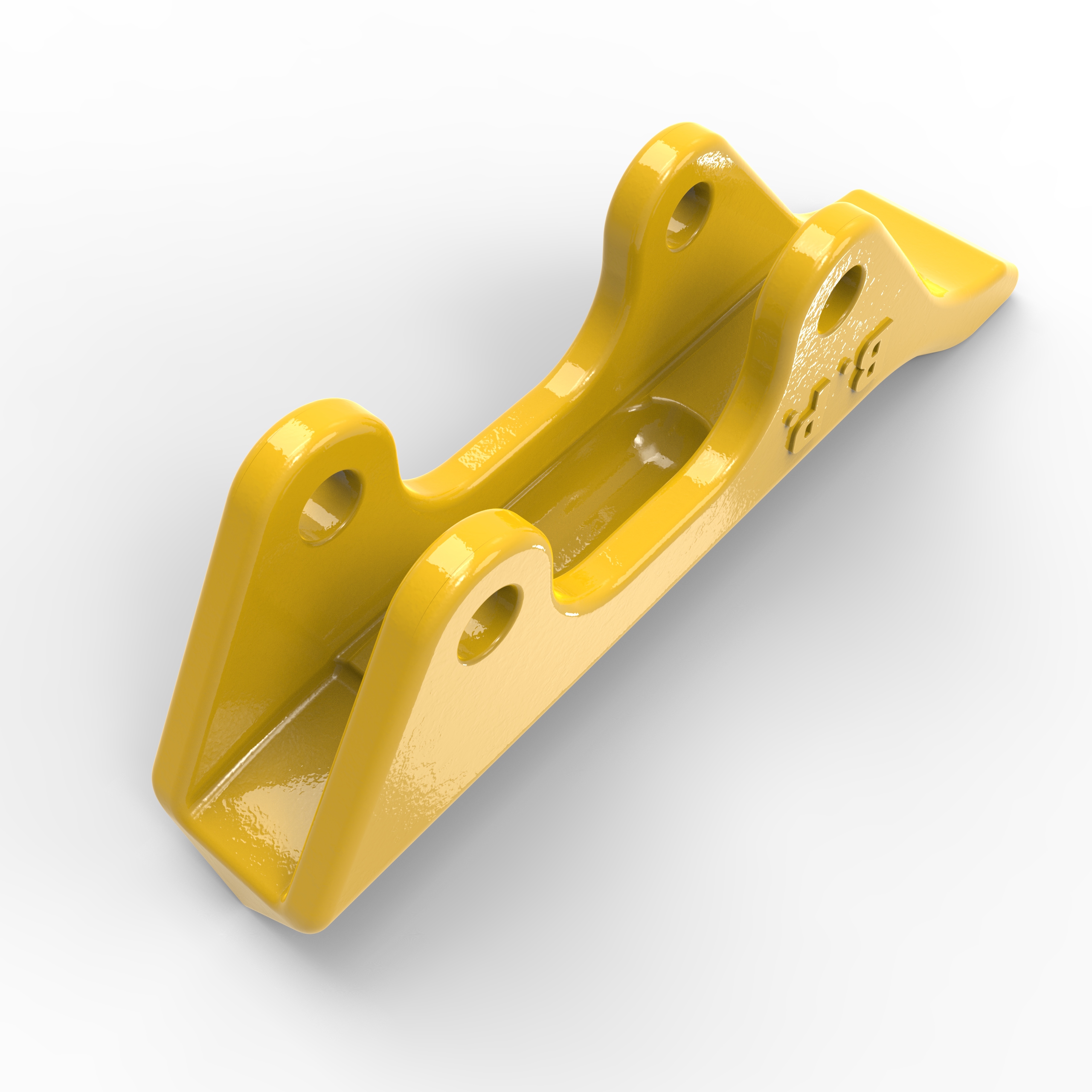

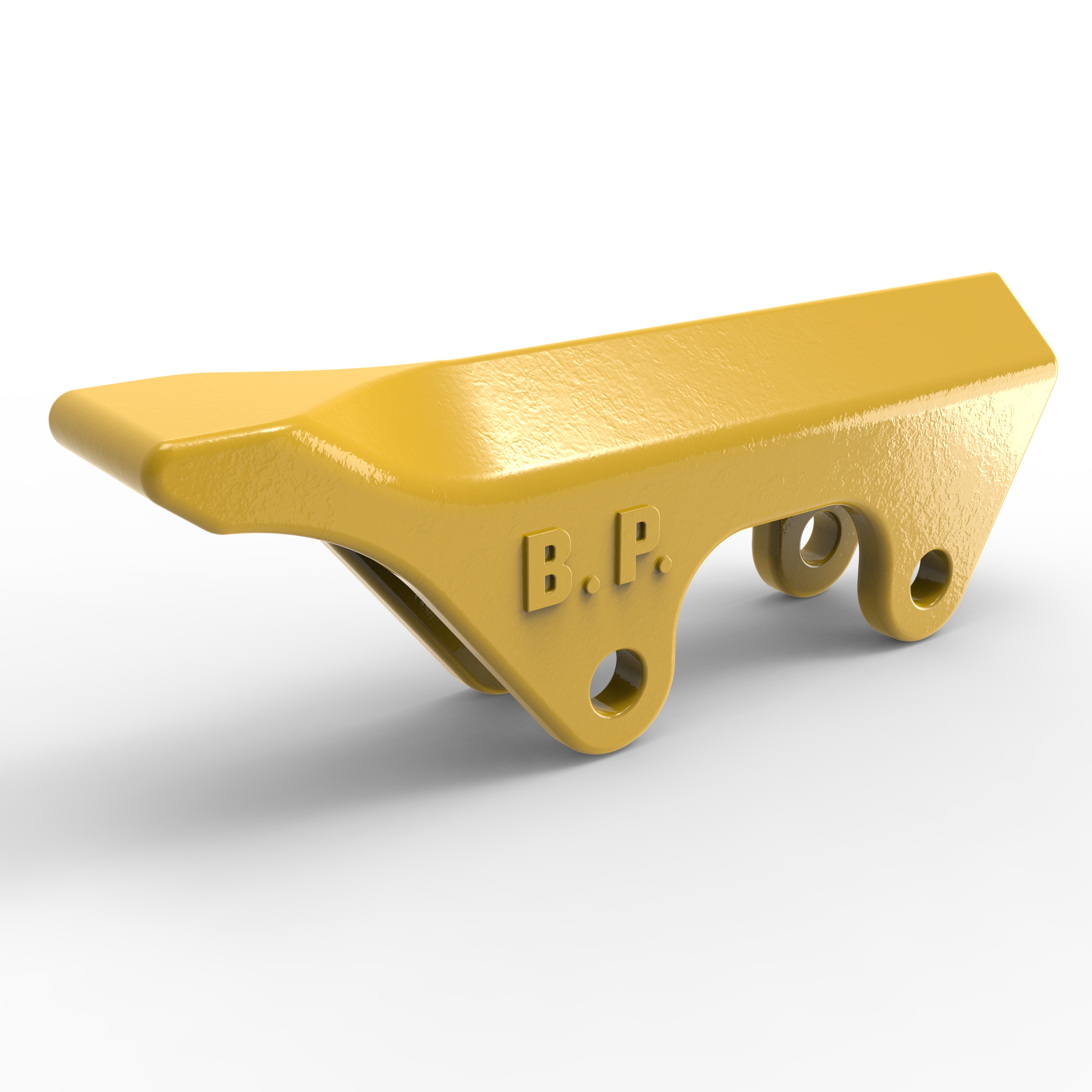

Product Specification: Pin-On Sidebar Protector
| Item | Specification |
|---|---|
| Part Number | 329-5957 |
| Product Name | Pin-On Sidebar Protector |
| Product Type | Bucket Sidebar Guard & Protector |
| Compatible Machine Models | Caterpillar 390 Series (e.g., 390D 390D L 390F 390F L 395) |
| Application | Protects the bucket sidebar from wear and impact during loading operations. |
| Dimension A (Length) | 662 mm |
| Dimension B (Hole Spacing) | 180 mm |
| Dimension C (Width) | 65 mm |
| Single Weight | 33 kgs |
| Associated Parts | Pin: 357-2689, Washer: 132-0999 |
Note:
This pin-on sidebar protector is designed to protect the bucket sidebar from excessive wear and impact during heavy-duty loading operations.
It must be used with the specified pin (357-2689) and washer (132-0999) for secure installation.
Please verify the exact compatibility with your specific machine and bucket configuration before installation.
Regular inspection of protectors is recommended for optimal performance and safety.
