Z7640300N0900V
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | Z7640300N0900V |
| Product Name | Track Shoe / Track Pad |
| Product Type | Undercarriage Component |
| Compatible Machine Models | Atlas Copco PV271 Drilling Rig / Epiroc (ITM Series) |
| Track Shoe Width | 900 mm (35.4 inches) |
| Material | High-strength alloy steel, heat-treated |
| Application | Provides traction and flotation for the drilling rig |
| Industry Focus | Underground Mining, Tunneling, Drilling Operations |

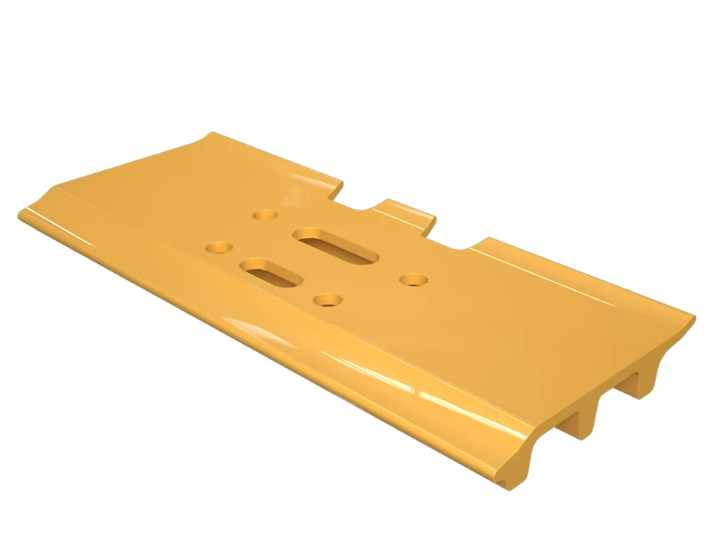

Atlas Copco Z7640300N0900V track shoe
PV271 900mm track shoe
PV271 track pad
Epiroc PV271 undercarriage parts
900mm track shoe for PV271
ITM PV271 track shoe
Replacement track shoe for Atlas Copco PV271 drilling rig
The Atlas Copco Z7640300N0900V Track Shoe is a genuine OEM-specification undercarriage component designed for the Atlas Copco PV271 drilling rig (now under Epiroc). This track shoe (track pad) attaches to the track link assembly to provide traction and flotation for the machine.
The 900mm width provides excellent stability and flotation in underground mining and tunneling conditions, distributing the machine's weight over a larger surface area to reduce ground pressure.
| Feature | Benefit |
|---|---|
| 900mm Width | Excellent stability and flotation in underground conditions |
| Heat-Treated Alloy Steel | Superior wear resistance and durability |
| PV271 Optimized | Specifically engineered for Atlas Copco/Epiroc PV271 drilling rig |
| Direct OEM Replacement | Guaranteed fit and performance |
| Heavy-Duty Construction | Designed for demanding underground mining applications |
| Specification | Detail |
|---|---|
| Machine Model | Atlas Copco PV271 / Epiroc PV271 |
| Series | ITM (Intelligent Tunnel & Mining) |
| Machine Type | Underground drilling rig |
| Track Shoe Width | 900 mm |
| Component | Part Number | Description |
|---|---|---|
| Track Link Assembly | 57910010 / EZ1356E0M00063U | Track chain (1,300 kg) |
| Track Shoe Assembly | 57909137 | Complete track assembly (3,420 kg) |
| Sprocket | 57735672 / R0130000M01 | Drive sprocket (85 kg) |
| Idler | 57719296 / P0130400M00U | Front idler (330 kg) |
| Top Roller | C0145100M00U | Carrier roller (40 kg) |
| Bottom Roller | A01450A0M00U | Single flange roller (82 kg) |
Attachment: Track shoes bolt onto the track link assembly
Bolt Torque: Follow OEM specifications for mounting bolt torque
Regular Inspection: Check for wear, cracks, and loose bolts periodically
Replacement: Replace when grouser height is worn beyond OEM specifications
Even Wear: Rotate shoes periodically if asymmetric wear occurs
| Condition | Action |
|---|---|
| New shoe - full grouser height | Normal operation |
| Moderate grouser wear | Monitor regularly |
| Excessive wear (reduced traction) | Replace shoe |
| Cracks or broken sections | Replace immediately |
| Loose bolts | Retorque immediately |
| Item | Detail |
|---|---|
| Part Number | Z7640300N0900V |
| Type | Track Shoe / Track Pad |
| Width | 900 mm |
| Compatibility | Atlas Copco PV271 / Epiroc PV271 |
| Packaging | Individual or bulk |
Note: This is a track shoe for the Atlas Copco/Epiroc PV271 drilling rig. Verify machine serial number and undercarriage configuration before ordering. Track shoes must be properly torqued to prevent loosening during operation. Multiple shoes are required per machine - consult your parts manual for quantity.
