| Item | Specification |
|---|---|
| Part Number | 57910010 |
| Alternative Part Number | EZ1356E0M00063U |
| Product Name | Track Link Assembly / Track Chain Assembly |
| Product Type | Undercarriage Component - Track Chain (Links, Pins & Bushings) |
| Compatible Machine Models | Atlas Copco PV271 Drilling Rig / Epiroc (ITM Series) |
| Track Type | Heavy-duty mining track (Links only - Shoes sold separately) |
| Total Assembly Weight | 1,300 kgs (2,866 lbs) |
| Application | Underground mining, tunneling, drilling rig mobility |
| Industry Focus | Underground Mining, Tunneling, Drilling Operations |
| Material | High-strength alloy steel, heat-treated |
Atlas Copco 57910010 track link assembly
PV271 track chain assembly
Epiroc PV271 undercarriage parts
EZ1356E0M00063U track link
1300 kg track link assembly
Replacement track chain for PV271
Atlas Copco ITM track links

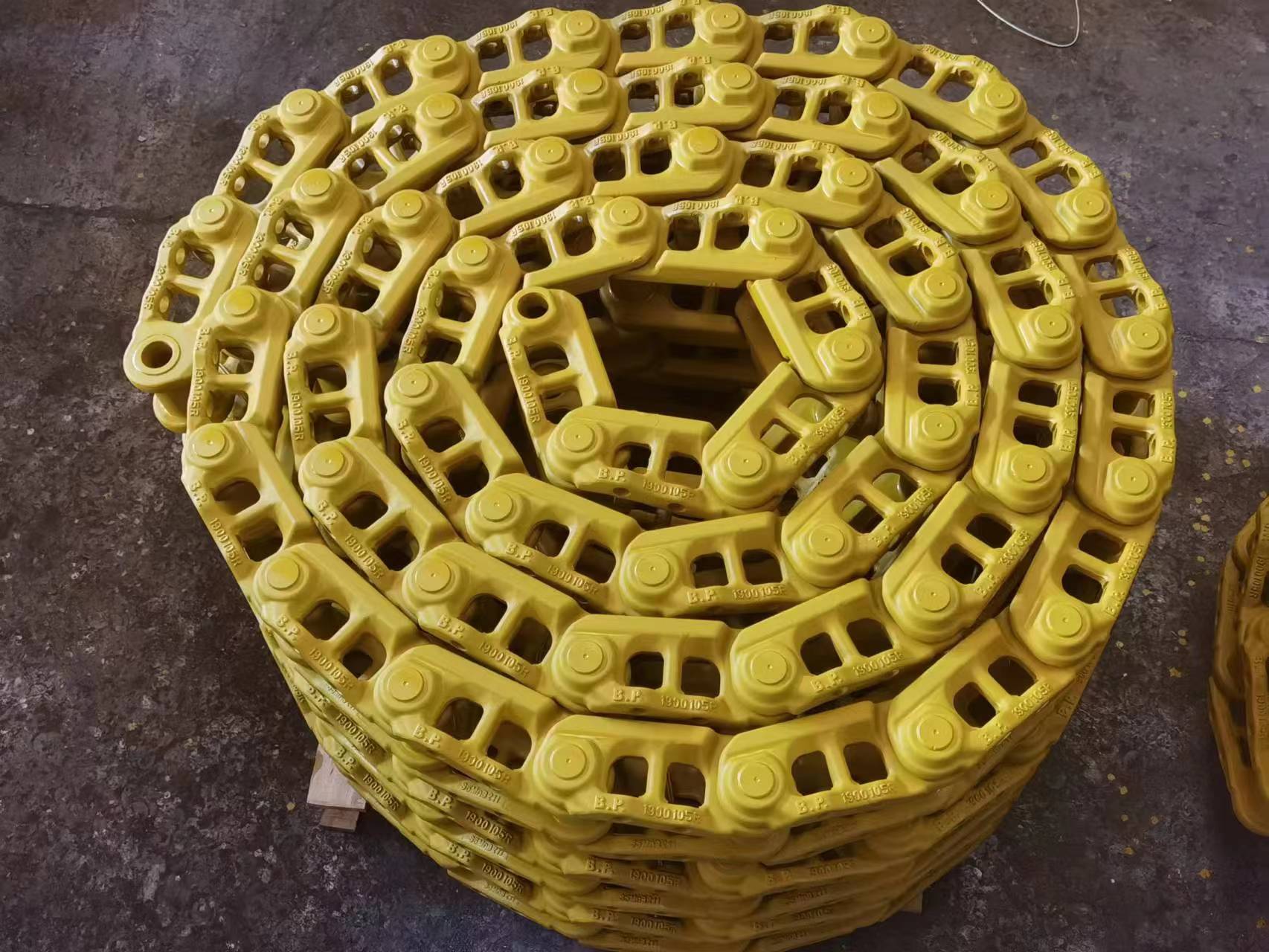

The Atlas Copco 57910010 Track Link Assembly (Track Chain Assembly) is a genuine OEM-specification undercarriage component designed for the Atlas Copco PV271 drilling rig (now under Epiroc). This assembly includes the track links, pins, and bushings that form the track chain, providing the foundation for the crawler track system.
Note: This is the track chain assembly only. Track shoes (pads) are sold separately and must be attached to complete the track system. This assembly provides the flexibility to use different shoe types for various ground conditions.
| Feature | Benefit |
|---|---|
| Complete Track Chain Assembly | Includes links, pins, and bushings - ready for shoe attachment |
| Heat-Treated Components | Induction-hardened pins, bushings, and link rails for maximum wear resistance |
| PV271 Optimized | Specifically engineered for Atlas Copco/Epiroc PV271 drilling rig |
| Flexible Configuration | Allows use of various track shoe types for different ground conditions |
| Precision Assembly | Factory-assembled to ensure proper pitch and alignment |
| Specification | Detail |
|---|---|
| Machine Model | Atlas Copco PV271 / Epiroc PV271 |
| Series | ITM (Intelligent Tunnel & Mining) |
| Machine Type | Underground drilling rig |
| Application | Production drilling, bolting, ground support |
| Component | Part Number | Description |
|---|---|---|
| Track Shoes | Sold separately | Attach to link assembly |
| Track Rollers | Various | Support the track chain |
| Sprocket | Various | Drives the track chain |
| Carrier Roller | C0145100M00U | Supports upper track strand |
Shoes Required: Track shoes are not included and must be ordered separately
Lifting Requirement: Due to weight (1,300 kg), specialized lifting equipment is required
Professional Installation: Requires trained personnel and appropriate tools
Track Tension: Set proper track sag according to OEM specifications after shoe installation
Regular Inspection: Monitor pin/bushing extension and link wear periodically
| Item | Detail |
|---|---|
| Part Number | 57910010 / EZ1356E0M00063U |
| Type | Track Link Assembly (Chain only) |
| Weight | 1,300 kg per assembly |
| Compatibility | Atlas Copco PV271 / Epiroc PV271 |
| Includes | Links, pins, bushings |
| Note | Track shoes sold separately |
| Packaging | Single assembly (crated) |
Note: This is the track link/chain assembly only. Track shoes (pads) must be ordered separately and attached to complete the track system. Due to the weight (1,300 kg), specialized lifting equipment and professional installation are required. Verify machine serial number and undercarriage configuration before ordering.
