R0130000M01
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | 57735672 |
| Alternative Part Number | R0130000M01 |
| Product Name | Sprocket / Drive Sprocket |
| Product Type | Undercarriage Component |
| Compatible Machine Models | Atlas Copco PV271 Drilling Rig / Epiroc (ITM Series) |
| Single Weight | 85 kgs (187.4 lbs) |
| Material | High-strength alloy steel, induction-hardened teeth |
| Application | Drives the track chain for machine propulsion |
| Industry Focus | Underground Mining, Tunneling, Drilling Operations |
Atlas Copco 57735672 sprocket
PV271 drive sprocket
R0130000M01 sprocket
Epiroc PV271 undercarriage parts
85 kg sprocket for PV271
ITM PV271 track sprocket
Replacement sprocket for Atlas Copco PV271

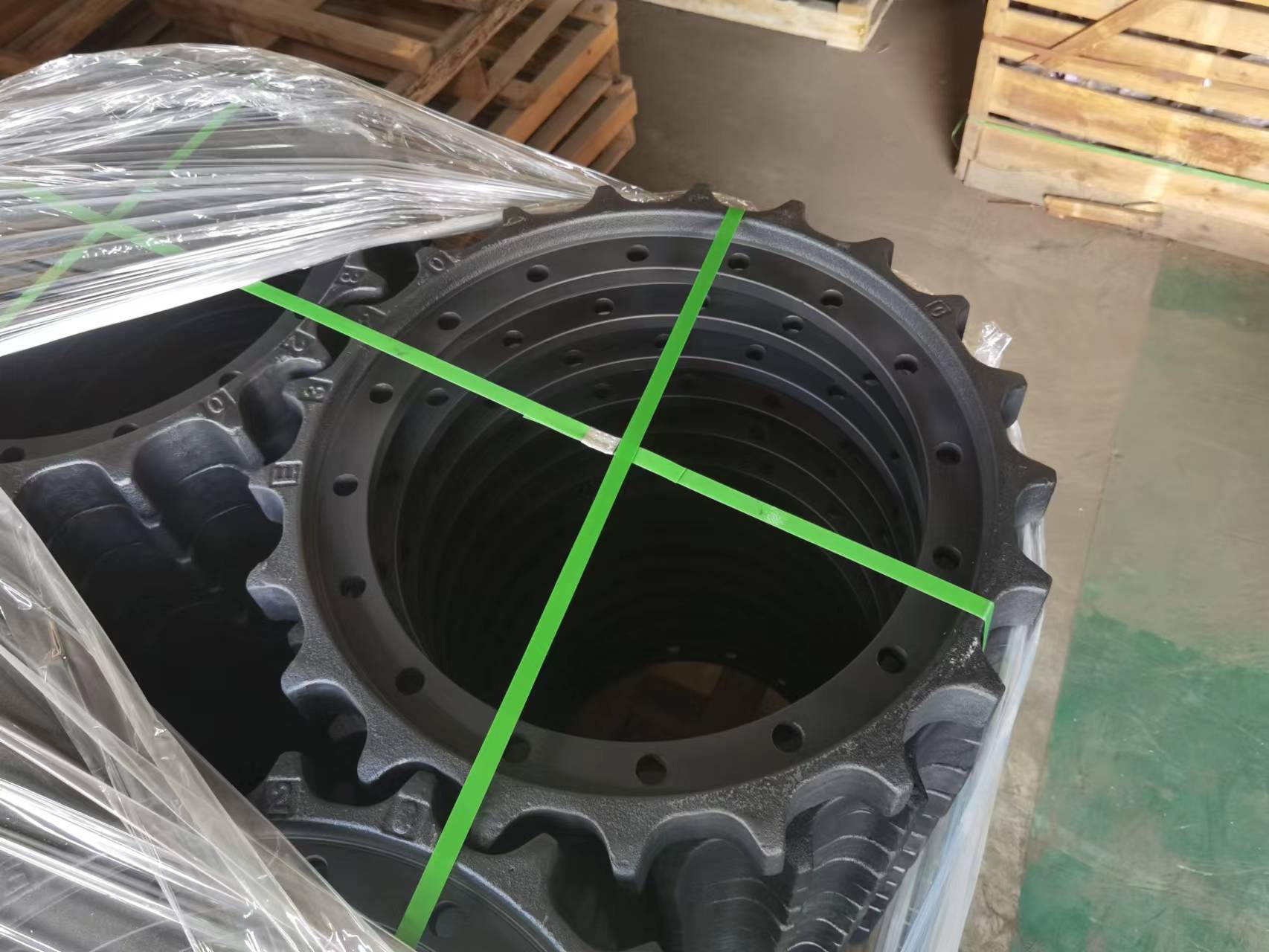

The Atlas Copco 57735672 Sprocket (Drive Sprocket) is a genuine OEM-specification undercarriage component designed for the Atlas Copco PV271 drilling rig (now under Epiroc). This sprocket is a critical drivetrain component that engages with the track bushings to propel the machine.
The sprocket features precision-machined tooth profiles for optimal engagement with the track chain, ensuring efficient power transfer from the final drive to the undercarriage. Manufactured from high-strength alloy steel with induction-hardened teeth, it provides maximum durability in severe underground mining conditions.
| Feature | Benefit |
|---|---|
| Induction-Hardened Teeth | Exceptional wear resistance and extended service life |
| Precision-Machined Profile | Optimal engagement with track bushings for smooth operation |
| High-Strength Alloy Steel | Maximum durability for demanding underground applications |
| PV271 Optimized | Specifically engineered for Atlas Copco/Epiroc PV271 drilling rig |
| Direct OEM Replacement | Guaranteed fit and performance |
| Specification | Detail |
|---|---|
| Machine Model | Atlas Copco PV271 / Epiroc PV271 |
| Series | ITM (Intelligent Tunnel & Mining) |
| Machine Type | Underground drilling rig |
| Position | Final drive sprocket |
| Component | Part Number | Description |
|---|---|---|
| Track Link Assembly | 57910010 / EZ1356E0M00063U | Track chain (1,300 kg) |
| Track Shoe Assembly | 57909137 | Complete track assembly (3,420 kg) |
| Top Roller | C0145100M00U | Carrier roller (40 kg) |
| Bottom Roller | A01450A0M00U | Single flange roller (82 kg) |
Tooth Inspection: Regularly inspect sprocket teeth for wear; replace when teeth become hook-shaped or worn
Lifting Note: At 85 kg, use proper lifting techniques for safe handling
Bolt Torque: Follow OEM specifications for mounting bolt torque
Alignment: Ensure proper alignment with track chain to prevent premature wear
Track Tension: Maintain proper track tension to extend sprocket and chain life
Replacement: Replace sprocket when tooth wear exceeds OEM specifications
| Condition | Action |
|---|---|
| New teeth - sharp profile | Normal operation |
| Moderate wear - rounded profile | Monitor regularly |
| Hook-shaped teeth | Replace immediately |
| Broken teeth | Replace immediately |
| Item | Detail |
|---|---|
| Part Number | 57735672 / R0130000M01 |
| Type | Drive Sprocket |
| Weight | 85 kg per piece |
| Compatibility | Atlas Copco PV271 / Epiroc PV271 |
| Packaging | Individual box |
Note: This is a drive sprocket for the Atlas Copco/Epiroc PV271 drilling rig. Verify machine serial number and undercarriage configuration before ordering. Regular inspection of sprocket teeth is recommended to prevent track chain damage. Due to weight (85 kg), proper lifting techniques are recommended during installation.
