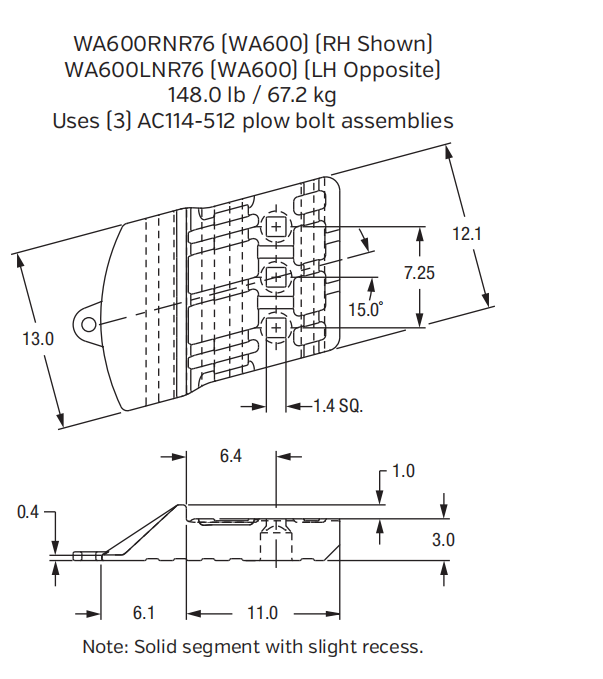

WA600RNR76
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | WA600RNR76 |
| Product Name | Bolt-On End Segment (Right Hand) |
| Product Type | Wheel Loader GET Component / Tooth Holder |
| Compatible Machine Models | Komatsu WA600 Wheel Loader |
| Application | Mounts to bucket lip end (right side) to secure replaceable teeth |
| Type | Bolt-On End Segment |
| Position | Right Hand (RH) |
| Weight | 148.0 lb (67.2 kg) |
| Design Angle | 15.0° |
| Square Section | 1.4" SQ. |
| Mounting Type | Bolt-On |
| Plow Bolt Assembly | AC114-512 |
| Bolt Quantity per Segment | 3 assemblies |
| Special Feature | Solid segment with slight recess |
