LA55FC65
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | LA55FC65 (also VOE 11417116) |
| Product Name | Flush-Mounted Adapter / Flush Corner Adapter |
| Product Type | Wheel Loader Bucket Adapter / Ground Engaging Tool (GET) |
| Application | Connects bucket teeth to the bucket lip with flush profile |
| Design | FC - Flush Corner / Flush-Mounted |
| Edge Thickness | 65 mm |
| Single Weight | 23 kgs (50.7 lbs) |
| Material | High-strength, heat-treated alloy steel |
| Compatible Tooth Series | Volvo 55 Series |
| Compatible Pin | 55P (Locking pin for secure attachment) |
| Industry Focus | Ultra-large wheel loaders, Heavy mining, Severe quarrying, Mass excavation |
| OEM Interchangeability | Direct replacement for Volvo OEM adapter |
| Compatible Machine Models | Volvo L250, L350, L350H Series Wheel Loaders |
Volvo LA55FC65 flush adapter
VOE 11417116 flush-mounted adapter
L250 L350 L350H wheel loader adapter
Flush corner adapter 65mm edge
Volvo FC flush adapter 55 series
65mm edge thickness adapter
23 kg Volvo GET adapter
55P locking pin compatible adapter
Ultra-heavy duty flush mounted adapter
Large mining wheel loader adapter
The Volvo LA55FC65 Flush-Mounted Adapter (Part No. VOE 11417116) is a genuine OEM-specification ground engaging tool adapter designed specifically for Volvo ultra-large wheel loaders. Engineered as part of the Volvo FC (Flush Corner) series, this adapter provides a low-profile, flush-mounted interface between the bucket lip and 55 Series ground engaging tools (teeth).
The "FC" (Flush Corner / Flush-Mounted) design allows the adapter to sit flush with the cutting edge, reducing protrusion and improving material flow. With a massive 65mm edge thickness rating and substantial 23 kg construction, this adapter is designed for the heaviest-duty buckets on Volvo's largest wheel loader platforms operating in severe mining and heavy quarrying applications.
| Feature | Benefit |
|---|---|
| Flush-Mounted (FC) Design | Low-profile adapter sits flush with cutting edge for improved material flow and reduced hang-up on ultra-large machines |
| 65mm Edge Thickness Compatibility | Designed for the heaviest-duty bucket edges on Volvo's largest wheel loaders |
| Substantial Construction (23 kg) | Extreme heavy-duty build for severe mining service conditions |
| High-Strength Alloy Steel | Maximum durability for extreme applications |
| Volvo 55 Series System | Compatible with 55 Series teeth and 55P locking pins |
| Precision Manufacturing | Ensures perfect fitment to OEM buckets |
| Corrosion Resistant Coating | Extended service life in various conditions |
| Part Number | Edge Thickness | Weight | Best Application |
|---|---|---|---|
| LA55FC20 | 20 mm | 21.0 kg | Standard duty buckets |
| LA55FC25 | 25 mm | 21.3 kg | Medium duty buckets |
| LA55FC30 | 30 mm | 21.6 kg | Heavier-duty buckets |
| LA55FC35 | 35 mm | 21.9 kg | Heavy-duty buckets |
| LA55FC40 | 40 mm | 22.2 kg | Extreme heavy-duty buckets |
| LA55FC50 | 50 mm | 22.6 kg | Severe heavy-duty buckets |
| LA55FC65 | 65 mm | 23.0 kg | Ultra-heavy-duty buckets |
| Adapter Type | Profile | Best Application | Protrusion |
|---|---|---|---|
| FC (Flush-Mounted) | Low-profile, flush | Grading, stockpile, material flow | Minimal |
| TL (Top Leg) | Standard | General purpose | Moderate |
| BN (Bolt-On) | Standard | Heavy duty | Standard |
The LA55FC65 adapter is specifically matched to Volvo ultra-large wheel loaders with 65mm bucket edges, including:
Volvo L250 Series (L250, L250D, L250E, L250F, L250G)
Volvo L350 Series (L350F, L350G, L350H)
Volvo L350H (latest generation)
These wheel loaders are Volvo's largest platforms, featuring operating weights from 35,000 kg to 54,000 kg with bucket capacities from 6.0 m³ to 10.0 m³.
| Component | Part Number | Description |
|---|---|---|

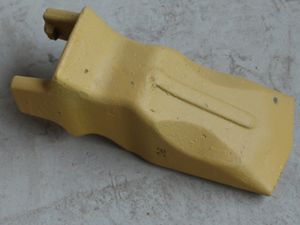

| Compatible Teeth | 55GPL, 55GPE, 55AML, 55AMRL, 55AMXL, 55PPE, 55TPE, 55SNE | 55 Series teeth |
| Locking Pin | 55P | Vertical locking pin |
Welding Required: FC adapters are typically weld-on components. Use qualified personnel and proper welding procedures.
Edge Preparation: Ensure 65mm bucket edge is clean and properly prepared before welding.
Pin Installation: Use correct 55P locking pin; vertical locking device enables fast, hammerless installation.
Regular Inspection: Check adapter welds and wear periodically.
Tooth Compatibility: Use only with Volvo 55 Series teeth.
Lifting Note: At 23 kg, use proper lifting techniques and mechanical assistance when handling multiple units.
Flush Profile Advantage: The low-profile design reduces material hang-up, improves bucket fill factors, and enhances visibility to the cutting edge, even on the largest wheel loaders
Ultra-Heavy Duty Compatibility: Designed for 65mm bucket edges on Volvo's largest wheel loaders, providing maximum structural integrity for the most demanding mining applications
Largest Machine Optimized: Specifically engineered for Volvo's L250 and L350 wheel loader line - the largest platforms in Volvo's wheel loader portfolio
Volvo Genuine Quality: Manufactured to exact OEM specifications for perfect fit and performance
Versatile Application: Suitable for heavy mining, severe quarrying, mass excavation, and extreme general purpose applications
| Item | Detail |
|---|---|
| Part Number | LA55FC65 / VOE 11417116 |
| Type | FC - Flush Corner / Flush-Mounted |
| Edge Thickness | 65 mm |
| Weight | 23 kg per piece |
| Pin Required | 55P (order separately) |
| Installation | Weld-on |
| Packaging | Individual or bulk |
Note: Proper welding procedures must be followed for installation. Use only with Volvo 55 Series teeth and 55P locking pins. This adapter is specifically designed for 65mm bucket edges on Volvo's largest wheel loaders - verify your bucket edge thickness and machine model before ordering. Due to the significant weight (23 kg), mechanical lifting assistance is recommended during installation.
