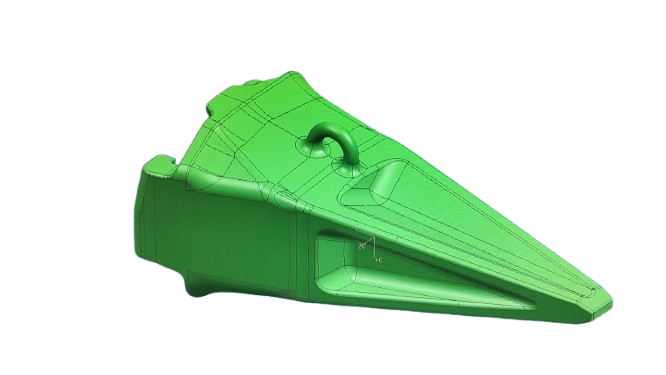

85SV2VX
The following table outlines the key dimensional data and weight for the 85SV2RX bucket tooth.
| Parameter | Description | Metric (mm) | Imperial (inch) |
|---|---|---|---|
| Model / Series | SV2 | SV2 | |
| Tooth Type | Penetration CL | Penetration CL | |
| Weight | Approximate Single Weight | ~79 kg* | ~174 lbs* |
| Length (A) | Overall Length | 579 | 22.8 |
| Width (B) | 45 | 1.78 | |
| WIDTH AT EARS (D) | 44 | 1.75 |
Enhanced Durability: Manufactured from high-grade, heat-treated alloy steel to withstand high abrasion and impact forces.
Optimal Penetration: The balanced geometry ensures efficient digging, reducing cycle times and fuel consumption.
Cable Shovel Application: Specifically engineered to meet the demands of large dippers on machines like the P&H 4100XPC, Bucyrus 495HR, and similar models.
Compatible System: Designed to work seamlessly with the corresponding 85SV2 series adapters and locking mechanisms for secure attachment.
Primary Application: Large Electric Cable Shovels and their dippers.
Compatible Machines: Suitable for major OEM shovels in the 100-ton+ class.
Ideal For: Loading of overburden, coal, iron ore, copper ore, and other mined materials.
