| Item | Specification |
|---|---|
| Part Number | 5439475 |
| Product Name | Track Shoe Link Assembly / Complete Track Assembly |
| Product Type | Undercarriage Component - Complete Track System |
| Compatible Machine Models | SEM 816D Bulldozer |
| Number of Links | 37 Links |
| Total Assembly Weight | 1,388 kgs (3,060 lbs) |
| Track Type | Heavy-duty sealed track |
| Application | Complete track system for bulldozer mobility |
| Industry Focus | Construction, Earthmoving, Land Clearing, Heavy Dozing |
SEM 5439475 track shoe assembly
816D complete track assembly
SEM 816D undercarriage parts
37 link track assembly for 816D
1388 kg track shoe link assembly
Replacement track for SEM 816D dozer
SEM bulldozer track chain

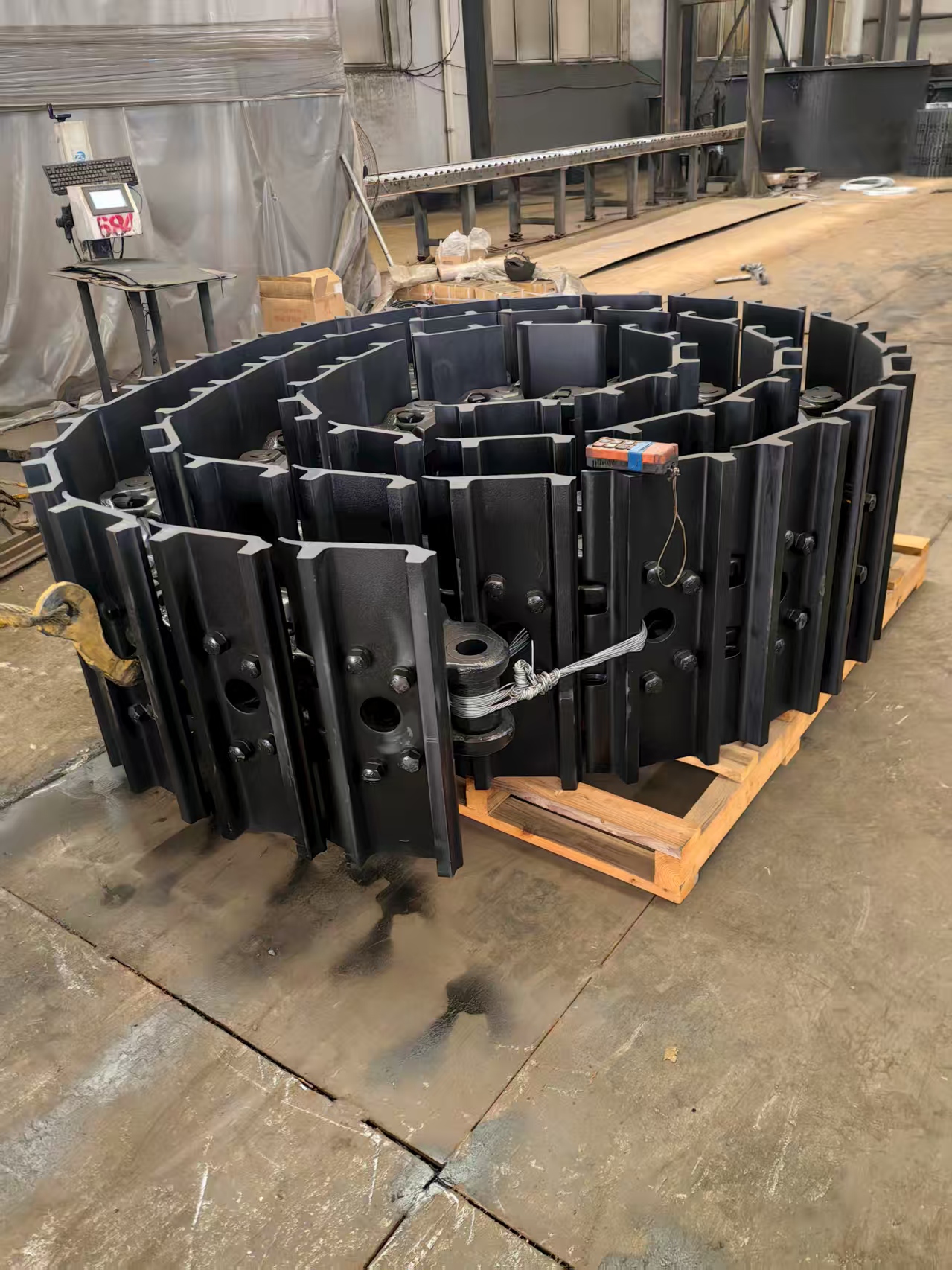

The SEM 5439475 Track Shoe Link Assembly is a genuine OEM-specification complete undercarriage track system designed for the SEM 816D bulldozer. This complete track assembly includes the track links, pins, bushings, and track shoes - everything needed for a full track replacement.
The SEM 816D is a medium-to-large bulldozer used in construction, earthmoving, land clearing, and heavy dozing applications. The 37-link configuration is specifically engineered for this dozer model.
| Feature | Benefit |
|---|---|
| Complete Assembly | Ready-to-install track system - links, pins, bushings, and shoes included |
| 37 Links Configuration | Specific link count for SEM 816D dozer |
| Heavy-Duty Construction (1,388 kg) | Robust build for demanding dozing applications |
| 816D Optimized | Specifically engineered for SEM 816D bulldozer |
| Factory Assembled | Ensures proper alignment and tension |
| Direct OEM Replacement | Guaranteed fit and performance |
| Specification | Detail |
|---|---|
| Machine Model | SEM 816D Bulldozer |
| Machine Type | Medium-to-Large Bulldozer |
| Application | Construction, earthmoving, land clearing |
| Number of Links | 37 links per assembly |
| Component | Description |
|---|---|
| Track Rollers | Bottom rollers |
| Carrier Rollers | Top rollers |
| Idler | Front idler assembly |
| Sprocket | Drive sprocket |
Complete Assembly: This is a complete track system - ready to install
Lifting Requirement: Due to weight (1,388 kg / 1.4 metric tons), specialized lifting equipment is required
Professional Installation: Requires trained personnel and appropriate equipment
Track Tension: Set proper track sag according to SEM specifications after installation
Regular Inspection: Monitor track wear, pin/bushing extension, and shoe condition periodically
| Condition | Action |
|---|---|
| New track - full pin/bushing life | Normal operation |
| Pin/bushing wear within spec | Continue monitoring |
| Pin/bushing wear exceeds spec | Replace track assembly |
| Track shoe wear exceeds spec | Replace shoes (if separate) |
| Broken links or pins | Replace immediately |
| Item | Detail |
|---|---|
| Part Number | 5439475 |
| Type | Track Shoe Link Assembly (Complete Track Assembly) |
| Links | 37 links |
| Weight | 1,388 kg per assembly |
| Compatibility | SEM 816D Bulldozer |
| Packaging | Single assembly (crated) |
Note: This is a complete, ready-to-install track assembly for the SEM 816D bulldozer. Due to its weight (1,388 kg / 1.4 metric tons / 3,060 lbs), specialized lifting equipment and professional installation are required. Verify machine serial number and undercarriage configuration before ordering.
