384-2968
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | 384-2968 (or 3842968) |
| Product Name | Track Shoe Link Assembly / Complete Track Assembly |
| Product Type | Undercarriage Component - Complete Track System |
| Compatible Machine Models | Caterpillar D8, D8 XE, D8R Dozers |
| Total Assembly Weight | 2,427 kgs (5,351 lbs) |
| Track Type | Heavy-duty sealed and lubricated track |
| Application | Complete track system for dozer mobility |
| Industry Focus | Mining, Heavy Construction, Land Clearing, Heavy Dozing |
Caterpillar 384-2968 track shoe assembly
D8 complete track assembly
D8 XE track link shoe assembly
3842968 undercarriage part
2427 kg track assembly for CAT D8
Replacement track for D8R dozer
Caterpillar dozer track chain

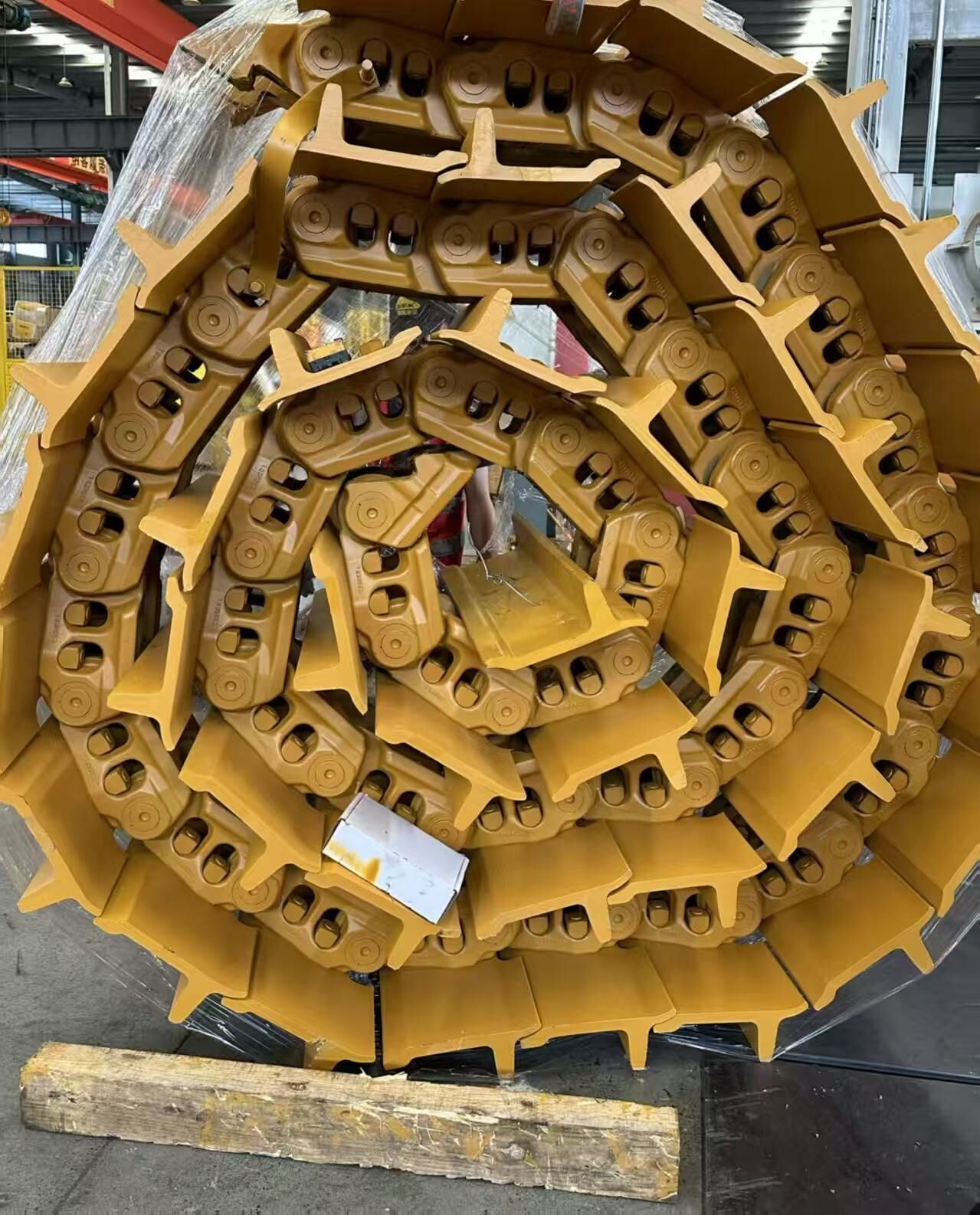

The Caterpillar 384-2968 Track Shoe Link Assembly is a genuine OEM-specification complete undercarriage track system designed for Caterpillar D8, D8 XE, and D8R dozers. This complete track assembly includes the track links, pins, bushings, and track shoes - everything needed for a full track replacement.
The D8 series are large dozers used in mining, heavy construction, land clearing, and heavy dozing applications. This track assembly features a sealed and lubricated track design, which significantly extends undercarriage life by using internal grease lubrication and floating seals to reduce internal pin/bushing wear.
| Feature | Benefit |
|---|---|
| Complete Assembly | Ready-to-install track system - links, pins, bushings, and shoes included |
| Sealed & Lubricated Track | Internal grease lubrication and floating seals reduce internal pin/bushing wear |
| Heavy-Duty Construction (2,427 kg) | Robust build for large dozer applications |
| D8 Series Optimized | Specifically engineered for CAT D8, D8 XE, D8R dozers |
| Extended Service Life | Lubricated design significantly outlasts dry track chains |
| Factory Assembled | Ensures proper alignment and tension |
| Direct OEM Replacement | Guaranteed fit and performance |
| Machine Model | Type | Application |
|---|---|---|
| D8 | Dozer | Mining, heavy construction, dozing |
| D8 XE | Dozer | Mining, heavy construction, dozing |
| D8R | Dozer | Mining, heavy construction, dozing |
| Part Number | Shoe Width | Weight | Track Type |
|---|---|---|---|
| 384-2968 | Various | 2,427 kg | Sealed & Lubricated |
| 654-8598 | 610 mm | 2,706 kg | PPR |
| Component | Part Number | Description |
|---|---|---|
| Single Flange Roller | 620-6380 / 419-7172 | Single flange roller (91 kg) |
| Double Flange Roller | 620-6402 | Double flange roller (96 kg) |
| Idler (Heavy) | 111-1730 | Front idler (294 kg) |
| Idler (Standard) | 111-1729 | Front idler (247 kg) |
Complete Assembly: This is a complete track system - ready to install
Lifting Requirement: Due to weight (2,427 kg / 2.4 metric tons), specialized lifting equipment is required
Professional Installation: Requires trained personnel and appropriate equipment
Track Tension: Set proper track sag according to Caterpillar specifications after installation
Regular Inspection: Monitor track wear, pin/bushing extension, and shoe condition periodically
Lubricated Track: No field lubrication required for sealed joints
| Condition | Action |
|---|---|
| New track - full pin/bushing life | Normal operation |
| Pin/bushing wear within spec | Continue monitoring |
| Pin/bushing wear exceeds spec | Replace track assembly |
| Track shoe wear exceeds spec | Replace shoes (if separate) |
| Broken links or pins | Replace immediately |
| Item | Detail |
|---|---|
| Part Number | 384-2968 / 3842968 |
| Type | Track Shoe Link Assembly (Complete Track Assembly) |
| Weight | 2,427 kg per assembly |
| Compatibility | CAT D8, D8 XE, D8R Dozers |
| Packaging | Single assembly (crated) |
Note: This is a complete, ready-to-install track assembly for the Caterpillar D8, D8 XE, and D8R dozers. Due to its weight (2,427 kg / 2.4 metric tons / 5,351 lbs), specialized lifting equipment and professional installation are required. Verify machine serial number and undercarriage configuration before ordering. The sealed and lubricated track design provides extended service life in demanding conditions.
