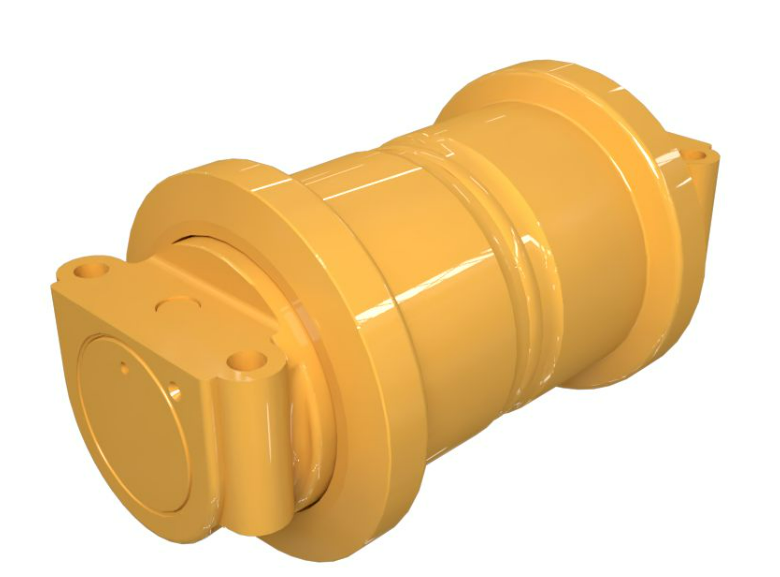

Product Specification: Track Roller Group
| Item | Specification |
|---|---|
| Part Number | 435-4261 |
| Product Name | Track Roller Group / Track Support Roller Assy |
| Product Type | Undercarriage Component |
| Compatible Machine Models | Caterpillar 6015, 6015B Hydraulic Mining Shovel |
| Application | Supports the machine's weight and guides the track chain in the lower undercarriage |
| Position | Bottom/Lower Track Roller |
| Single Weight | 236.3 kgs (521.0 lbs) |
Note:
This track roller assembly is a critical load-bearing component designed for the CAT 6015 and 6015B mining shovels
It supports the full static and dynamic weight of the machine, guides the track chain, and reduces friction during travel
Typically manufactured from forged alloy steel with induction-hardened tread and flange surfaces (HRC 58-63) for maximum wear resistance in abrasive mining conditions
Features advanced multi-barrier sealing systems to prevent contamination and retain lubrication, ensuring extended service life
Due to its significant weight (236.3 kg), proper lifting equipment and installation procedures are required.
Please verify exact compatibility with your specific machine serial number and undercarriage configuration before installation.
If you need specification sheets for other undercarriage components, please feel free to let us know.
