Caterpillar Wheel Loader Cast Segments

Caterpillar wheel loaders operating in mining, quarrying and heavy-duty material handling applications require bucket wear parts that can withstand high impact, abrasion and continuous loading cycles.

Cast bucket segments are an important part of the cutting edge and bucket protection system. Beneparts Mining supplies replacement cast segments and related bucket wear parts for large Caterpillar wheel loaders, with applications covering models such as CAT 980, 988, 990, 992 and 994.

Our cast segments are designed for heavy-duty applications where wear resistance, dimensional consistency and reliable fitment are critical.

What Are Cast Bucket Segments?

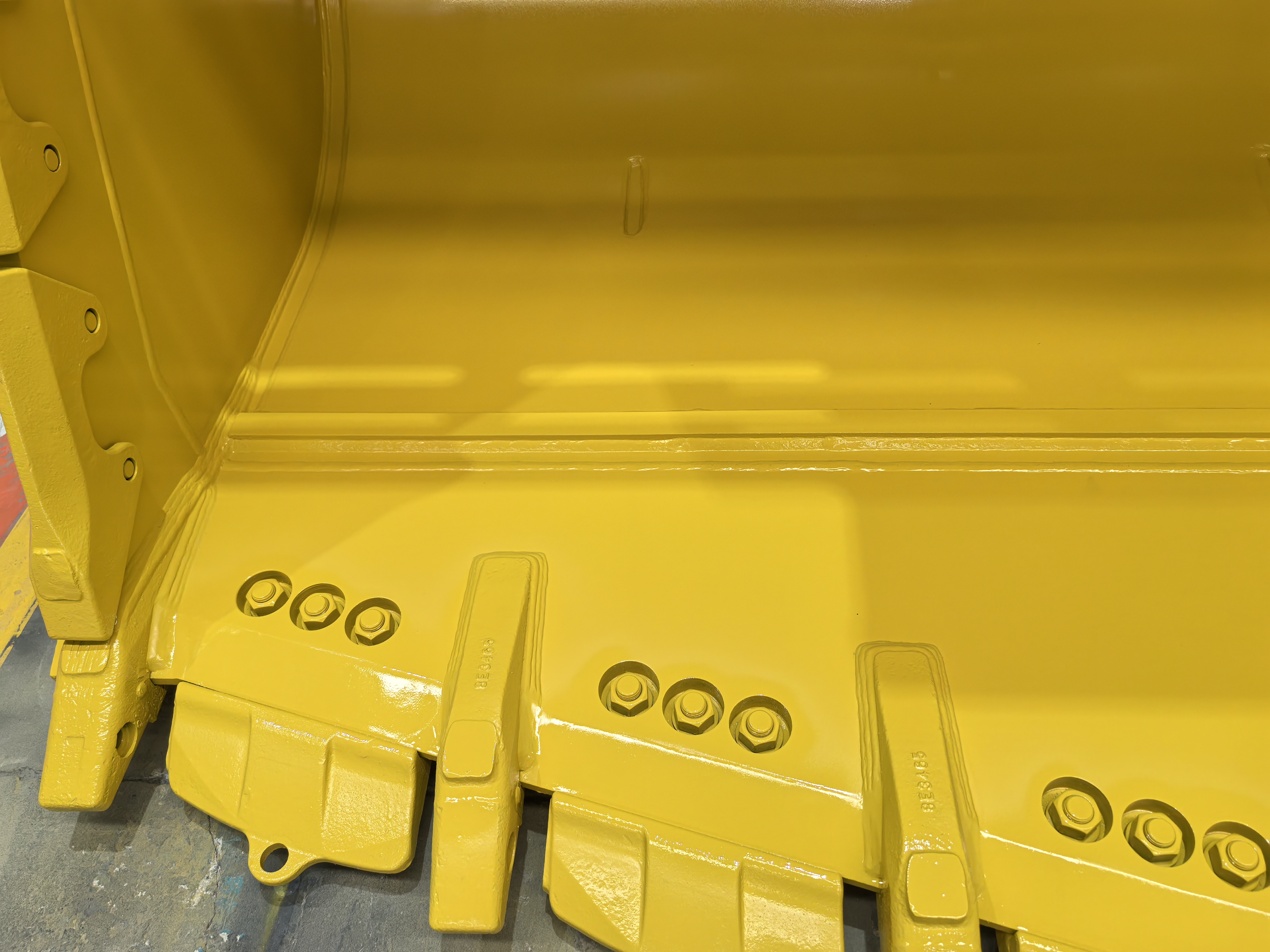

Cast segments are heavy-duty wear components installed along the cutting edge of a wheel loader bucket.

Compared with a simple fabricated or cut steel wear plate, a cast segment can be produced with a wear-oriented geometry and substantial material thickness in high-wear areas.

Typical applications include:

• Mining operations

• Hard rock quarrying

• Aggregates

• Limestone handling

• Sand and gravel operations

• Heavy material loading

• High-cycle wheel loader applications

For large wheel loaders, selecting the correct segment size, bolt pattern, thickness and bucket application is important for achieving reliable service life.

Caterpillar Wheel Loader Cast Segment Applications

Beneparts focuses on replacement wear parts for large Caterpillar wheel loaders.

The following part numbers and machine applications are included in our reference range.

Note: Part-number and machine-model information should be confirmed against the customer's bucket configuration, cutting edge and existing wear-part dimensions before ordering.

Cast Segment Options for Different Applications

Different wheel loader applications require different segment configurations.

Standard Cast Segments

Standard cast segments can be used for general heavy-duty loading applications where balanced wear resistance and cutting-edge protection are required.

Heavy-Duty Cast Segments

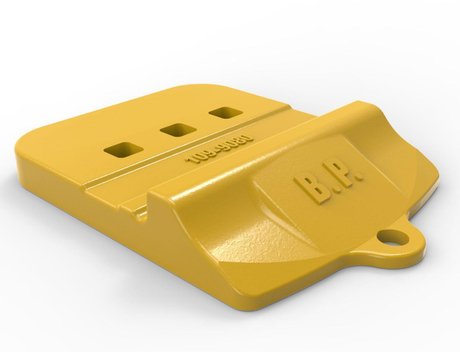

Heavy-duty versions such as 109-9080HD, 109-9081HD / 109-9082HD and 275-5470 series can be considered for demanding applications with higher abrasion or impact.

Center Segments

Center segments are installed in the central portion of the bucket cutting edge and are available in different dimensions and bolt configurations.

RH / LH End Segments

Right-hand and left-hand segments are used at the bucket ends and should be matched correctly to the bucket configuration.

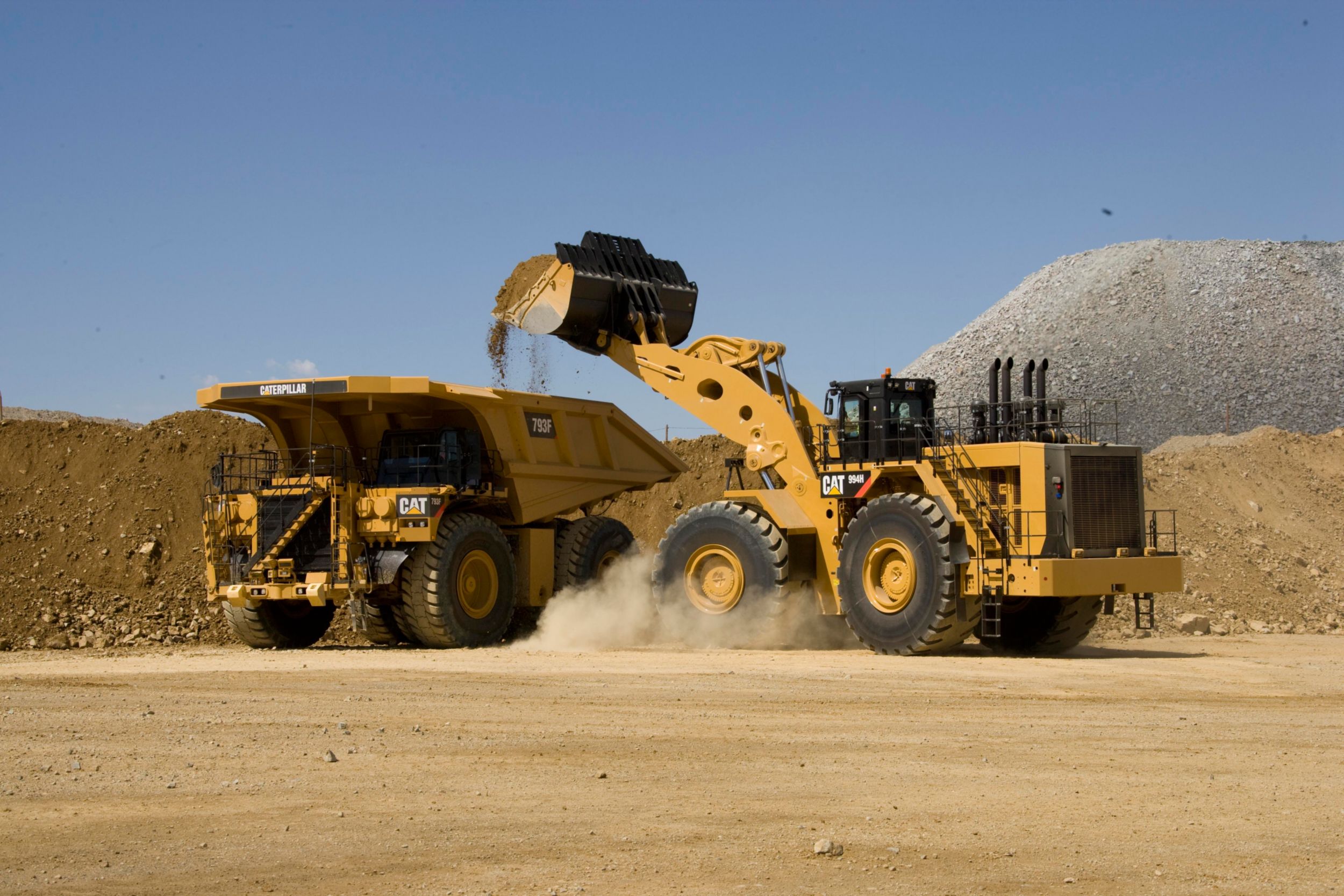

Cast Segments for CAT 988, 990, 992 and 994

Large Caterpillar wheel loaders such as the CAT 988, 990, 992 and 994 are widely used in high-production mining, quarrying and aggregate operations.

For these machines, bucket wear can directly affect loading efficiency and maintenance intervals.

Beneparts Mining can supply replacement cast segments for selected Caterpillar applications, including:

CAT 988F / 988G / 988H

CAT 990 / 990H

CAT 992D / 992G

CAT 994D / 994F

For customers replacing an existing segment, providing the machine model, existing part number and bucket photos allows us to check the appropriate replacement configuration.

Why Choose Cast Segments?

For heavy-duty wheel loader buckets, cast construction can provide several advantages:

• Heavy-duty wear geometry

• High material thickness in wear areas

• Suitable for demanding mining applications

• Available in different segment configurations

• Replacement options for established Caterpillar applications

• Compatible with bolt-on bucket wear systems

• Suitable for customized wear-part requirements

The actual service life depends on material characteristics, operating conditions, bucket configuration, loading method and maintenance practices.

How to Select the Correct Cast Segment

Before ordering a replacement segment, we recommend checking:

1. Machine Model

For example:

CAT 988 / CAT 990 / CAT 992 / CAT 994

2. Existing Part Number

Provide the number stamped or identified on the existing wear part whenever available.

3. Segment Position

Confirm whether the part is:

• Center Segment

• RH Segment

• LH Segment

• End Segment

• Heavy-Duty Segment

4. Bucket Configuration

Bucket type and cutting-edge configuration can affect segment selection.

5. Dimensions and Bolt Pattern

Important dimensions may include:

• Segment width

• Segment thickness

• Length

• Hole quantity

• Bolt diameter

• Mounting configuration

Beneparts Mining Cast Wear Parts

Beneparts Mining specializes in replacement wear parts for mining and heavy equipment applications.

Our product range covers Ground Engaging Tools (GET), bucket wear parts, cutting edges, wear plates, segments and other customized wear components.

For customers requiring replacement cast segments, we can evaluate the application based on the machine model, existing part number, drawings, dimensions or photographs.

Request a Cast Segment Quote

Looking for replacement Caterpillar wheel loader cast segments?

Send us the following information:

• Machine Model

• Segment Part Number

• Bucket Model or Bucket Type

• Required Quantity

• Application / Working Conditions

• Photos of Existing Parts

Request a Quote and our team will check the available replacement solution for your application.
