720010

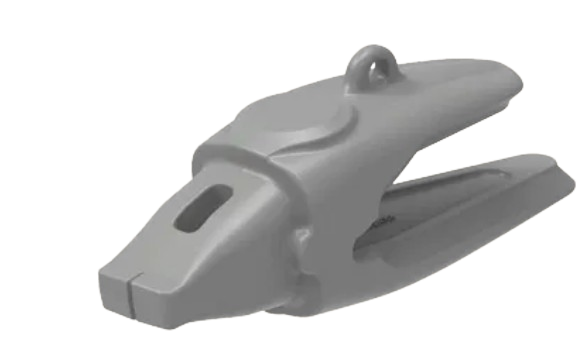

Product Data Sheet: W20BE Wear Part
Part Number: W20BE
The W20BE is a heavy-duty wear component engineered for extreme abrasion resistance in demanding mining and earthmoving applications. With its reinforced design and 70mm lip thickness, it provides superior protection for equipment operating in highly abrasive environments.

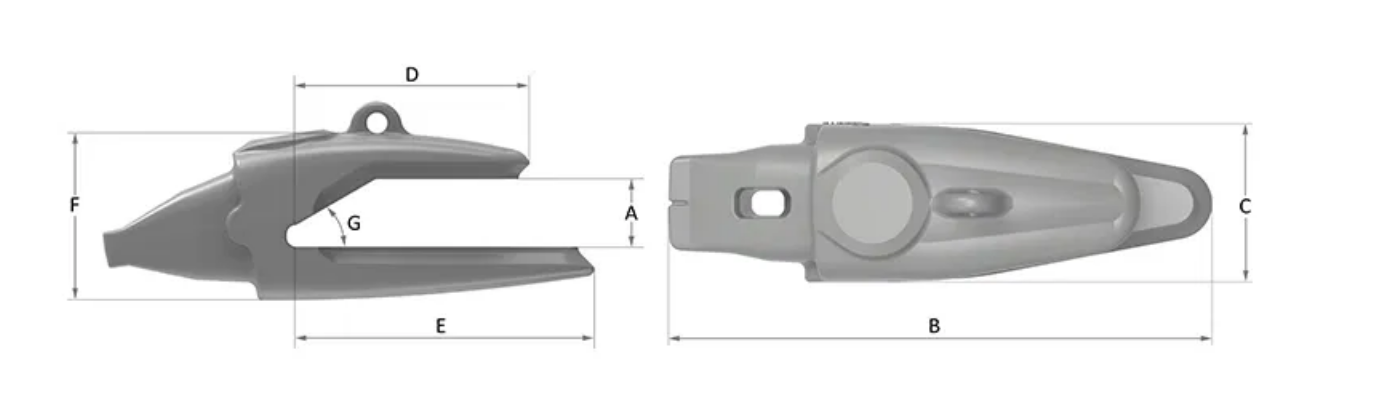

| Parameter | Description | Metric (mm) | Imperial (inch) |
|---|---|---|---|
| Lip Thickness | Base thickness | 70 mm | 2.76 inch |
| A | Primary dimension | 72 mm | 2.83 inch |
| B | Length dimension | 545 mm | 21.46 inch |
| C | Height dimension | 157 mm | 6.18 inch |
| D | Width dimension | 227 mm | 8.94 inch |
| E | Secondary length | 329 mm | 12.95 inch |
| F | Additional dimension | 186 mm | 7.32 inch |
| G | Angle specification | 30° | 30° |
| Weight | Single unit | 39.5 kg | 87.1 lbs |
Enhanced Protection: 70mm lip thickness provides exceptional resistance against wear and impact damage
Optimized Geometry: 30° angle design ensures efficient material flow and reduces digging resistance
Heavy-Duty Construction: Manufactured from premium wear-resistant steel for extended service life
Precision Engineering: Accurate dimensions guarantee perfect fitment with compatible equipment
Proven Durability: Designed to withstand the most challenging mining and quarrying conditions
Mining shovel and excavator buckets
Heavy-duty loader implements
Quarrying and aggregate processing equipment
Large-scale earthmoving operations
The W20BE wear part delivers outstanding value through its robust construction and optimized design. The substantial lip thickness and strategic angle placement ensure maximum protection while maintaining efficient equipment performance. With its 39.5kg weight, it offers the perfect balance of durability and manageable installation.
Contact our technical team for installation guidance and compatibility verification with your specific equipment model.
Other size BE
| Type | Part.no. | Weight(kg) | Lip thickness(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(°) | |
| BE (W09) | 709010 |  | 14.8 | 40 | 42 | 380 | 111 | 131 | 227 | 133 | 30 |
| BE (W09) | 709011 | | 14.7 | 50 | 52 | 380 | 111 | 131 | 227 | 133 | 30 |
| BE (W10) | 710010 | | 25,0 | 50 | 52 | 457 | 132 | 184 | 280 | 158 | 30 |
| BE (W10) | 710011 | | 24,4 | 60 | 62 | 457 | 132 | 184 | 280 | 158 | 30 |
| BE (W20) | 720010 |  | 40,5 | 70 | 72 | 545 | 157 | 227 | 329 | 186 | 30 |
| BE (W20) | 720011 | | 42,1 | 60 | 62 | 545 | 157 | 227 | 329 | 186 | 30 |
| BE (W25) | 725010 | | 58,3 | 80 | 82 | 605 | 177 | 204 | 367 | 205 | 30 |
| BE (W25) | 725011 | | 58,0 | 70 | 72 | 305 | 177 | 289 | 367 | 207 | 30 |
| BE (W30) | 730010 | | 85,5 | 90 | 92 | 678 | 202 | 317 | 408 | 243 | 30 |
| BE (W40) | 740010 | | 127,0 | 100 | 102 | 760 | 226 | 364 | 457 | 274 | 30 |
| BE (W40) | 740014 | | 142,0 | 120 | 123 | 814 | 226 | 394 | 498 | 294 | 30 |
| BE (W50) | 750010 | | 170,5 | 120 | 123 | 831 | 248 | 394 | 498 | 301 | 30 |
