Product Data Sheet: W20AE Wear Part
Part Number: W20AE

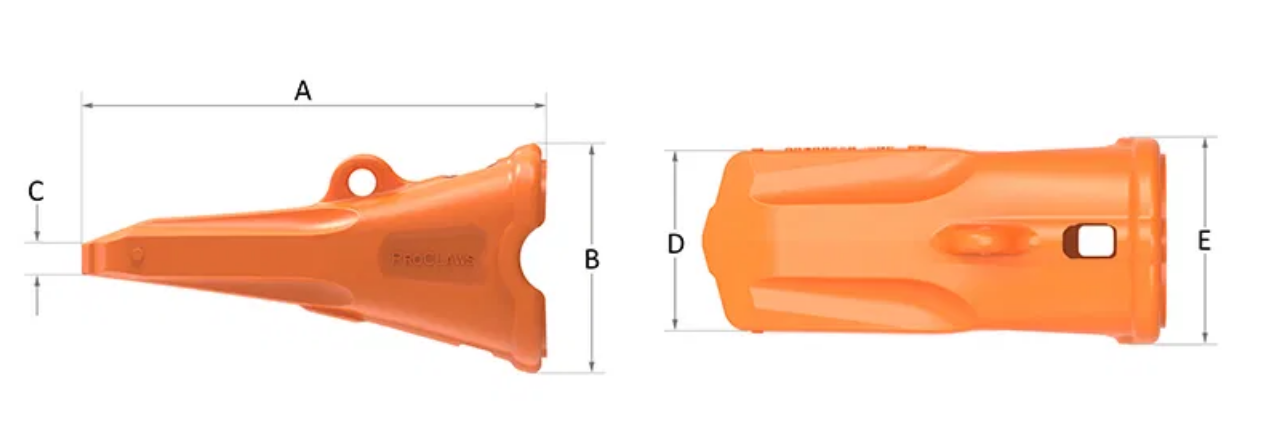

| Parameter | Metric (mm) | Imperial (inch) |
|---|---|---|
| A | 387 mm | 15.24 inch |
| B | 189 mm | 7.44 inch |
| C | 26 mm | 1.02 inch |
| D | 148 mm | 5.83 inch |
| E | 169 mm | 6.65 inch |
| Weight | 25 kg | 55.1 lbs |
High Durability: Manufactured from advanced wear-resistant steel to withstand abrasive materials.
Precision Fit: Designed for seamless integration with compatible equipment models.
Lightweight yet Robust: Weighing only 25 kg, it combines strength with ease of handling and installation.
Versatile Application: Suitable for excavators, loaders, and other heavy machinery requiring reliable wear protection.
Mining shovels and excavators.
Quarrying and aggregate processing equipment.
Heavy-duty earthmoving machinery.
The W20AE wear part offers a balanced combination of precise dimensions, material excellence, and practical design. Its lightweight nature reduces operational strain while maintaining the durability needed for prolonged use in harsh conditions.
For detailed installation guidelines or custom requirements, consult our technical support team.
Other size AE
| Type | Part.no. | Weight(kg) | Lip thickness(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(°) | |
| AE (W10) | 710110 |  | 15,1 | 334 | 153 | 19 | 129 | 134 | |||
| AE (W20) | 720110 |  | 24,7 | 387 | 189 | 26 | 148 | 169 | |||
| AE (W25) | 725110 | | 33,5 | 426 | 213 | 28 | 168 | 192 | |||
| AE (W30) | 730110 | | 48,0 | 469 | 236 | 31 | 190 | 215 | |||
| AE (W40) | 740110 | | 65,0 | 521 | 262 | 34 | 210 | 238 | |||
| AE (W50) | 750110 | | 86 | 570 | 287 | 37 | 231 | 262 |
