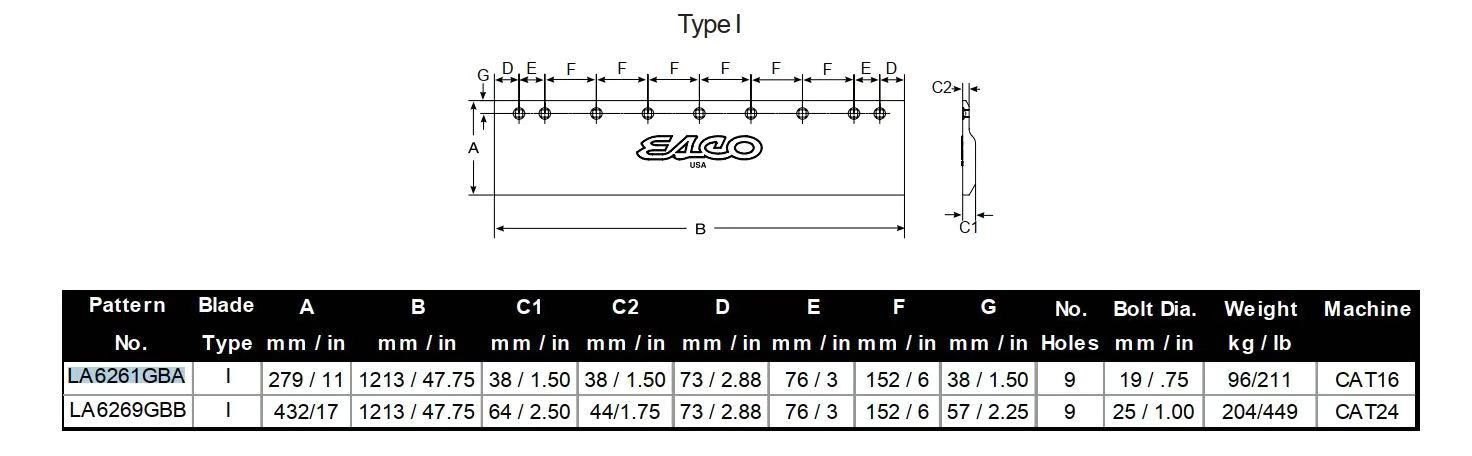

Product Specification: Cast Grader Blade
| Item | Specification |
|---|---|
| Part Number | LA6261GBA / 422-3419 |
| Product Name | Cast Grader Blade |
| Product Type | Motor Grader Cutting Edge |
| Compatible Machine Models | Caterpillar 16M, 16G Motor Grader |
| Material | Cast Alloy Steel |
| Thickness | 1.5 inches (38.1 mm) |
| Width | 11 inches (279.4 mm) |
| Length | 47.75 inches (1,213 mm) |
| Bolt Diameter | 0.75 inches (19.05 mm) |
| Hole Quantity | 9 |
| Single Weight | 110 kgs (242.5 lbs) |
Note:

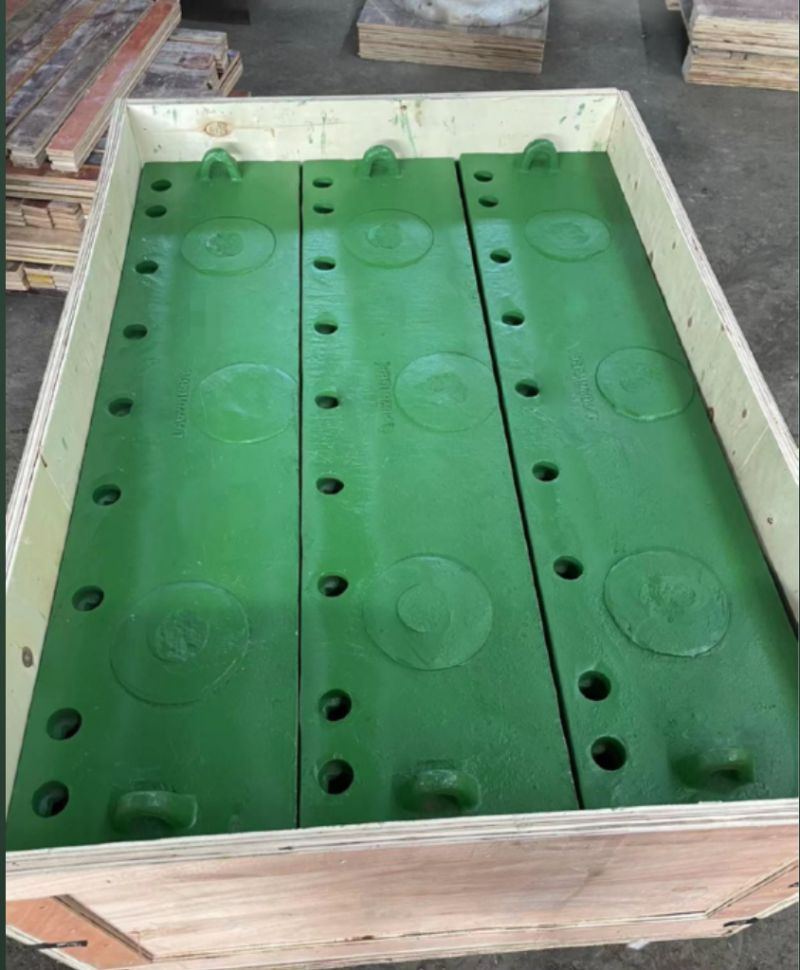

This cast grader blade is designed for Caterpillar 16M and 16G motor graders, providing exceptional durability in heavy grading applications.
Cast construction offers superior wear resistance and strength compared to rolled steel blades, ideal for abrasive conditions.
The blade features 9 mounting holes with 0.75-inch diameter for secure attachment to the moldboard.
Please verify exact compatibility with your specific moldboard mounting configuration and bolt pattern before installation.
If you need specification sheets for other grader blades, bits, or related motor grader wear parts, please feel free to let us know.
