217-4726
| Availability: | |
|---|---|

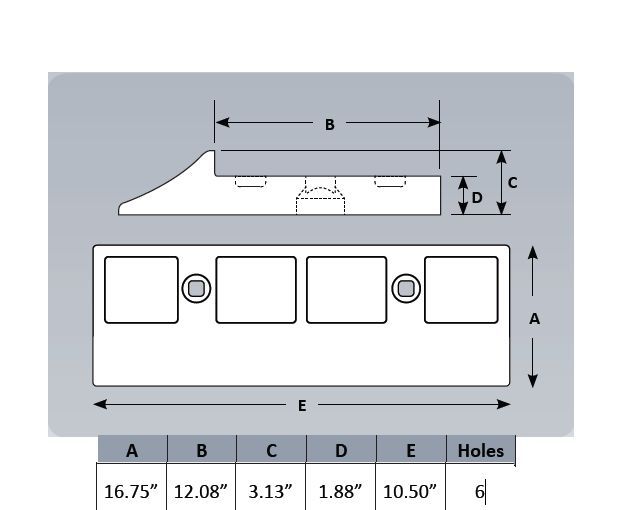

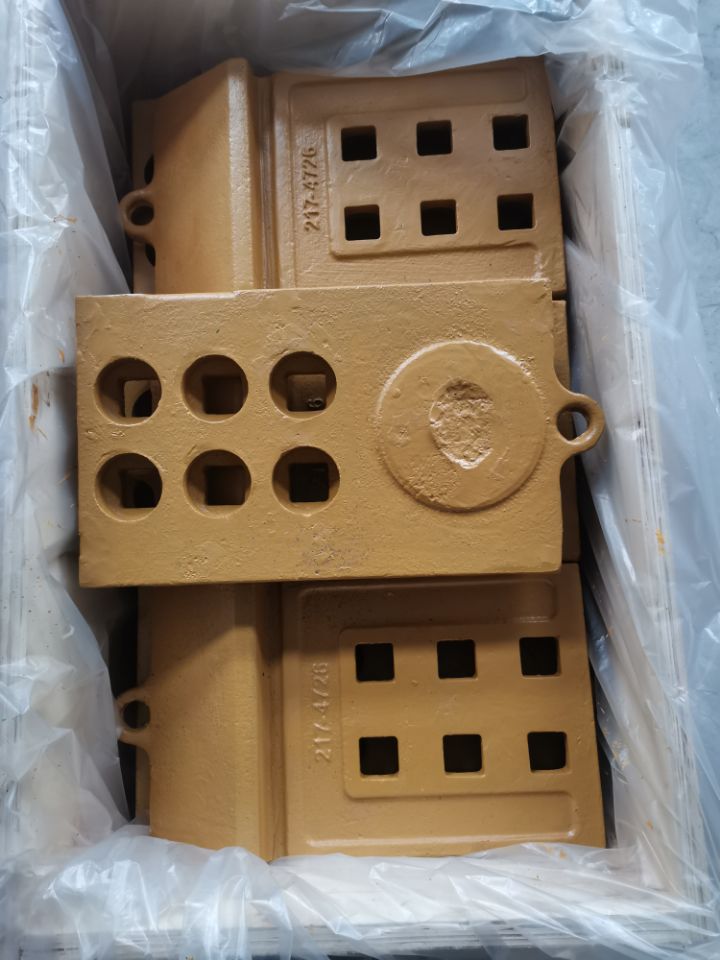

Product Specification: Weld On Half Arrow End Edge
| Item | Specification |
|---|---|
| Part Number | 217-4726 (or 2174726) |
| Product Name | Weld On Half Arrow End Edge |
| Product Type | Loader Bucket Wear Part |
| Compatible Machine Models | Caterpillar 982M, 980K, 980, 980M, 982, 988K, 980G II, 980XE, 980H Wheel Loaders |
| Application | Provides wear protection and cutting capability at the bucket edge ends |
| Design | Half Arrow |
| Attachment Method | Weld-On |
| Single Weight | 37 kgs (81.6 lbs) |
Note:
This weld-on half arrow end edge is designed for the bucket edges of large Caterpillar wheel loaders, providing protection and enhanced cutting performance.
The half arrow profile offers a balance of penetration and wear resistance at the critical bucket corner areas.
As a weld-on component, it is permanently attached to the bucket and should be installed by qualified personnel using proper welding procedures.
Regular inspection of end edges is recommended to maintain optimal bucket performance and protection.
Please verify exact compatibility with your specific bucket model and configuration before installation.
If you need specification sheets for other bucket wear parts (cutting edges, segments, shrouds), please feel free to let us know.
