9V5073

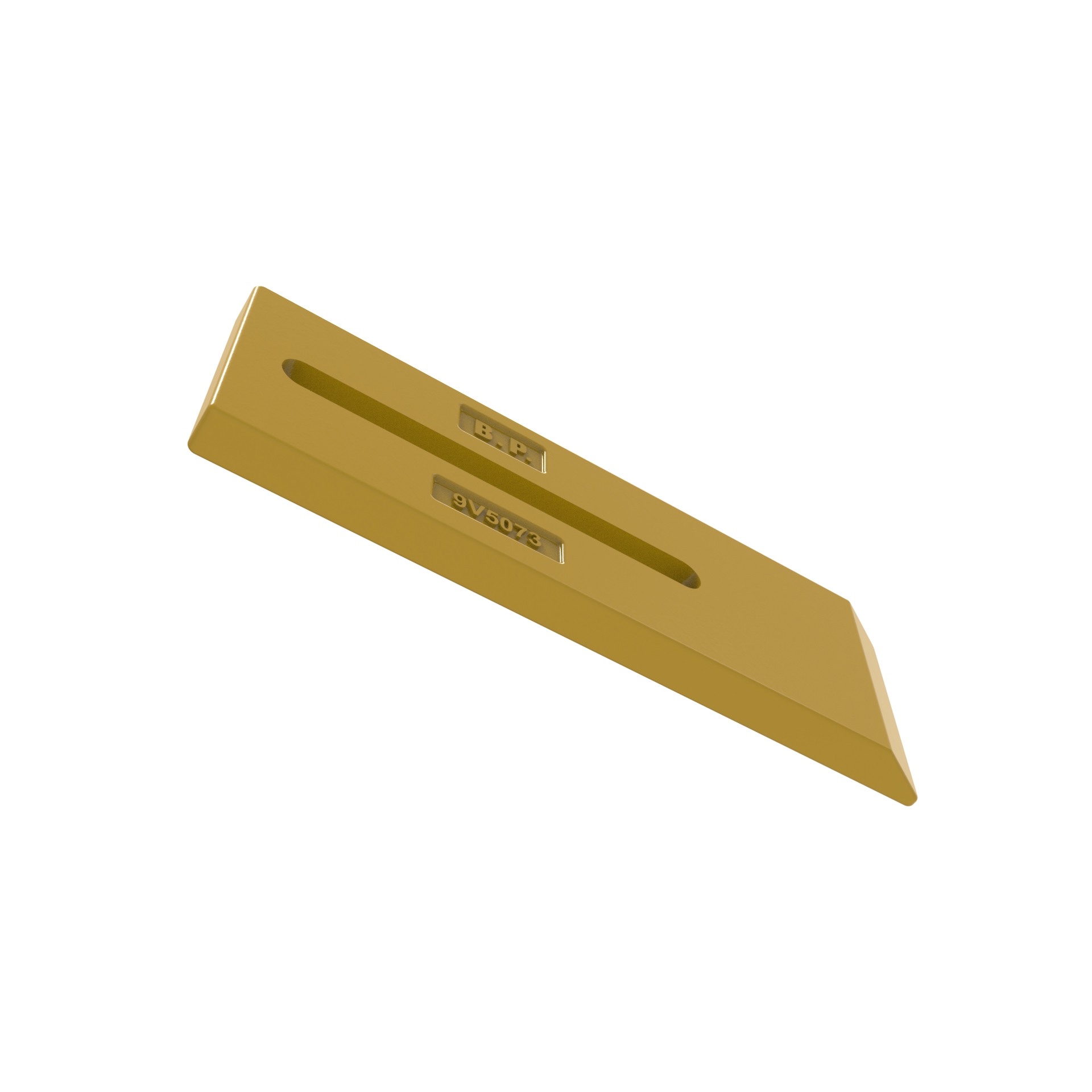

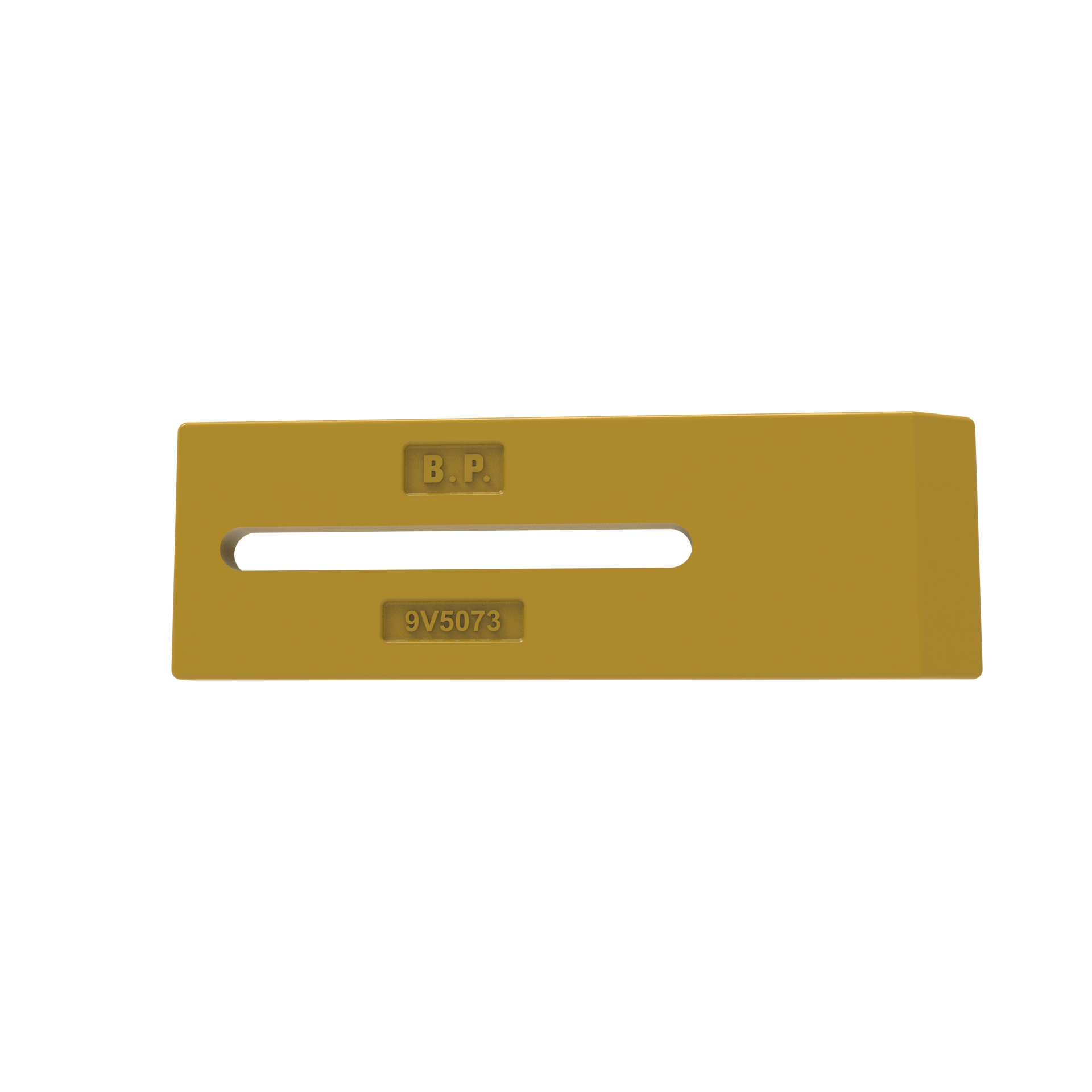

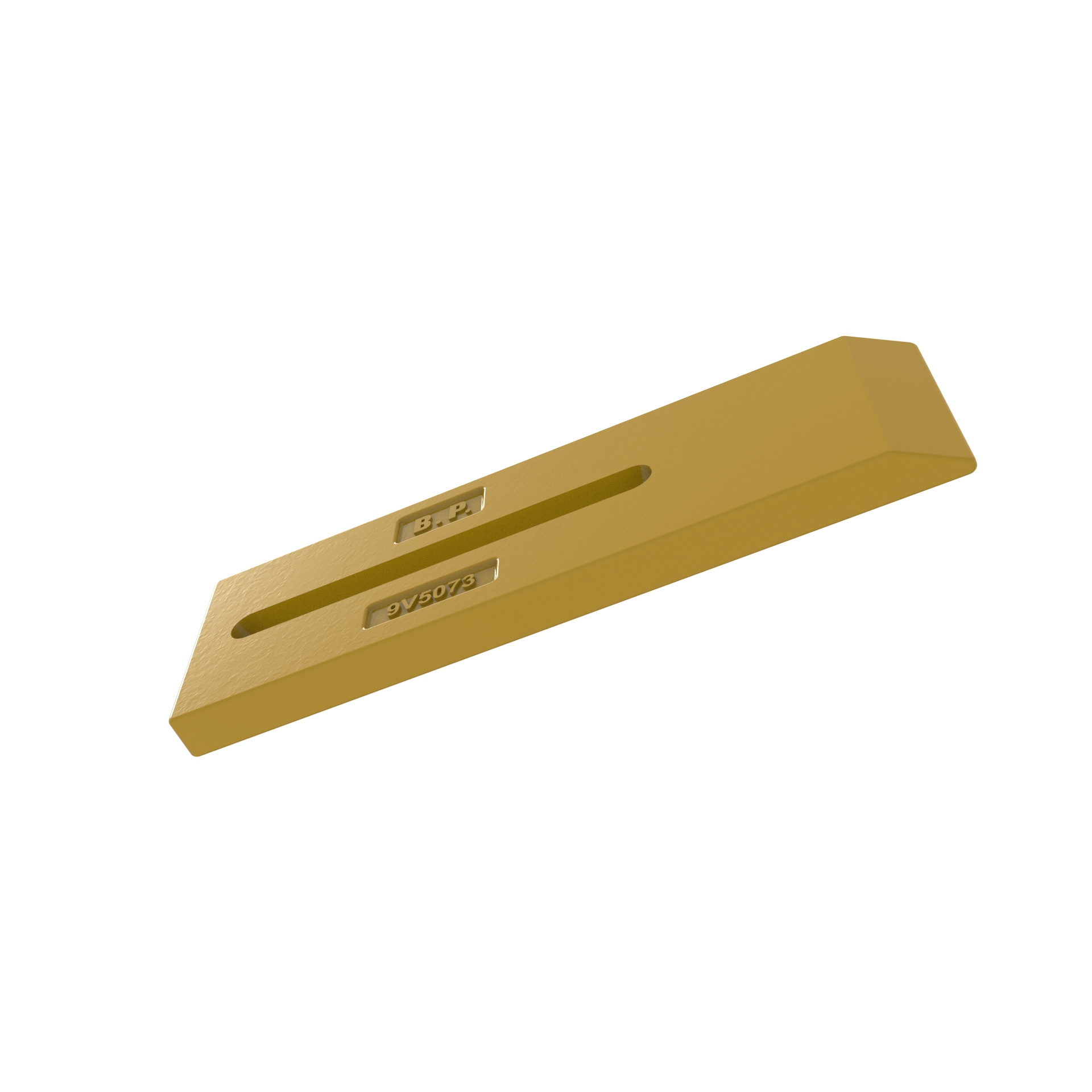

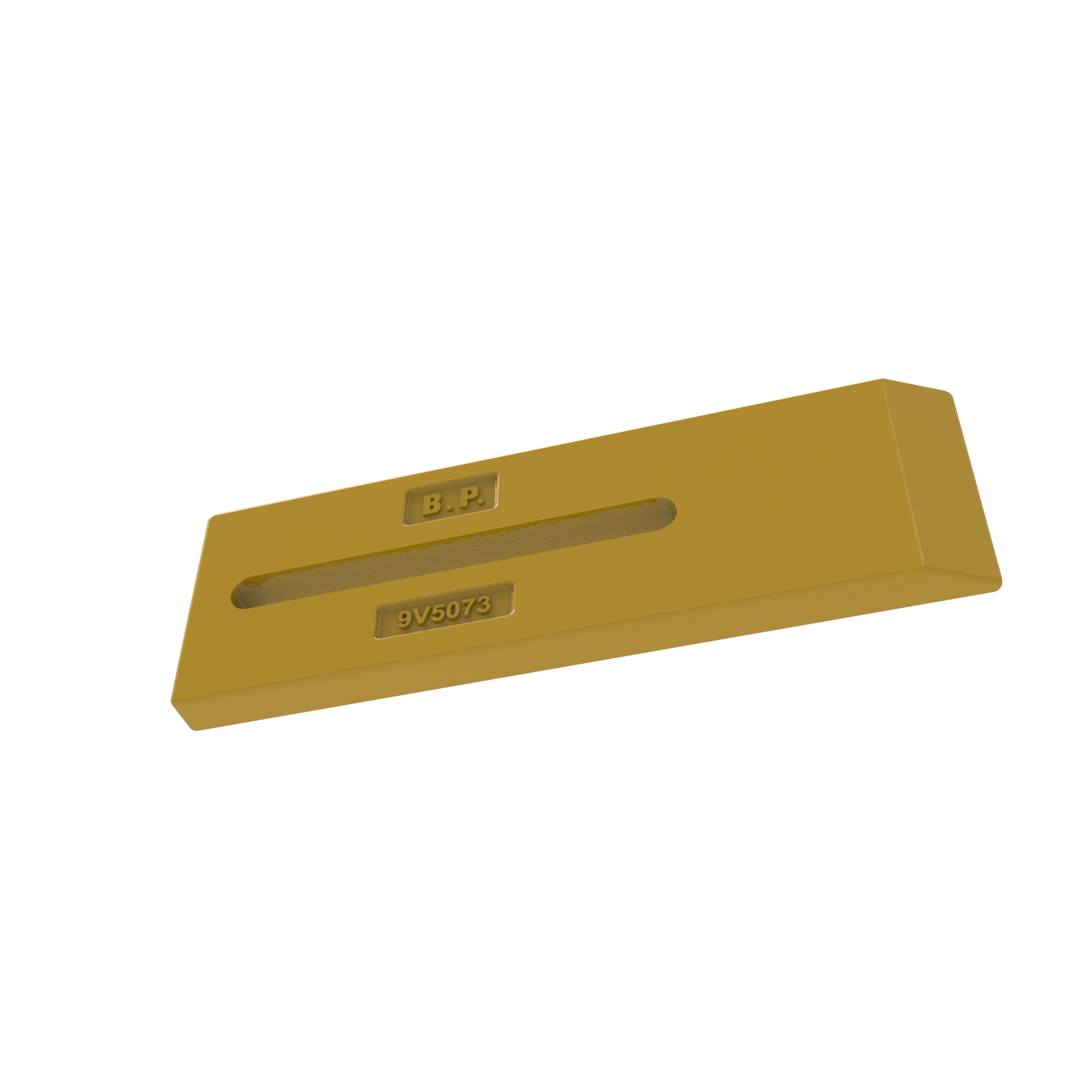

Product Specification: Steel Cleaner Bar
| Item | Specification |
|---|---|
| Part Number | 9V5073 |
| Product Name | Steel Cleaner Bar |
| Product Type | Cleaner Bar for Compactor Drum |
| Compatible Machine Models | Caterpillar 825, 825G II, 825H, 825G, 825K |
| Application | Cleans and prevents material buildup on compactor drums. |
| Main Bar Dimensions | 400 × 130 × 25 mm (Length × Width × Thickness) |
| Finger Slot Dimensions | 1 slot, 235 × 22 mm (Length × Width) |
| Thickness | 25 mm |

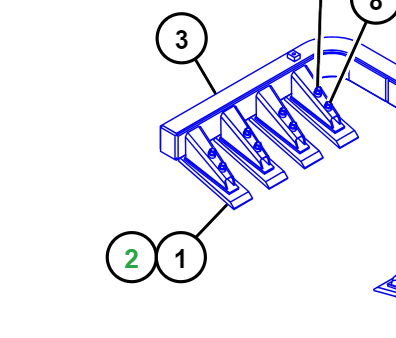

| Associated Parts | Retainer Bar: 3S-3225, Finger AS: 2V-7985 |
Note:
This steel cleaner bar is designed to clean and prevent material adhesion on compactor drums, ensuring optimal compaction performance.
It must be used with the specified associated parts: Retainer Bar 3S-3225 and Finger AS 2V-7985 for proper installation and function.
The 25mm thickness provides durability in heavy-duty applications.
Please verify the exact compatibility with your specific compactor model and drum configuration before installation.
