6803W-65SV2
| Availability: | |
|---|---|
Item | Specification |
|---|---|
Part Number | 6803W-65SV2 |

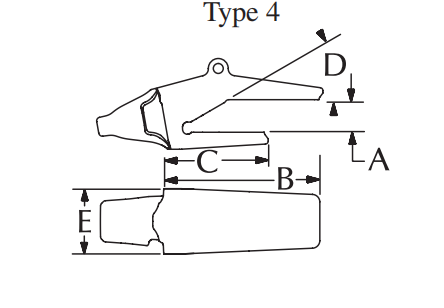

Type | 4 |
Description | 1-1/2 Top Leg |
A – Lip Thickness (mm/in) | 90 / 3.50 |
B – Top Leg (mm/in) | 368 / 14.50 |
C – Bottom Leg (mm/in) | 221 / 8.70 |
D – Ramp Angle (deg) | 30 |
E – Adapter Width (mm/in) | 180 / 7.12 |
F – Nose Angle (deg) | 10 |
Weight (kg/lb) | 62 / 136 |
Machine Type | Backhoe / HFS |
Compatible Machine Class | Medium-Large Excavators (20-35 ton operating weight) |
Typical Applications | Komatsu PC200-300, Caterpillar 320-330, Hitachi ZX200-300, Volvo EC200-300, Hyundai R210-290 |
