5838RW-65SV2
| Availability: | |
|---|---|
Item | Specification |
|---|---|
Part Number | 5838RW-65SV2 |

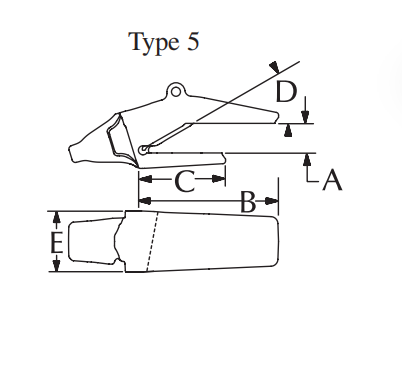

Type | 5 |
Description | 1-1/2 Top Leg Spade |
A – Lip Thickness (mm/in) | 90 / 3.50 |
B – Top Leg (mm/in) | 413 / 16.25 |
C – Bottom Leg (mm/in) | 242 / 9.53 |
D – Ramp Angle (deg) | 30 |
E – Adapter Width (mm/in) | 180 / 7.12 |
F – Nose Angle (deg) | 17 |
Weight (kg/lb) | 67 / 148 |
Machine Type | FEL (Front End Loader) |
Compatible Machine Class | Medium-Large Excavators (20-35 ton) |
Typical Applications | Komatsu PC200-300, Caterpillar 320-330, Hitachi ZX200-300 |
