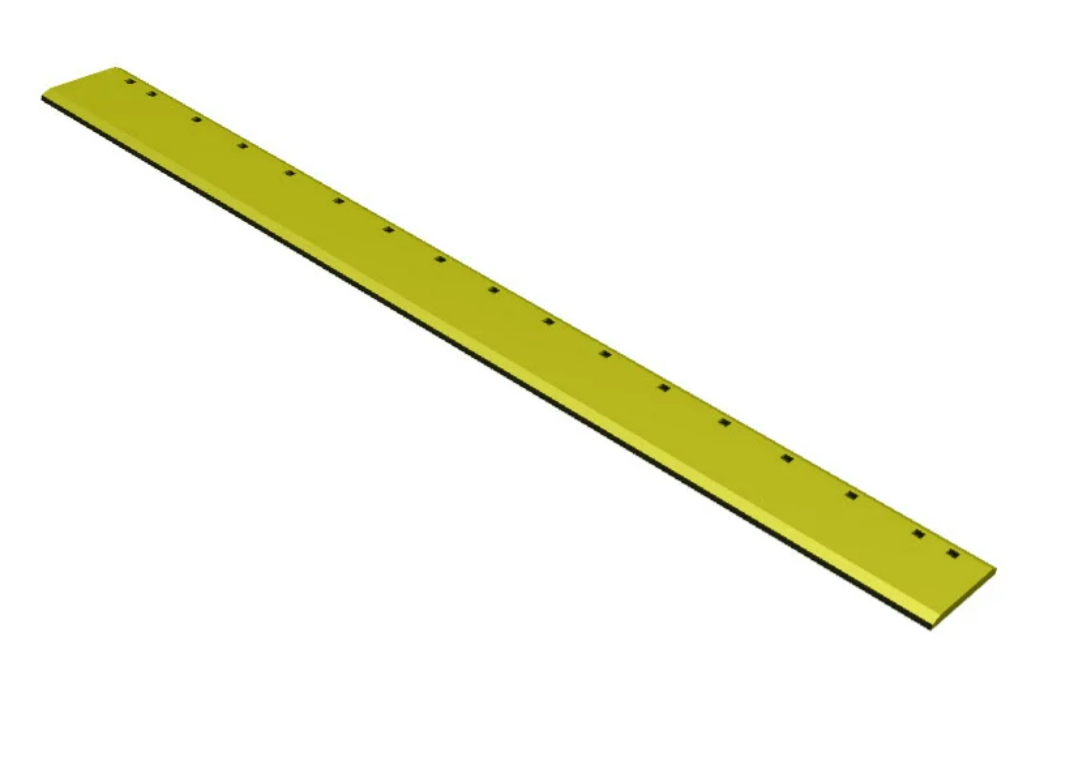

Product Specification: Flat Grader Blade
| Item | Specification |
|---|---|
| Part Number | 235-70-12320 |
| Product Name | Flat Grader Blade |
| Product Type | Motor Grader Cutting Edge |
| Compatible Machine Models | Komatsu GD825A Motor Grader |
| Application | General grading and leveling |
| Dimensions (Length × Height × Thickness) | 2438 mm × 254 mm × 25 mm (96 in × 10 in × 1 in) |
| Mounting Holes | 17 holes, 3/4 inch diameter |
| Edge Type | Flat (Standard) |
| Single Weight | 115.1 kgs (253.8 lbs) |
Note:
This flat grader blade is designed for the Komatsu GD825A motor grader, suitable for general grading, leveling, and maintenance applications.
Standard 8-foot length (2438 mm / 96 inches) with 10-inch height and 1-inch (25mm) thickness.
Features 17 mounting holes with 3/4-inch diameter for secure attachment to the moldboard.
Manufactured from through-hardened steel for optimal wear resistance and durability.
Please verify exact compatibility with your specific moldboard mounting configuration and bolt pattern before installation.
If you need specification sheets for serrated blades, end bits, or other related motor grader wear parts, please feel free to let us know.
