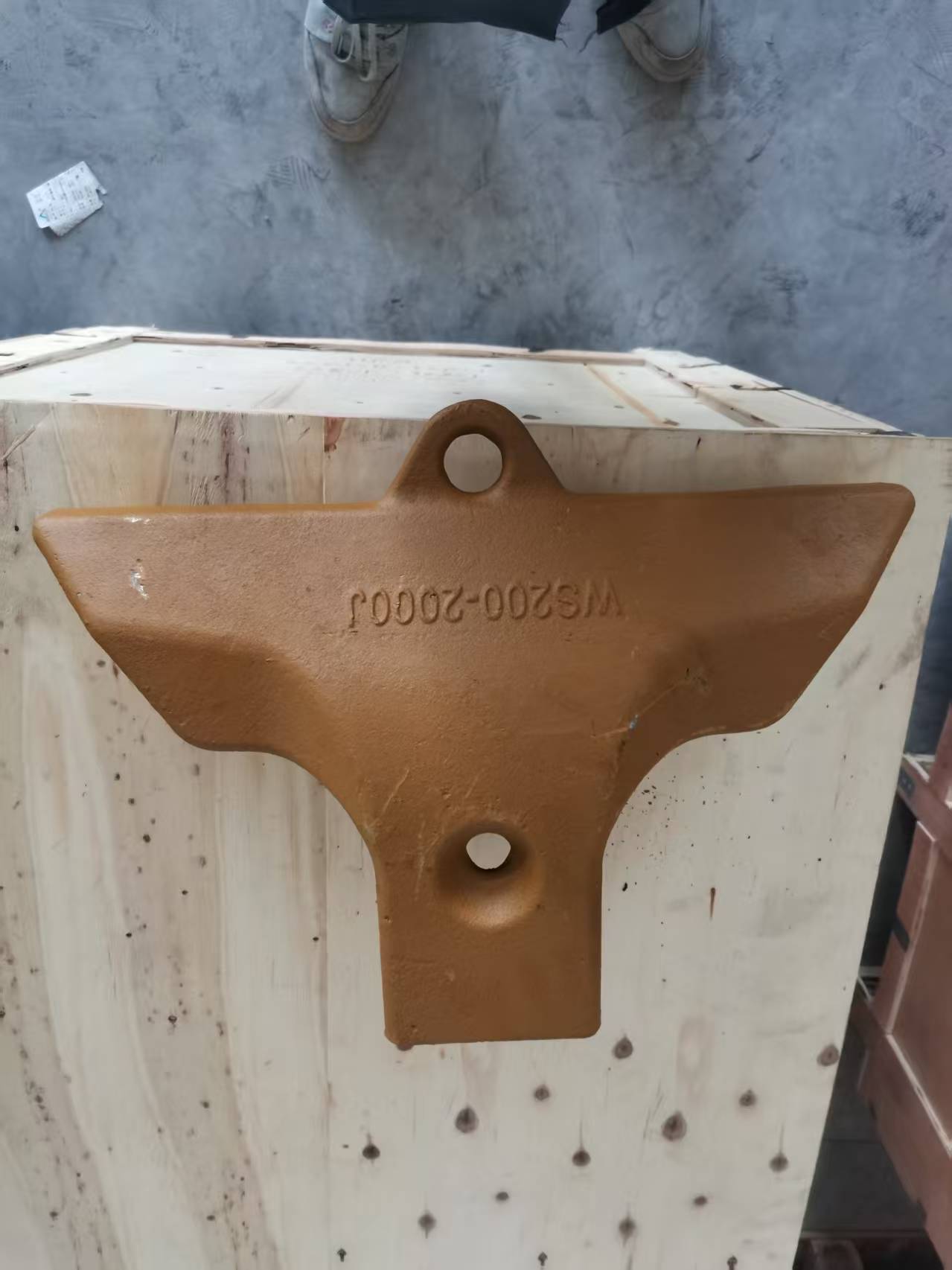

WS2002000J
| Item | Specification | |
|---|---|---|
| Part Number | WS2002000J (Also referred to as: HL-WS200-2000J) | |
| Product Name | J-Bolt Wing (Vertical) Shroud | |
| Product Type | Specialized Wear Protection for Bucket | |
| Compatible Machine Models | Hensley PC2000 (and other similar large excavators/face shovels) | |
| Application | Protects the bucket wing from severe abrasion and impact in heavy-duty mining and excavation. | |
| Design Feature | Vertical J-Bolt Attachment | |
| Dimension A | 19.0 in | 483 mm |
| Dimension B | 5.0 in | 127 mm |
| Dimension C | 11.5 in | 292 mm |
| Dimension D | 2.4 in | 60 mm |
| Dimension E | 2.1 in | 52 mm |
| Dimension F | 3.0 in | 76 mm |
| Single Weight | 65.0 lb | 29.5 kg |
| Part No. | A (in/mm) | B (in/mm) | C (in/mm) | D (in/mm) | E (in/mm) | F (in/mm) | Weight (lb/kg) |
|---|---|---|---|---|---|---|---|
| WS2002000J | 19.0 / 483 | 5.0 / 127 | 11.5 / 292 | 2.4 / 60 | 2.1 / 52 | 3.0 / 76 | 65.0 / 29.5 |
| WS2753100J | 31.5 / 800 | 8.4 / 213 | 17.0 / 432 | 4.1 / 103 | 2.8 / 72 | 4.0 / 102 | 262.0 / 118.8 |
| WS3002100J | 21.0 / 533 | 6.5 / 165 | 13.0 / 330 | 3.1 / 79 | 3.25 / 83 | 3.5 / 89 | 138.0 / 62.6 |
| WS3002150J | 21.5 / 546 | 6.5 / 165 | 13.5 / 343 | 3.1 / 79 | 3.2 / 81 | 4.0 / 102 | 140.0 / 63.5 |
| WS3002200J | 22.0 / 559 | 8.4 / 213 | 17.0 / 432 | 4.1 / 103 | 3.2 / 82 | 4.0 / 102 | 203.0 / 92.1 |
| WS3503350J | 33.5 / 851 | 8.4 / 213 | 18.0 / 457 | 4.1 / 103 | 3.6 / 92 | 5.0 / 127 | 307.0 / 139.3 |
| WS4002400J | 24.0 / 610 | 8.4 / 213 | 19.75 / 502 | 4.1 / 103 | 4.2 / 106 | 6.75 / 171 | 340.0 / 154.2 |
| WS4753000J | 30.5 / 775 | 10.5 / 267 | 19.0 / 483 | 4.5 / 114 | 4.9 / 123 | 7.0 / 178 | 418.0 / 189.6 |
| WS5503200J | 32.5 / 826 | 10.5 / 267 | 19.0 / 483 | 4.5 / 114 | 5.7 / 144 | 7.0 / 178 | 520.0 / 235.9 |
Key Features:
Heavy-Duty Construction: Engineered for demanding mining applications on the Komatsu PC2000
J-Bolt Mechanical System: Self-tightening design reduces wear and allows quick shroud changes with reduced downtime
Wing Protection: Shields the bucket wing and lip areas from severe wear and impact damage
Wear-Resistant Alloy Steel: Manufactured from high-strength material for extended service life
Critical Bucket Wear Component: Extends overall bucket service life and reduces maintenance costs
Direct OEM Replacement: Designed to meet OEM specification replacement standards
Compatible Equipment:
Komatsu PC2000 – Mining Excavator
Applications:
Surface mining
Quarrying
Material handling
Heavy excavation
Bucket lip and wing protection
Replacement Information:
This J-Bolt shroud serves as a direct aftermarket replacement with OEM reference WS200-2000J for Komatsu PC2000 mining excavators. The J-Bolt mechanical system is self-tightening to the lip, reducing wear, and provides higher hardness than weld-on shrouds for longer wear life. Shroud changes are quick, and downtime is reduced compared to welding.
Disclaimer: Beneparts is not affiliated with Komatsu or Hensley. All trademarks are used for identification and compatibility reference purposes only.
Related Parts:
J-Bolt welded bases and hardware
Additional wing shrouds and side protection components
Bucket wear protection kits available upon request
FAQ:
Q: Is the WS200-2000J a direct replacement for the OEM shroud?
A: Yes, the WS200-2000J is manufactured as an aftermarket replacement with OEM specification replacement standards for Komatsu PC2000 wing shrouds.
Q: What machine is this shroud compatible with?
A: It is specifically designed for the Komatsu PC2000 mining excavator. Verify compatibility with your specific bucket configuration before installation.
Q: What is the weight of the WS200-2000J shroud?
A: The single weight is 31 kgs.
Q: What is the J-Bolt system?
A: The J-Bolt system is a fully mechanical attachment method that is self-tightening to the lip, reducing wear and providing quick shroud changes with reduced downtime.
Q: What material is this shroud made from?
A: The WS200-2000J is manufactured from high-strength, wear-resistant alloy steel for durability in demanding applications.
Q: What is the lead time for this replacement part?
A: Please contact our sales team for current stock availability and shipping estimates.
