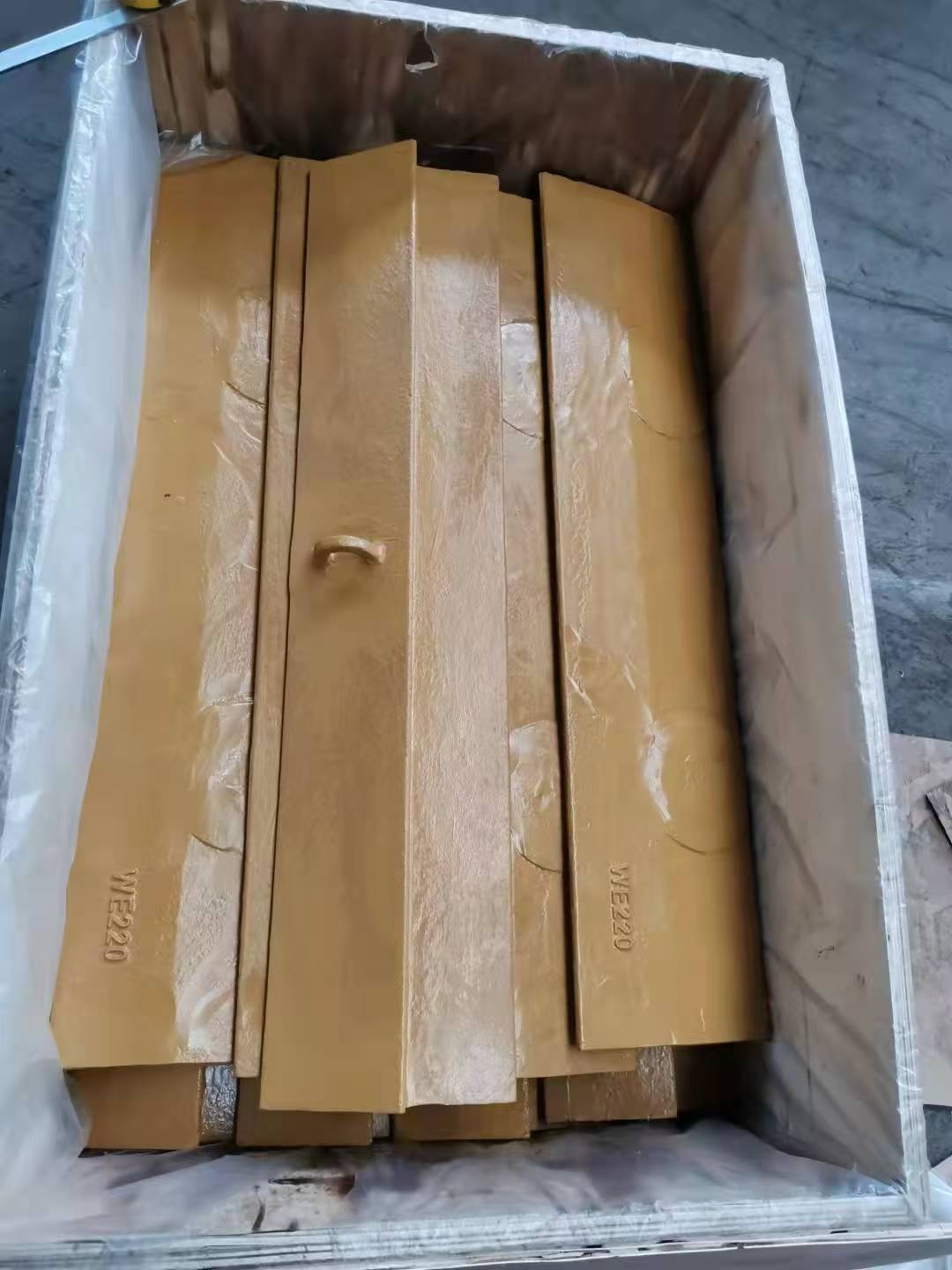

Product Data Sheet: WE220 Weld-On Wear Edge Half Arrow Casting
Part Number: WE220
Product Name: Weld-On Wear Edge Half Arrow
The WE220 is a heavy-duty weld-on wear edge half arrow manufactured using premium casting technology. Designed for extreme abrasion resistance, this component provides superior protection for bucket edges and cutting surfaces in demanding mining and construction applications.
| Parameter | Specification | Description |
|---|---|---|
| Product Type | Weld-On Wear Edge Half Arrow | Cast construction |
| Length | 1000 mm | Total edge length |
| Width | 220 mm | Overall width dimension |
| Slot Height | 40 mm | Mounting slot height |
| Overall Height | 65 mm | Total profile height |
| Weight | 50.5 kg | Single piece weight |
| Material | Cast Alloy Steel | Premium cast construction |
| Installation | Welding | Weld-on application |
Heavy-Duty Protection: 220mm width provides extensive wear protection for bucket edges
Robust Construction: Cast manufacturing ensures consistent quality and durability
Easy Installation: Prefabricated design allows for straightforward welding application
Optimal Dimensions: 65mm overall height with 40mm slot for secure mounting
Extended Service Life: Designed to withstand severe abrasive conditions
Cost-Effective: Reduces maintenance costs and downtime for edge replacement
Mining bucket edge protection
Loader bucket wear edges
Excavator cutting edge reinforcement
Heavy equipment edge maintenance
Abrasive material handling applications
Requires professional welding installation
Ensure proper surface preparation before welding
Recommended for use on compatible base materials
Regular inspection recommended for optimal performance
