Other V61 serie
| Reference | Description* | Weight kg / lb | A mm / in | B mm / in | C mm / in |
|---|---|---|---|---|---|
| V61AD | NCL | 33,6 / 74 | 381 / 15,00 | 109 / 4,31 | 170 / 6,69 |
| V61AG | NCL | 34,9 / 77 | 381 / 15,00 | 197 / 7,75 | 170 / 6,69 |
| V61ARL | NCL | 38,6 / 85 | 368 / 14,50 | 178 / 7,00 | 170 / 6,69 |
| V61RY | CL | 22,2 / 49 | 315 / 12,40 | 152 / 6,00 | 170 / 6,69 |

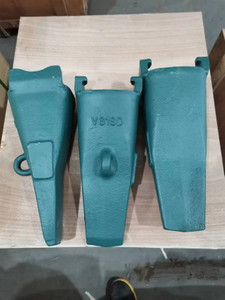

| V61SD | CL | 26,3 / 58 | 381 / 15,00 | 89 / 3,50 | 170 / 6,69 |
| V61SHV | CL | 31,3 / 69 | 364 / 14,33 | 173 / 6,80 | 170 / 6,69 |
| V61SYL | CL | 23,6 / 52 | 349 / 13,75 | 152 / 6,00 | 170 / 6,69 |
| V61TG | NCL | 28,6 / 63 | 349 / 13,75 | 191 / 7,50 | 170 / 6,69 |
| V61TVP | NCL | 28,6 / 63 | 413 / 16,25 | 231 / 9,10 | 170 / 6,69 |
| V61VX | NCL | 20,9 / 46 | 413 / 16,25 | 28 / 1,12 | 170 / 6,69 |
| Item | Specification |
|---|---|
| Part Number / Reference | V61VX |
| Product Type | Bucket Tooth (Tiger Type) |
| Application | Mining & Heavy-Duty Excavation |
| Compatible Machine Model | Hitachi ZX870 (And other similar class excavators) |
| Single Weight | 23.5 kgs (51.8 lbs) |
| Overall Length (A) | 413 mm (16.25 in) |
| Width (B) | 28 mm (1.12 in) |
| Height (C) | 170 mm (6.69 in) |
| Description Code | NCL |
| Key Features | - Designed for extreme abrasion and impact conditions in mining. - Tiger tooth profile for superior penetration and rock breaking. - Optimized alloy steel construction for extended service life. |
V61VX tiger bucket tooth
ZX870 mining tooth
Tiger tooth for excavator
23.5 kg bucket tooth
V61 series tooth
Hitachi ZX870 ground engaging tool
Replacement tooth for ZX870
Mining excavator tiger tooth

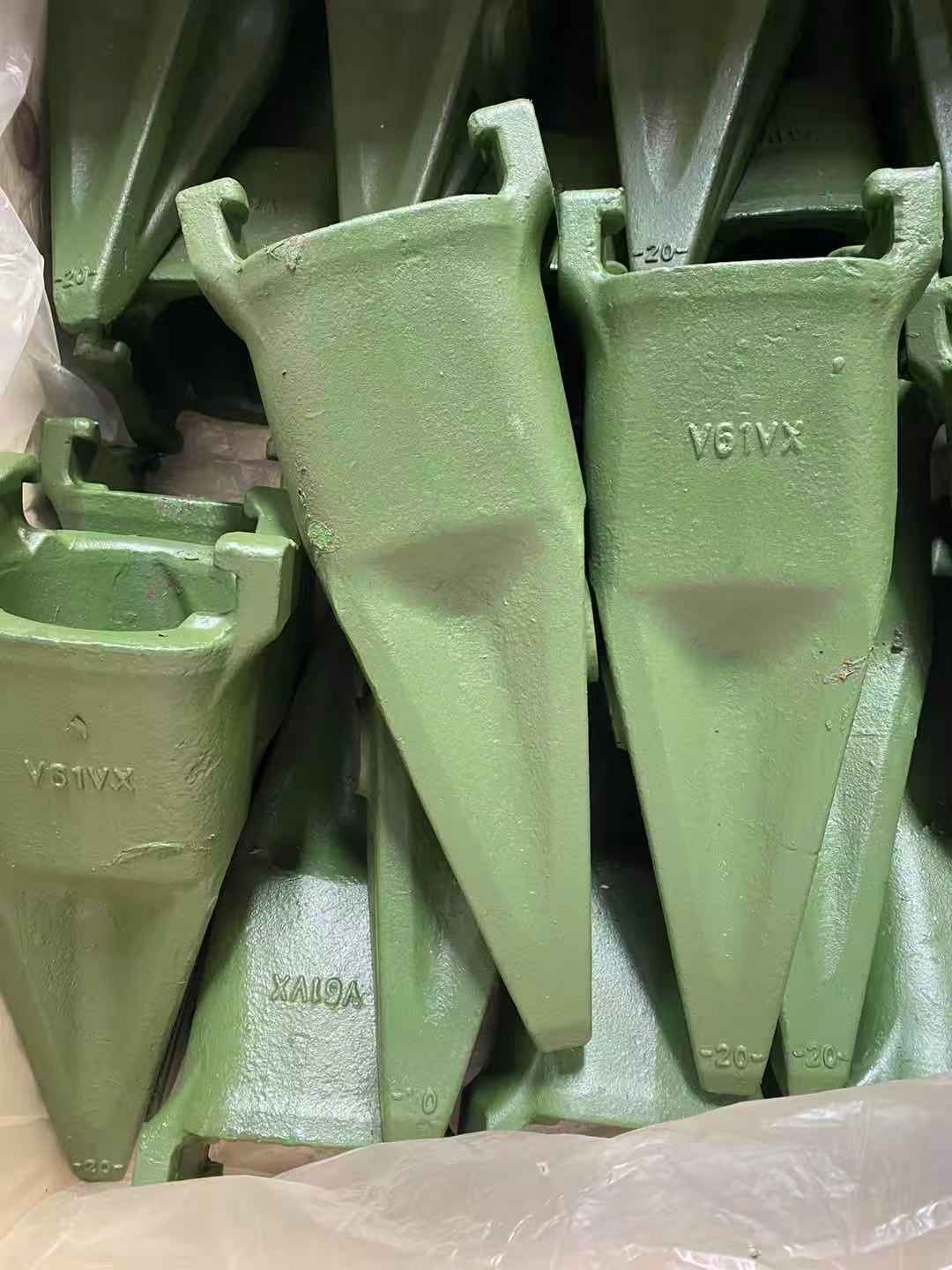

The V61VX Tiger Bucket Tooth is a genuine OEM-specification ground engaging tool designed for the V61 tooth system, compatible with Hitachi ZX870 mining excavators. This Tiger profile tooth is engineered for heavy-duty mining and excavation, offering excellent penetration and wear resistance in severe conditions.
The Tiger profile provides an aggressive, sharp nose design optimized for maximum penetration in hard and compacted materials, making it ideal for surface mining, quarrying, and hard rock digging applications.
| Feature | Benefit |
|---|---|
| Tiger Profile | Aggressive design for maximum penetration |
| V61 System Design | Engineered for large excavators |
| High-Strength Alloy Steel | Superior toughness and wear resistance |
| Self-Sharpening Design | Maintains penetration throughout life |
| ZX870 Optimized | Specifically engineered for Hitachi ZX870 |
| Direct OEM Replacement | Guaranteed fit and performance |
| Specification | Detail |
|---|---|
| Machine Model | Hitachi ZX870 Mining Excavator |
| Machine Type | Large Mining Excavator |
| Operating Weight | ~80,000 - 90,000 kg |
| Application | Surface mining, hard rock excavation, quarrying |
| Component | Description |
|---|---|
| Compatible Adapter | V61 series adapter |
| Locking Pin | V61 series retention pin |
Adapter Compatibility: Use only with V61 series adapter
Pin Installation: Use OEM-specified retention pin; ensure secure fit
Lifting Note: At 23.5 kg, proper lifting techniques are recommended
Regular Inspection: Check tooth for wear and damage periodically
Replacement: Replace when worn beyond OEM specifications
| Condition | Action |
|---|---|
| New tooth - full profile | Normal operation |
| Moderate wear | Monitor regularly |
| Excessive wear (loss of profile) | Replace tooth |
| Broken or cracked tooth | Replace immediately |
| Item | Detail |
|---|---|
| Part Number | V61VX |
| Type | Tiger Bucket Tooth |
| System | V61 Series |
| Weight | 23.5 kg per piece |
| Compatibility | Hitachi ZX870 Mining Excavator |
| Packaging | Individual crate |
Note: This is a Tiger bucket tooth for Hitachi ZX870 mining excavators. Verify machine model and adapter compatibility before ordering. Due to weight (23.5 kg), proper lifting techniques are recommended during installation.
