P050HDL
| Feature | Specification | Notes / Details |
|---|---|---|
| Product Reference | P050HDL | |
| System | K-Prime / P050 | Compatible with K-Prime locking system. |
| Tooth Type | Loader (Basic Duty) | Designed for wheel loaders and basic duty applications. |
| Machine Weight Range | 46,500 kg to 69,100 kg | Ideal for loaders in this operating weight class. |
| Weight | 26.0 kg | |

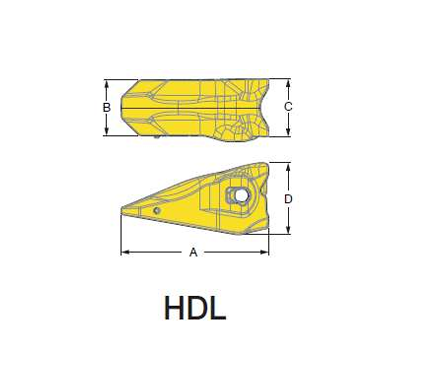

| Dimensions | ||
| - A (Length) | 353 mm | |
| - B (Height/Width) | 133 mm | |
| - C (Profile Height) | 138 mm | |
| - D (Base Width) | 155 mm |
Key Advantages:
Optimal for Loaders: Specifically engineered for the loading cycles of wheel loaders.
Proven P050 System: Benefits from the widespread compatibility and reliability of the P050 system.
Precise Fit: Guaranteed compatibility with adapters designed for the P050HDL reference.
The P050 tooth must be used with the correct adapter for secure attachment. The suffix "L" typically denotes a Left-handed or Long adapter for specific positions like side cutters.
| Adapter Model | Description |
|---|---|
| 1060P050 | Standard Adapter |
| 1065P050 | Standard Adapter |
| 1050P050 | Standard Adapter |
| 1070P050 | Standard Adapter |
| 1060P050L | Left-hand/Long Adapter |
| 1065P050L | Left-hand/Long Adapter |
| 1050P050L | Left-hand/Long Adapter |
