Product Specification: Bucket Weld-on Heel Shroud
| Item | Specification |
|---|---|
| Part Number | HS188 |
| Product Name | Bucket Weld-on Heel Shroud |
| Product Type | Bucket Heel Wear Protection (Weld-on) |
| Application | Protects the bucket heel from severe abrasion and impact. |

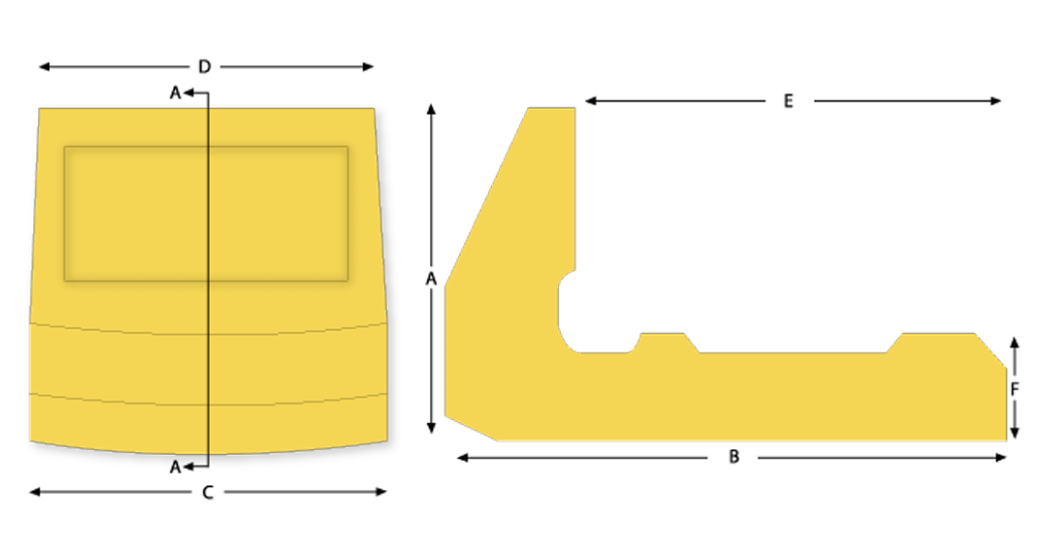

| Dimension A | 150 mm |
| Dimension B | 250 mm |
| Dimension C | 188 mm |
| Dimension D | 178 mm |
| Dimension E | 194 mm |
| Dimension F | 48 mm |
| Single Weight | 23 kgs |
Note:
This weld-on heel shroud is designed to protect the bucket heel area from wear.
As a weld-on component, it is permanently attached to the bucket.
Please verify the exact compatibility with your specific bucket model and heel configuration before welding.
If you need specification sheets for other related bucket wear parts, please feel free to let us know.
