Product Data Sheet: V69 Series Ground Engaging Tools (GET) System

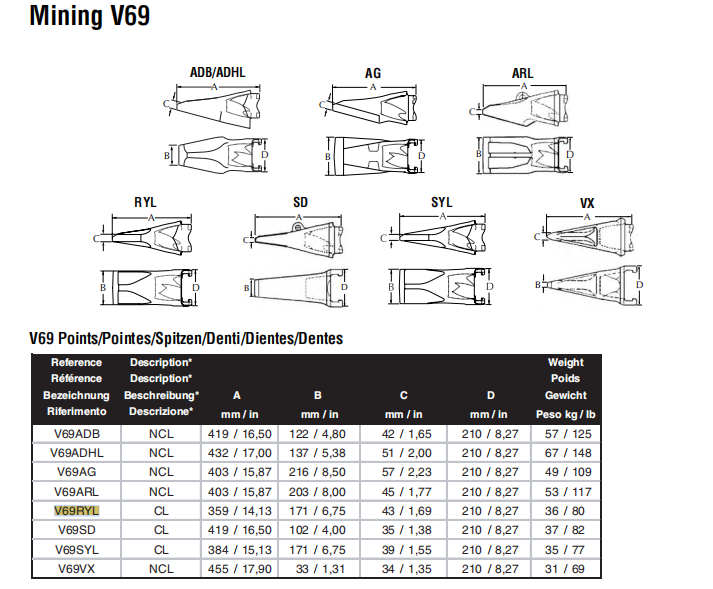

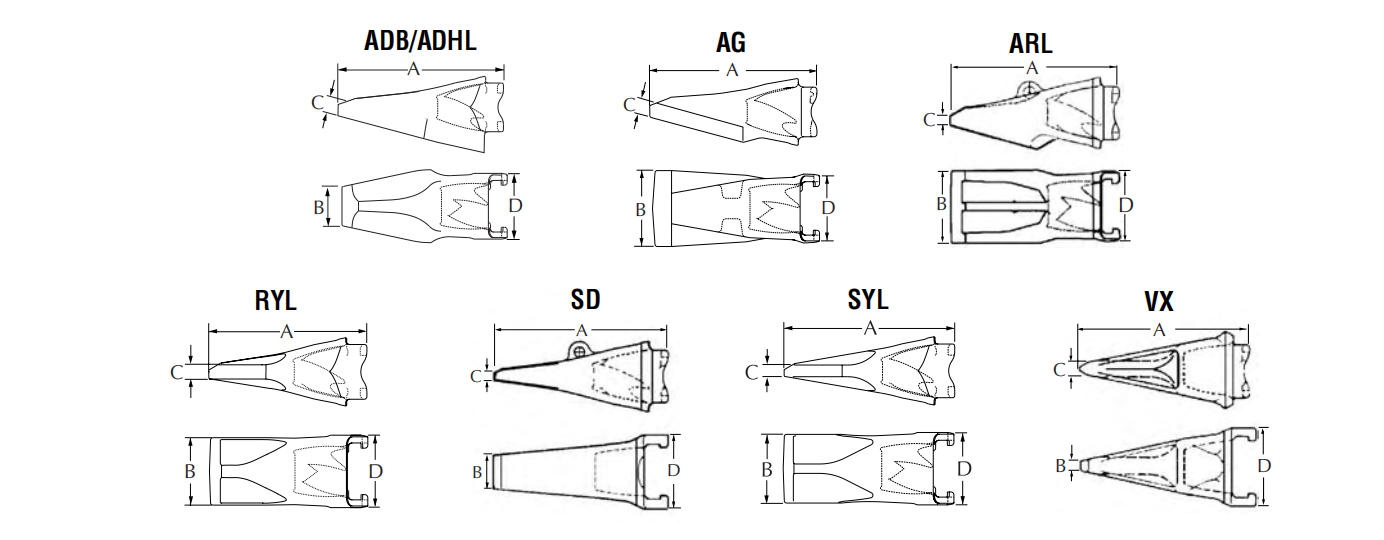

1. V69 Series Points/Teeth Overview
The V69 series is a comprehensive system of interchangeable points designed for a wide range of excavator and loader applications. The series includes various profiles (CL = Center Long, NCL = Non-Center Long) to suit different operating conditions.

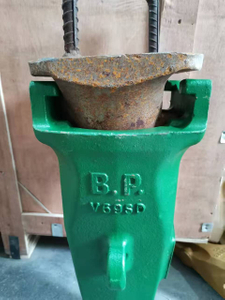

| Reference | Description* | A (mm / in) | B (mm / in) | C (mm / in) | D (mm / in) | Weight (kg / lb) |
|---|---|---|---|---|---|---|
| V69ADB | NCL | 419 / 16.50 | 122 / 4.80 | 42 / 1.65 | 210 / 8.27 | 57 / 125 |
| V69ADHL | NCL | 432 / 17.00 | 137 / 5.38 | 51 / 2.00 | 210 / 8.27 | 67 / 148 |
| V69AG | NCL | 403 / 15.87 | 216 / 8.50 | 57 / 2.23 | 210 / 8.27 | 49 / 109 |
| V69ARL | NCL | 403 / 15.87 | 203 / 8.00 | 45 / 1.77 | 210 / 8.27 | 53 / 117 |
| V69RYL | CL (Short Tip) | 359 / 14.13 | 171 / 6.75 | 43 / 1.69 | 210 / 8.27 | 36 / 80 |
| V69SD | CL | 419 / 16.50 | 102 / 4.00 | 35 / 1.38 | 210 / 8.27 | 37 / 82 |
| V69SYL | CL | 384 / 15.13 | 171 / 6.75 | 39 / 1.55 | 210 / 8.27 | 35 / 77 |
| V69VX | NCL | 455 / 17.90 | 33 / 1.31 | 34 / 1.35 | 210 / 8.27 | 31 / 69 |

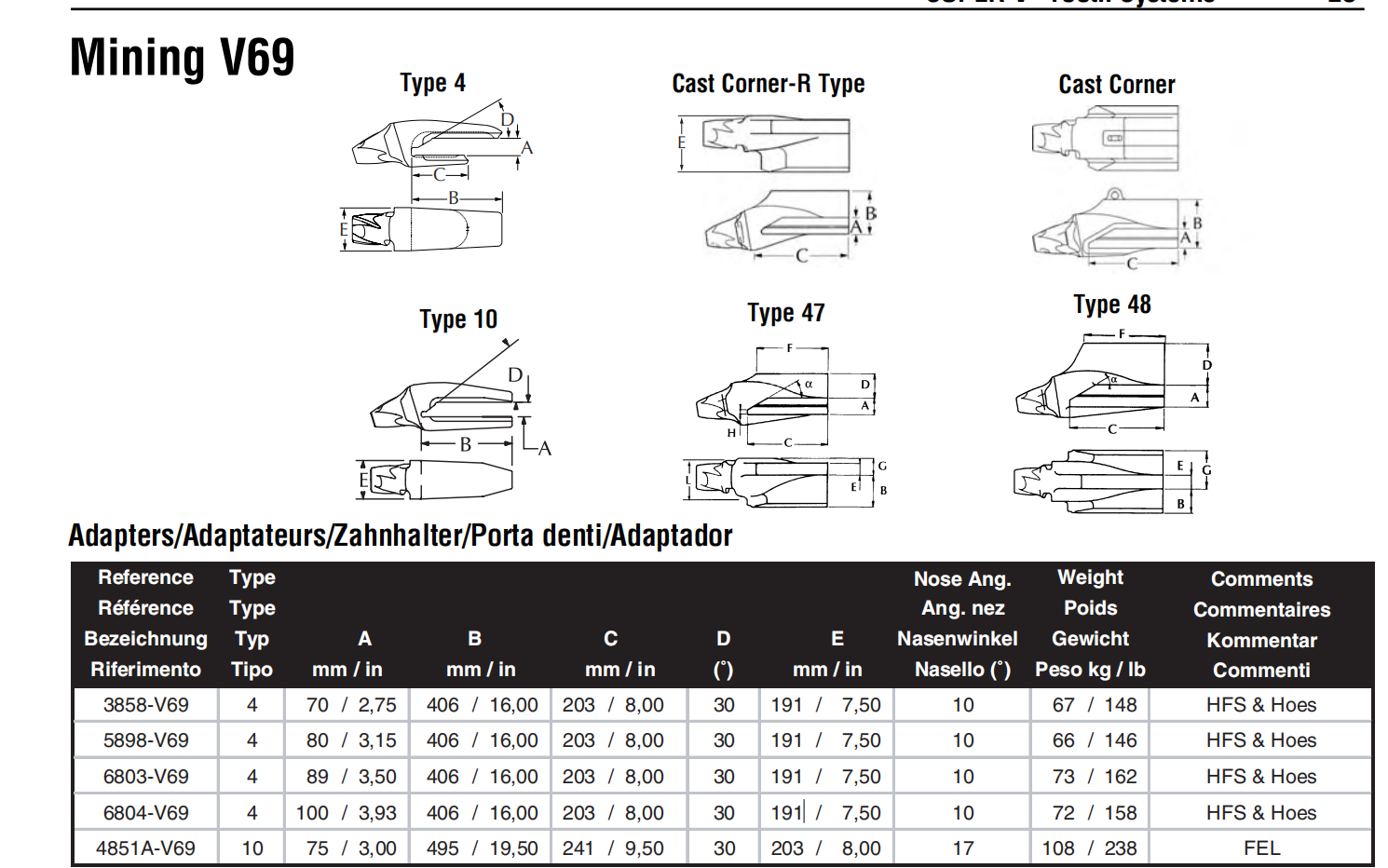

2. Compatible Adapters (Shanks/Noses)
The V69 series teeth are designed to be mounted on the following compatible adapters. The selection depends on the host machine and attachment type (HFS & Hoes = Hydraulic Hammers and Excavator Buckets; FEL = Front End Loader).
| Adapter Reference | Qty | E (mm / in) | F (mm / in) | G (mm / in) | H (mm / in) | J (mm / in) | K | Weight (kg / lb) | Application |
|---|---|---|---|---|---|---|---|---|---|
| 3858-V69 | 4 | 70 / 2.75 | 406 / 16.00 | 203 / 8.00 | 30 | 191 / 7.50 | 10 | 67 / 148 | HFS & Hoes |
| 5898-V69 | 4 | 80 / 3.15 | 406 / 16.00 | 203 / 8.00 | 30 | 191 / 7.50 | 10 | 66 / 146 | HFS & Hoes |
| 6803-V69 | 4 | 89 / 3.50 | 406 / 16.00 | 203 / 8.00 | 30 | 191 / 7.50 | 10 | 73 / 162 | HFS & Hoes |
| 6804-V69 | 4 | 100 / 3.93 | 406 / 16.00 | 203 / 8.00 | 30 | 191 / 7.50 | 10 | 72 / 158 | HFS & Hoes |
| 4851A-V69 | 10 | 75 / 3.00 | 495 / 19.50 | 241 / 9.50 | 30 | 203 / 8.00 | 17 | 108 / 238 | FEL |
3. Key Features of the V69RYL (as requested)
Profile: Center Long (CL) with a Short Tip design.
Key Characteristic: The compact and robust design of the V69RYL provides enhanced strength and impact resistance, making it suitable for excavators and loaders subject to heavy loads.
Benefit: Ideal for applications where high impact and penetration are required, offering a balance of durability and performance.
