109-9030
Product Data Sheet: Caterpillar 109-9030 Edge-Segment Half Arrow
Part Number: 109-9030 / 1099030
Product Name: Edge-Segment Half Arrow Segment
The Caterpillar 109-9030 is a heavy-duty edge-segment half arrow specifically engineered for large wheel loaders operating in extreme conditions. This critical wear component provides superior protection to the bucket's cutting edge and main structure, significantly extending equipment service life in high-abrasion environments.

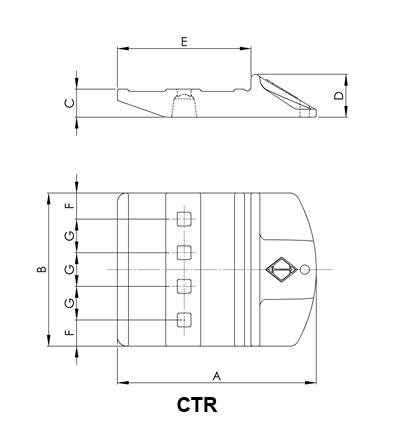

| Parameter | Metric (mm) | Imperial (inch) | |
|---|---|---|---|
| A | 593 mm | 23.35 inch | |
| B | 440 mm | 17.32 inch | |
| C | 75 mm | 2.95 inch | |
| D | 140 mm | 5.51 inch | |
| E | 437 mm | 17.20 inch | |
| F | 85 mm | 3.35 inch | |
| G | 50 mm | 1.97 inch |
This part is designed to be used in conjunction with the following components to form a complete GET system:
| Part Number | Description |
|---|---|
| 109-9030 | Half Arrow CTR |
| 109-9031 | Half Arrow RH |
| 109-9032 | Half Arrow LH |
Compatible Loader Models:
994
994F
994D
994K
994H
Primary Applications:
Mining operations
Heavy-duty loading applications
Large-scale earthmoving projects
Quarry and aggregate processing
Enhanced Protection: Specifically designed to protect bucket edges from extreme wear in mining applications
Optimized Geometry: Precision dimensions ensure perfect fitment and maximum material flow efficiency
Heavy-Duty Construction: Engineered to withstand the most demanding loading conditions
Extended Service Life: High-quality materials and optimal thickness distribution provide longer operational life
Reduced Downtime: Easy installation and reliable performance minimize maintenance requirements
This genuine Caterpillar edge-segment half arrow delivers unmatched reliability and performance for your 994-series loader. The precise engineering and robust construction ensure optimal protection for your equipment, reducing total operating costs through extended service life and minimized downtime.
For installation guidance and technical specifications, refer to the official Caterpillar service manual or consult with our technical support team.
