6Y4277

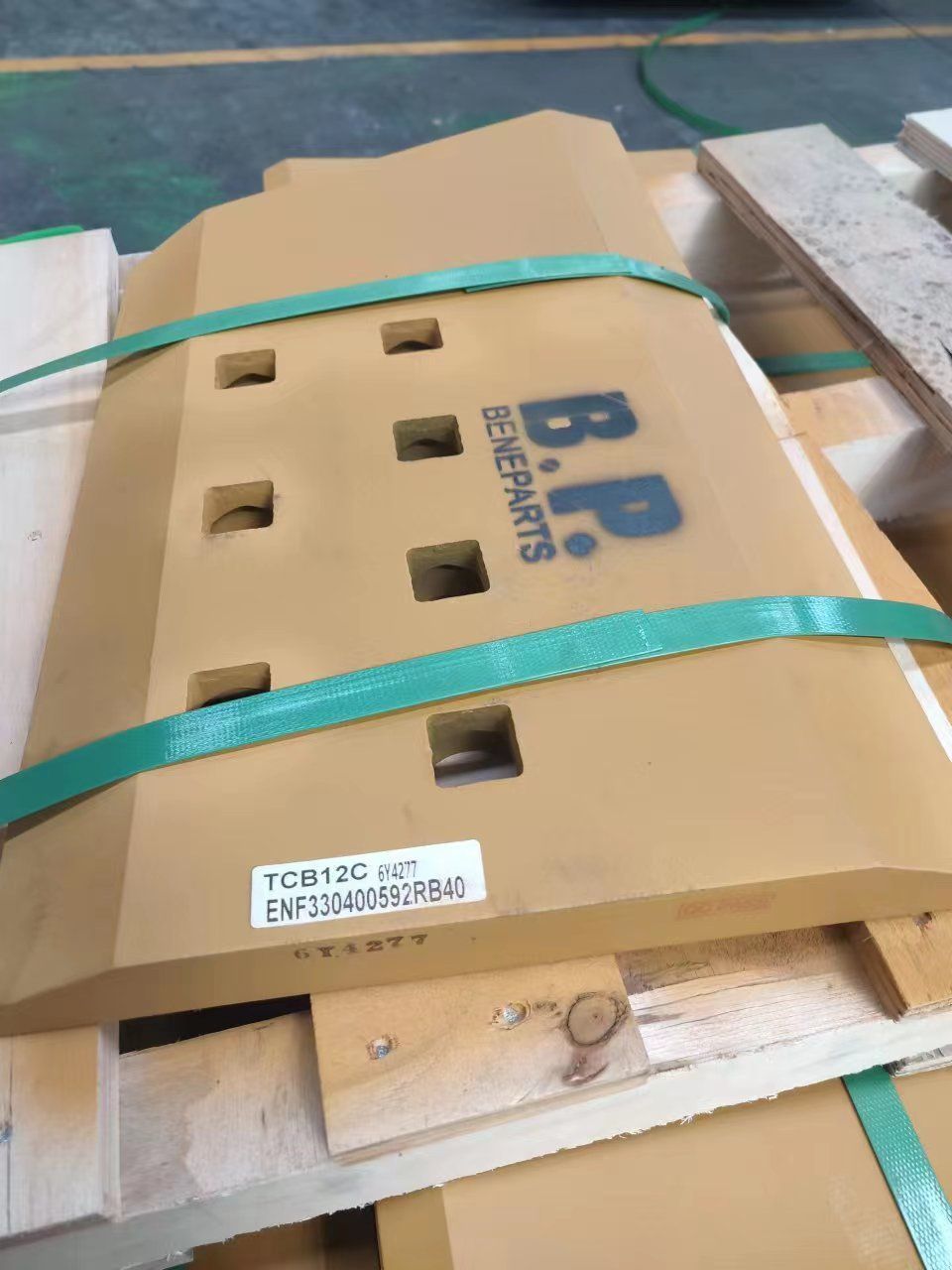

Product Specification: Dozer End Bit (Level Cut)
| Item | Specification |
|---|---|
| Part Number | 6Y-4277 |
| Product Name | Dozer End Bit (Level Cut) |
| Product Type | Dozer Cutting Edge Wear Part |
| Compatible Machine Models | D9T, D9R, D8R II, D9N, D9, D8T, D8R, D8GC, D8N, D8 GC |
| Application | Provides level cutting performance for dozer blades. |
| Dimensions | 592 mm × 330 mm × 40 mm |
| Thickness | 1 inch |
| Bolt Pattern | 7 holes |
| Single Weight | 51.1 kgs |
Note:
This level cut end bit is designed for dozer cutting edges, providing a straight, level cutting profile for grading and leveling operations.
The specified dimensions (592x330x40mm), 1-inch thickness, and 7-hole bolt pattern are key for compatibility.
Please verify exact compatibility with your specific dozer model and blade configuration before installation.
If you need specification sheets for other dozer cutting edges or wear parts, please feel free to let us know.
