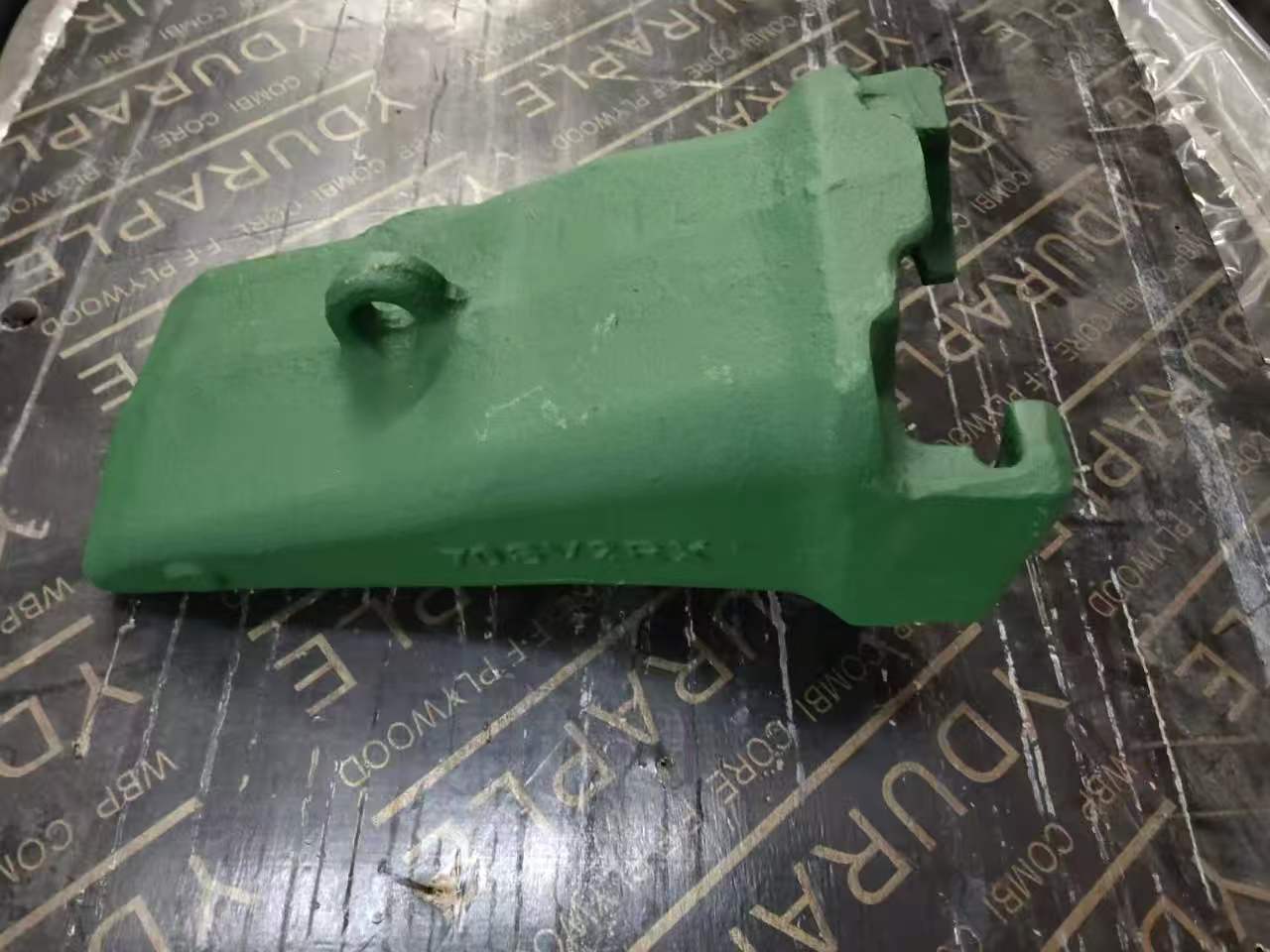

70SV2RX
Product Data Sheet: 70SV2RX General Purpose CL Shovel Tooth
Part Number: 70SV2RX / 5128578
Product Name: General Purpose CL Shovel Tooth
| Parameter | 65SV2RX | 70SV2RX (This Product) | Description |
|---|---|---|---|
| A (Length) | 330 mm | 371 mm | Overall tooth length |
| B (Width) | 149 mm | 175 mm | Tooth width |
| C (Height) | 46 mm | 48 mm | Tooth height/profile |
| D (Base) | 202 mm | 230 mm | Base dimension |
| Weight | 29 kg | 42 kg | Single tooth weight |
| Pin Part Number | 65SV2PN-C | 70SV2PN-C | Compatible pin |
| Part Number | 5129208 | 5128578 | OEM part number |
| POINT SHAPE | SV2 | NEMISYS |
|---|---|---|
| Standard | 85SV2SD | N90S |
| 70SV2SD | N70S | |
| 65SV2SD | N65S | |
| Rock | 85SV2RMX | N90RH |
| Rock-Short | 70SV2RX | N70R |
| Penetration | 85SV2VX | N90VX |
| 70SV2VX | N70VX | |
| HD Chisel | 65SV2VX | N65VX |
| 85SV2CHD | N90C | |
| Wear Caps | WC285 | N90HWC |
| WC270 | N70HWC | |
| WC265 | N65HWC |
| LIP THICKNESS | ADAPTER TYPE | SV2 | NEMISYS |
|---|---|---|---|
| 140 mm | Center | 6806W-85SV2 | N90-H140X30W |
| Straddle Leg | 68421-85SV2 | N90-H140X30WS | |
| 120 mm | Center | 6810W-85SV2 | N90-H120X30W |
| Straddle Leg | 68381-85SV2 | N90-120X30WS | |
| 100 mm | Center | 5897W-70SV2 | N70-H100X30W |
| Straddle Leg | 68391-70SV2 | N70-H100X30WS | |
| 90 mm | Center | 6839R-70SV2 | N65-H90X30W |
| Straddle Leg | 68581-65SV2 | N65-H90X30WS | |
| Center | 6803W-70SV2 | N70-H90X30W | |
| Straddle Leg | 68401-70SV2 | N70-H90X30WS | |
| 80 mm | Center | 3858W-65SV2 | N65-H80X30W |
| Item | Specification |
|---|---|
| Part Number | 70SV2RX |
| Alternative Part Number | 5128578 |
| Product Name | Shovel Tooth (General Purpose CL) |
| Product Type | Cable / Hydraulic Shovel Bucket Tooth (GET) |
| Tooth System | SV2 Series |
| Profile | General Purpose CL |
| Application | General purpose mining and excavation |
| Single Weight | 45 kgs (99.2 lbs) |
| Material | High-strength, wear-resistant alloy steel |
| Industry Focus | Surface Mining, Heavy Excavation, Quarrying |
70SV2RX shovel tooth
5128578 mining tooth
General Purpose CL tooth
45 kg shovel tooth
SV2 series tooth
Replacement shovel tooth
Mining excavator tooth
The 70SV2RX / 5128578 Shovel Tooth (General Purpose CL) is a genuine OEM-specification ground engaging tool designed for the SV2 tooth system. This General Purpose CL profile tooth is engineered for a wide range of mining and excavation applications, offering a balance of penetration and wear resistance.
The CL (Cantarina Long) designation indicates an extended wear profile for improved service life. The SV2 system is designed for large mining shovels and excavators.
| Feature | Benefit |
|---|---|
| General Purpose CL Profile | Balanced performance with extended wear life |
| SV2 System Design | Engineered for large mining equipment |
| High-Strength Alloy Steel | Durability and wear resistance |
| Self-Sharpening Design | Maintains penetration throughout life |
| Direct OEM Replacement | Guaranteed fit and performance |
| Component | Description |
|---|---|
| Compatible Adapter | SV2 series adapter |
| Locking Pin | SV2 series retention pin |
Adapter Compatibility: Use only with SV2 series adapter
Pin Installation: Use OEM-specified retention pin; ensure secure fit
Lifting Note: At 45 kg, proper lifting techniques are recommended
Regular Inspection: Check tooth for wear and damage periodically
Replacement: Replace when worn beyond OEM specifications
| Condition | Action |
|---|---|
| New tooth - full profile | Normal operation |
| Moderate wear | Monitor regularly |
| Excessive wear (loss of profile) | Replace tooth |
| Broken or cracked tooth | Replace immediately |
| Item | Detail |
|---|---|
| Part Number | 70SV2RX / 5128578 |
| Type | General Purpose CL Shovel Tooth |
| System | SV2 Series |
| Weight | 45 kg per piece |
| Packaging | Individual crate |
Note: This is a General Purpose CL shovel tooth for the SV2 system. Verify machine model and adapter compatibility before ordering. Due to weight (45 kg), proper lifting techniques are recommended during installation.
