6Y2107
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | 6Y-2107 (or 6Y2107) |
| Product Name | Weld-On Half Arrow / Bucket Lip Wear Protection |
| Product Type | LHD / Loader Bucket Wear Protection |
| Compatible Machine Models | Caterpillar R1300G, R1600G, R1600H, R1700, R1700G, R2900, R2900G, R2900 XE, R3000H LHD / Load Haul Dump |
| Application | Protects the bucket lip and provides cutting edge performance |
| Design | Half Arrow (Weld-On) |
| Single Weight | 329.8 kgs (727.1 lbs) |
| Material | High-strength, abrasion-resistant alloy steel |
| Attachment Method | Weld-On |
| Industry Focus | Underground Mining, Load Haul Dump (LHD) Operations, Tunneling |
Caterpillar 6Y-2107 half arrow
R3000H bucket wear protection
R2900 half arrow weld-on
329.8 kg bucket lip shroud
CAT LHD bucket cutting edge
Replacement half arrow for R1700G
Underground mining bucket wear parts

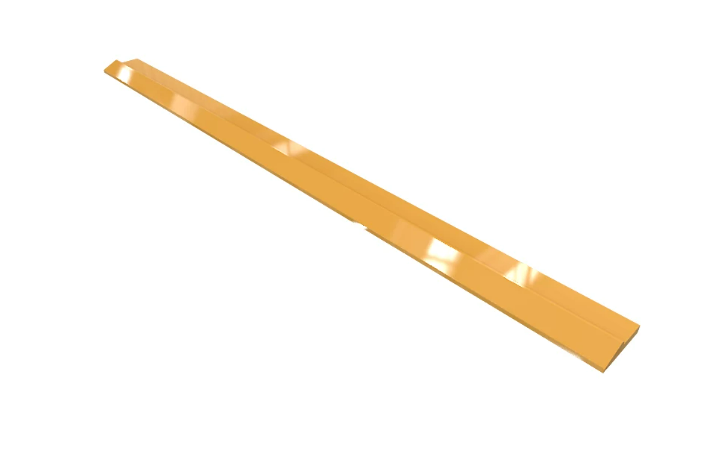

The Caterpillar 6Y-2107 Weld-On Half Arrow is a genuine OEM-specification ground engaging tool designed for Caterpillar R-series LHD (Load Haul Dump) machines used in underground mining operations. This half arrow component provides essential wear protection to the bucket lip and functions as a cutting edge for efficient material penetration.
The R-series LHDs are used in underground mining for loading and hauling ore and waste material. The half arrow profile offers excellent cutting performance while protecting the bucket lip from severe abrasion and impact. This weld-on component is permanently attached to the bucket.
| Feature | Benefit |
|---|---|
| Half Arrow Design | Provides excellent cutting performance and bucket lip protection |
| Weld-On Attachment | Secure permanent installation |
| Abrasion-Resistant Alloy Steel | Maximum durability in severe underground mining conditions |
| Heavy-Duty Construction (329.8 kg) | Robust build for demanding LHD applications |
| R-Series Optimized | Specifically engineered for CAT R1300G through R3000H LHDs |
| Direct OEM Replacement | Guaranteed fit and performance |
| Extended Bucket Life | Protects critical bucket structure from wear |
| Machine Model | Type | Application |
|---|---|---|
| R1300G | LHD | Underground mining |
| R1600G, R1600H | LHD | Underground mining |
| R1700, R1700G | LHD | Underground mining |
| R2900, R2900G, R2900 XE | LHD | Underground mining |
| R3000H | LHD | Underground mining |
| Application | Description |
|---|---|
| Underground Mining | Ore and waste material loading |
| Tunneling | Excavation and mucking |
| Load Haul Dump | Material handling operations |
Position: Installs on bucket lip as cutting edge / wear protection
Attachment: Weld-on installation - use qualified personnel and proper welding procedures
Edge Preparation: Ensure bucket lip surface is clean and properly prepared before welding
Lifting Requirement: Due to weight (329.8 kg), specialized lifting equipment and mechanical assistance are required
Regular Inspection: Check for wear, cracks, and weld integrity periodically
Replacement: Replace when worn beyond OEM specifications to protect bucket structure
| Condition | Action |
|---|---|
| New half arrow - full profile | Normal operation |
| Moderate wear | Monitor regularly |
| Excessive wear (loss of profile/thinning) | Replace half arrow |
| Weld cracks | Repair immediately |
| Deformation | Replace immediately |
| Item | Detail |
|---|---|
| Part Number | 6Y-2107 / 6Y2107 |
| Type | Weld-On Half Arrow |
| Weight | 329.8 kg per piece |
| Compatibility | CAT R1300G, R1600G, R1600H, R1700, R1700G, R2900, R2900G, R2900 XE, R3000H |
| Packaging | Individual crate |
Note: This is a weld-on half arrow for Caterpillar R-series LHD machines used in underground mining. Weld-on installation required - use qualified welding personnel. Due to significant weight (329.8 kg), specialized lifting equipment and mechanical assistance are required for safe handling and installation. Verify bucket model and configuration before ordering.
