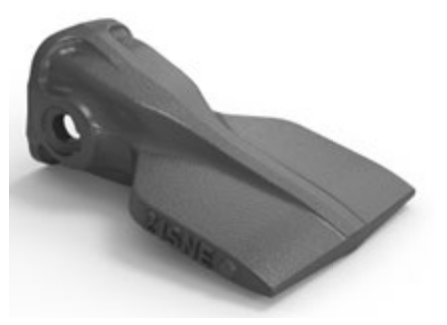

Product Specification: Spade Nose Tooth
| Item | Specification |
|---|---|
| Part Number | 66SNE |
| Associated Part Number | VOE 54099789 |
| Product Name | Spade Nose Tooth |
| Product Type | Excavator/Loader Bucket Tooth |
| Application | Heavy-duty excavation in cohesive materials |
| Design | Spade Nose |
| Dimension A | 382 mm |
| Dimension B | 256 mm |
| Dimension C | 178 mm |
| Dimension D | 167 mm |
| Single Weight | 24.7 kgs (54.5 lbs) |
Note:
This Spade Nose tooth features a wide, flat profile designed for improved penetration in cohesive materials such as clay and compacted soils.
The spade nose design provides excellent bucket fill factors and reduced wear in certain applications.
Compatible with Volvo machinery using the corresponding adapter system (refer to VOE 54099789).
Please verify exact compatibility with your specific machine, bucket configuration, and adapter system before installation.
If you need specification sheets for compatible adapters or other related ground engaging tools, please feel free to let us know.
