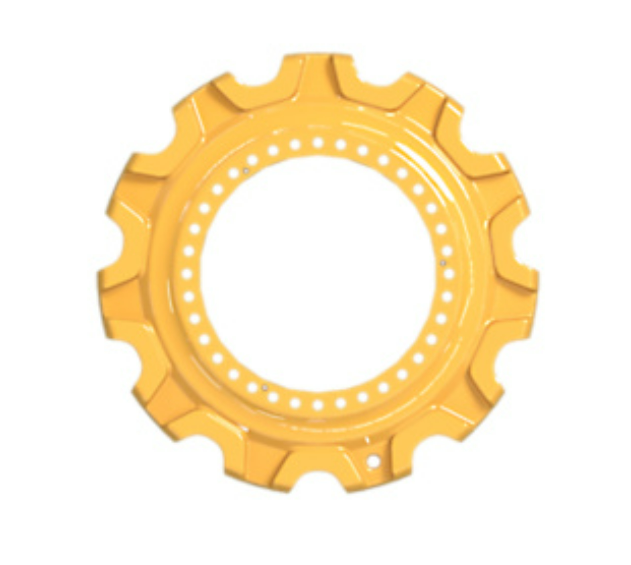

Product Specification: Shovel Sprocket
| Item | Specification |
|---|---|
| Part Number | 471-7760 |
| Product Name | Shovel Sprocket |
| Product Type | Drive Sprocket for Mining Shovel |
| Compatible Machine Models | Caterpillar 6020B, 6020 (and similar mining shovels) |
| Application | Drive component for crawler track system in mining applications. |
| Track Pitch | 350 mm |
| Number of Teeth | 12 |
| Feature | Self-Seeking (Self-Cleaning) |

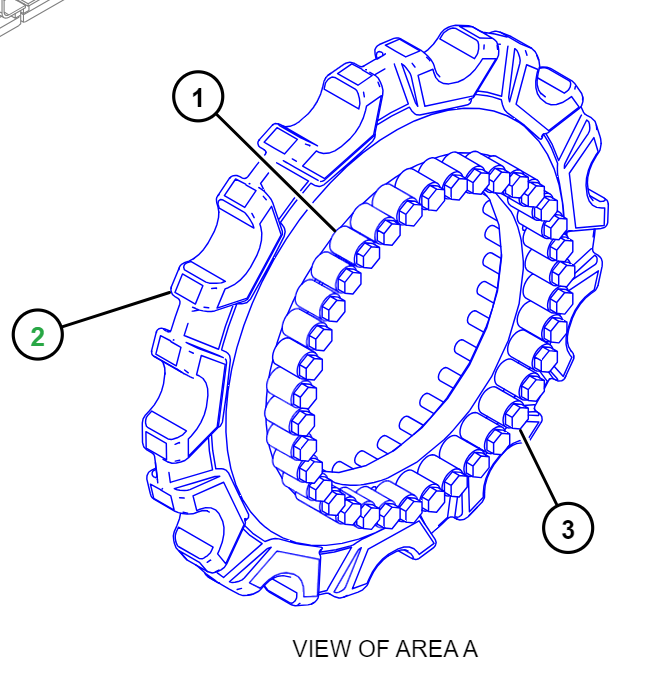

| Mounting Bolt | 438-9255 |
| Single Weight | 500 kgs |
Note:
This part is a drive sprocket designed for heavy-duty mining shovels, used to engage with the track chain.
The self-seeking (or self-cleaning) feature helps prevent material buildup between teeth, ensuring smooth engagement and reduced wear.
The 350mm track pitch and 12-tooth configuration are specific to compatible track chains.
Use the specified mounting bolt 438-9255 for secure installation.
Due to the heavy weight (500 kg), proper lifting equipment and installation procedures must be followed.
