587-6971
| Availability: | |
|---|---|

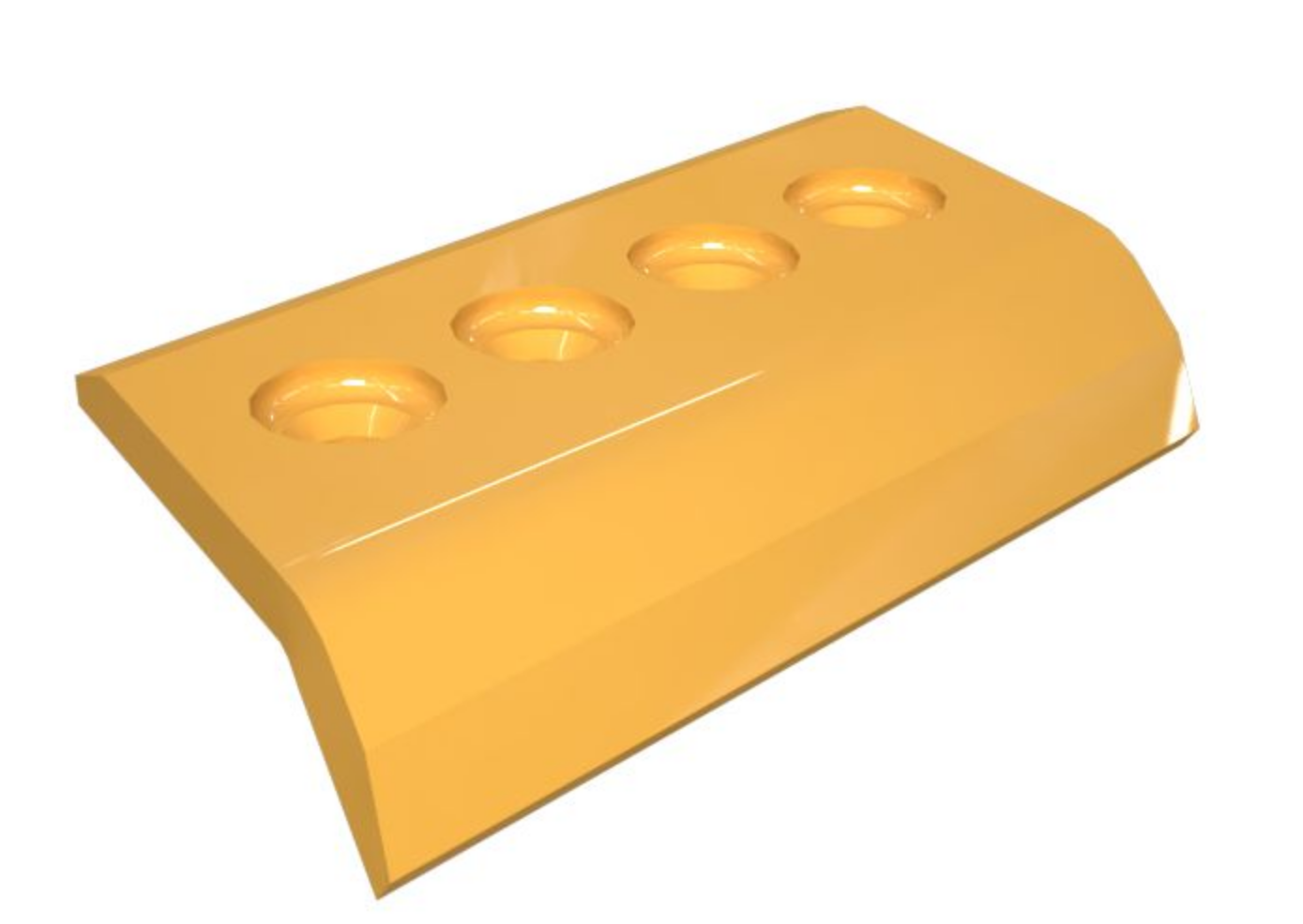

Product Specification: Bucket Wear Plate (Left Hand Side)
| Item | Specification |
|---|---|
| Part Number | 587-6971 |
| Product Name | Bucket Wear Plate (Left Hand Side) |
| Product Type | Excavator Bucket Wear Protection |
| Compatible Machine Models | CAT 395 Excavator |
| Position | Left Hand (LH) |
| Material | Boron Steel |
| Durability | Standard |
| Attachment Method | Bolt-On |
| Thickness | 28.5 mm (1.122 in) |
| Width | 100 mm (3.937 in) * |
| Depth | 305 mm (12.008 in) |
| Bevel Angle | 35° |
| Spade Angle | 15° |
| Number of Holes | 4 |
| Hole Spacing | 100 mm (3.937 in) |
Note:
This left-hand side bucket wear plate is made of boron steel for excellent abrasion resistance on the CAT 395 excavator.
The 35° bevel angle and 15° spade angle are designed for optimal material flow and protection.
It is attached using 4 bolts with a 100mm (3.937 in) hole spacing.
Note: The width dimension has been interpreted as 3.937 inches (100 mm) based on engineering context, as the provided value (3,937.008 in) appears to be a unit error.
Please verify exact compatibility with your specific bucket configuration before installation.
If you need specification sheets for other bucket wear parts, please feel free to let us know.
