| Item | Specification |
|---|---|
| Part Number | 554-3244 |
| Alternative Part Number | 5543244 |
| Product Name | Sprocket Segment |
| Product Type | Undercarriage Component (Segmented Sprocket Ring) |
| Compatible Machine Models | SEM 822D Bulldozer / Tractor |
| Single Weight | 15.8 kgs (34.8 lbs) |
| Material | High-strength alloy steel, induction-hardened teeth |
| Application | Drives the track chain; replaces individual segments of a segmented sprocket |
| Industry Focus | Construction, Earthmoving, Land Clearing, Mining Support |
SEM 554-3244 sprocket segment
822D sprocket segment
5543244 undercarriage part
SEM 822D drive sprocket segment
15.8 kg sprocket segment for SEM 822D dozer
Replacement sprocket segment for SEM 822D
Segmented sprocket ring for bulldozer

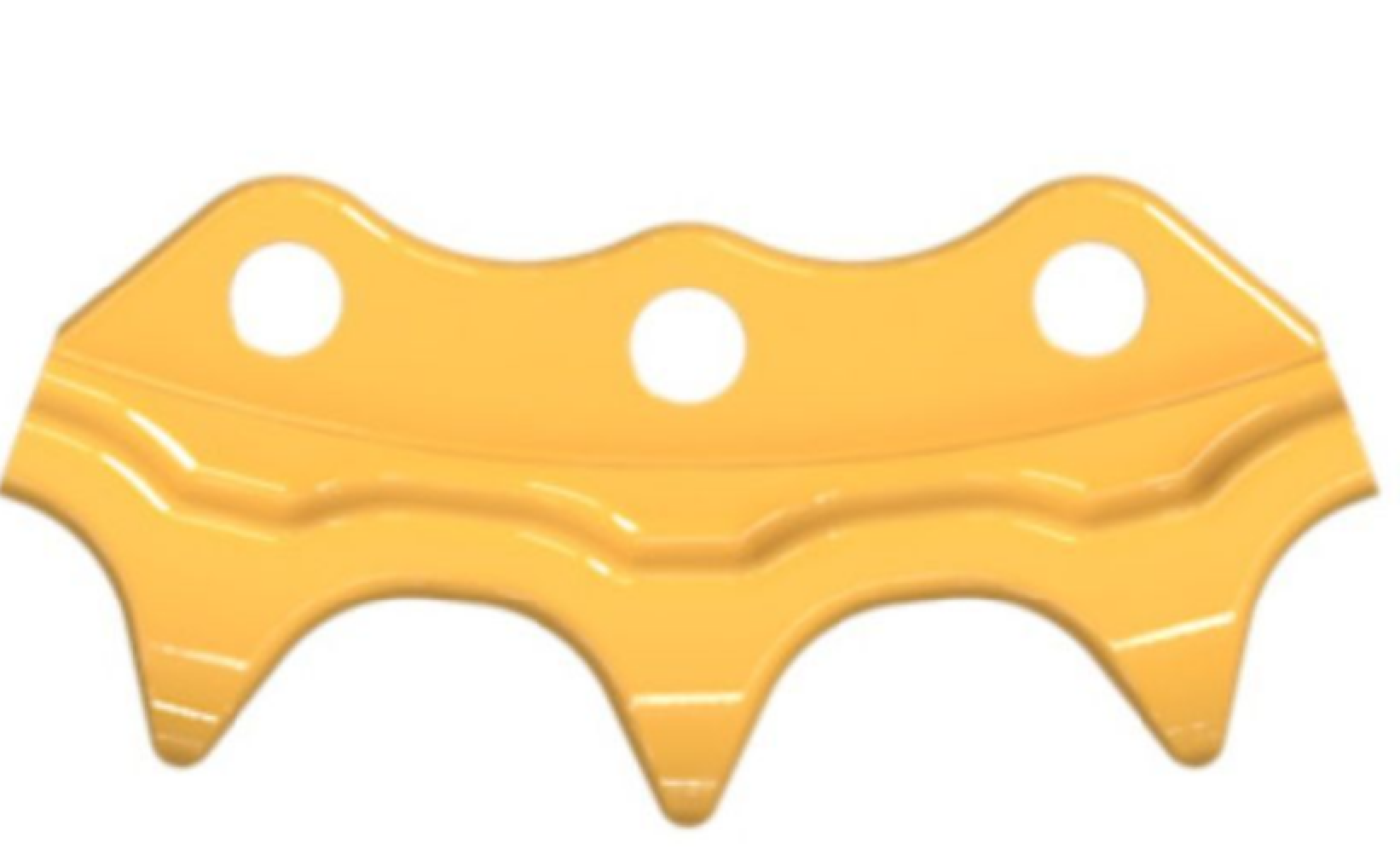

The SEM 554-3244 Sprocket Segment is a genuine OEM-specification undercarriage component designed for the SEM 822D bulldozer/tractor. This sprocket segment is part of a segmented sprocket design, where multiple segments bolt together to form the complete drive sprocket ring.
The segmented sprocket design allows for individual replacement of worn segments rather than replacing the entire sprocket, significantly reducing maintenance costs and downtime. Each segment features precision-machined tooth profiles for optimal engagement with the track chain.
| Feature | Benefit |
|---|---|
| Segmented Design | Individual replacement reduces maintenance costs |
| Induction-Hardened Teeth | Exceptional wear resistance and extended service life |
| Precision-Machined Profile | Optimal engagement with track bushings for smooth operation |
| High-Strength Alloy Steel | Maximum durability for demanding applications |
| 822D Optimized | Specifically engineered for SEM 822D bulldozer |
| Direct OEM Replacement | Guaranteed fit and performance |
| Heavier Duty (15.8 kg) | Built for larger dozer applications |
| Specification | Detail |
|---|---|
| Machine Model | SEM 822D Bulldozer / Tractor |
| Machine Type | Large Bulldozer |
| Position | Drive sprocket (segmented ring) |
| Application | Construction, earthmoving, land clearing, mining |
| Parameter | Detail |
|---|---|
| Part Type | Sprocket Segment |
| Weight per Segment | 15.8 kg |
| Segments per Complete Sprocket | Consult OEM manual (typically 5-7 segments) |
| Complete Sprocket Weight | ~79-110 kg |
| Part Number | Machine | Weight |
|---|---|---|
| 544-4537 | SEM 816D | 8 kg |
| 554-3244 | SEM 822D | 15.8 kg |
| Component | Description |
|---|---|
| Track Assembly | Complete track system |
| Idler | Front idler assembly |
| Bottom Roller | Track roller (single/double flange) |
| Top Roller | Carrier roller |
Segmented Design: Multiple segments form the complete sprocket ring
Tooth Inspection: Regularly inspect segment teeth for wear; replace individual segments as needed
Bolt Torque: Follow SEM OEM specifications for mounting bolt torque
Alignment: Ensure proper alignment with track chain to prevent premature wear
Track Tension: Maintain proper track tension to extend sprocket life
Replacement: Replace individual segments when tooth wear exceeds OEM specifications
Even Replacement: Consider replacing all segments simultaneously for balanced wear
| Condition | Action |
|---|---|
| New teeth - sharp profile | Normal operation |
| Moderate wear - rounded profile | Monitor regularly |
| Hook-shaped teeth | Replace segment |
| Broken teeth | Replace segment immediately |
| Loose mounting bolts | Retorque immediately |
| Item | Detail |
|---|---|
| Part Number | 554-3244 / 5543244 |
| Type | Sprocket Segment (Segmented Sprocket Ring) |
| Weight | 15.8 kg per segment |
| Compatibility | SEM 822D Bulldozer / Tractor |
| Packaging | Individual box |
Note: This is a sprocket segment for the SEM 822D bulldozer. Multiple segments are required to form the complete sprocket ring - consult your parts manual for the exact quantity per sprocket. The segmented design allows for cost-effective individual segment replacement. Verify machine serial number and undercarriage configuration before ordering.
