470-9306
| Availability: | |
|---|---|
| Item | Specification |
|---|---|
| Part Number | 470-9306 (or 4709306) |
| Product Name | Lip Shroud / Half Arrow Cutting Edge |
| Product Type | LHD / Loader Bucket Wear Protection (Right-Hand Corner) |
| Compatible Machine Models | Caterpillar R1300G, R1600G, R1600H, R1700, R1700G, R1700 XE, R2900G, R3000H LHD / Load Haul Dump |
| Position | Right-Hand Corner |
| Application | Protects the bucket lip corner and provides cutting edge performance |
| Design | Half Arrow / Corner Shroud |
| Single Weight | 65.5 kgs (144.4 lbs) |
| Material | High-strength, abrasion-resistant alloy steel |
| Industry Focus | Underground Mining, Load Haul Dump (LHD) Operations, Tunneling |
Caterpillar 470-9306 lip shroud
R1700G half arrow cutting edge
R3000H corner shroud
4709306 bucket wear protection
CAT LHD right-hand corner shroud
65.5 kg bucket lip shroud for R2900G
Underground mining bucket wear parts

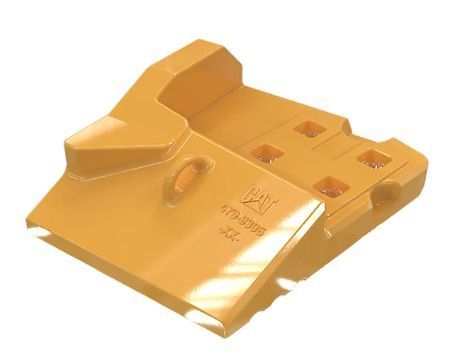

The Caterpillar 470-9306 Lip Shroud (Half Arrow Cutting Edge) is a genuine OEM-specification ground engaging tool designed for Caterpillar R-series LHD (Load Haul Dump) machines used in underground mining operations. This right-hand corner shroud provides essential wear protection to the bucket lip corner and functions as a cutting edge for efficient material penetration.
The R-series LHDs are used in underground mining for loading and hauling ore and waste material. The half arrow / corner shroud profile offers excellent cutting performance while protecting the bucket lip corner from severe abrasion and impact.
| Feature | Benefit |
|---|---|
| Right-Hand Corner Design | Specifically engineered for the right-hand corner of the bucket lip |
| Half Arrow / Corner Shroud Profile | Provides excellent cutting performance and corner protection |
| Abrasion-Resistant Alloy Steel | Maximum durability in severe underground mining conditions |
| Heavy-Duty Construction (65.5 kg) | Robust build for demanding LHD applications |
| R-Series Optimized | Specifically engineered for CAT R1300G through R3000H LHDs |
| Direct OEM Replacement | Guaranteed fit and performance |
| Extended Bucket Life | Protects critical bucket corner structure from wear |
| Machine Model | Type | Application |
|---|---|---|
| R1300G | LHD | Underground mining |
| R1600G, R1600H | LHD | Underground mining |
| R1700, R1700G, R1700 XE | LHD | Underground mining |
| R2900G | LHD | Underground mining |
| R3000H | LHD | Underground mining |
| Application | Description |
|---|---|
| Underground Mining | Ore and waste material loading |
| Tunneling | Excavation and mucking |
| Load Haul Dump | Material handling operations |
Position: This is a right-hand corner shroud - installs on right-hand corner of bucket lip
Lifting Note: At 65.5 kg, proper lifting techniques and mechanical assistance are recommended
Attachment: Follow Caterpillar OEM specifications for welding or bolting
Regular Inspection: Check for wear, cracks, and loose attachment periodically
Replacement: Replace when worn beyond OEM specifications to protect bucket corner structure
Pair Replacement: Consider replacing left and right corner shrouds simultaneously for balanced protection
| Condition | Action |
|---|---|
| New shroud - full profile | Normal operation |
| Moderate wear | Monitor regularly |
| Excessive wear (loss of profile/thinning) | Replace shroud |
| Cracks or deformation | Replace immediately |
| Loose attachment | Retighten or re-weld |
| Item | Detail |
|---|---|
| Part Number | 470-9306 / 4709306 |
| Type | Lip Shroud / Half Arrow Cutting Edge (Right-Hand Corner) |
| Weight | 65.5 kg per piece |
| Compatibility | CAT R1300G, R1600G, R1600H, R1700, R1700G, R1700 XE, R2900G, R3000H |
| Packaging | Individual crate |
Note: This is a right-hand corner lip shroud for Caterpillar R-series LHD machines used in underground mining. Verify bucket model and configuration before ordering. Due to weight (65.5 kg), proper lifting techniques and mechanical assistance are recommended during installation.
