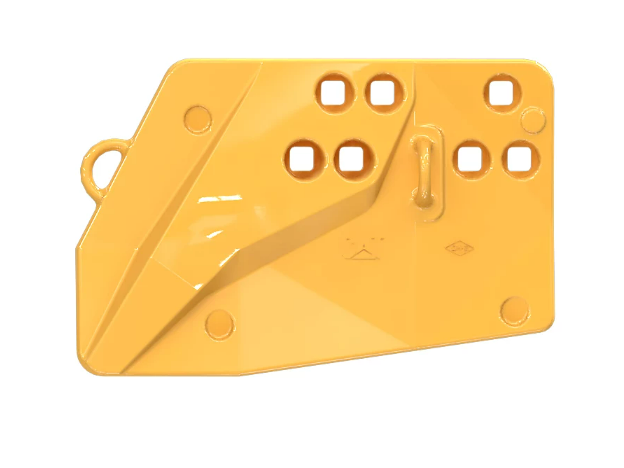

Product Specification:
Part Number: 275-5942 (also referenced as 2755942)
Product Name: Dozer End Bit
Product Type: Dozer Blade Wear Part / End Bit
Position: Left Hand (LH)
Single Weight: 130-137 kgs
Thickness: 50 mm
Width: 490 mm
Length: 730 mm
Compatible Machine Models: Caterpillar D10N, Caterpillar D10R, Caterpillar D10T, Caterpillar D10T2
Material: High-strength, wear-resistant alloy steel
Application: Mining, quarrying, heavy earthmoving, dozer blade protection
Note: For detailed bolt hole specifications and installation procedures, please contact our sales team.
Key Features:
Heavy-Duty Construction: Engineered for demanding dozer applications in mining and heavy earthmoving
Left-Hand Position: Specifically for left blade end installation
Contoured Profile: Helps roll material toward the center of the blade for greater load retention and capacity
High Impact and Abrasion Resistance: Engineered for demanding mining applications
Wear-Resistant Alloy Steel: Manufactured from high-strength material for extended service life
Blade Protection: Shields blade ends from wear, extending overall blade service life
Direct OEM Replacement: Designed to meet OEM specification replacement standards
Compatible Equipment:
Caterpillar D10N – Track-Type Tractor
Caterpillar D10R – Track-Type Tractor
Caterpillar D10T – Track-Type Tractor
Caterpillar D10T2 – Track-Type Tractor
Caterpillar D10 – Track-Type Tractor
Caterpillar 854G – Wheel Dozer
Caterpillar 854K – Wheel Dozer
Applications:
Replacement Information:
This end bit serves as a direct aftermarket replacement with OEM reference 275-5942 for Caterpillar D10N, D10R, D10T, and D10T2 bulldozers. The left-hand end bit is engineered to meet OEM specification replacement requirements for blade end wear protection in mining and heavy earthmoving operations.
Disclaimer: Beneparts is not affiliated with Caterpillar. All trademarks are used for identification and compatibility reference purposes only.
Related Parts:
8E-4541 / 8E-4542 – Extended Wear Life end bits for D10 series
Cutting edges and center bits for D10 series dozers
Mounting hardware including plow bolts, nuts, and washers
Complete blade wear protection kits available upon request
FAQ:
Q: Is the 275-5942 a direct replacement for the OEM end bit?
A: Yes, the 275-5942 is manufactured as an aftermarket replacement with OEM specification replacement standards for Caterpillar D10N, D10R, D10T, and D10T2 dozer end bits.
Q: What machines is this end bit compatible with?
A: It is specifically designed for Caterpillar D10N, D10R, D10T, D10T2, D10, 854G, and 854K bulldozers. Verify compatibility with your blade system before installation.
Q: What are the dimensions of this end bit?
A: The dimensions are 50mm thickness, 490mm width, and 730mm length.
Q: What is the weight of the 275-5942 end bit?
A: The single weight ranges from 130-137 kgs.
Q: What position is this end bit for?
A: This is a left-hand (LH) end bit.
Q: What material is this end bit made from?
A: The 275-5941 is manufactured from high-strength, wear-resistant alloy steel for durability in demanding dozer applications.
Q: What is the lead time for this replacement part?
A: Please contact our sales team for current stock availability and shipping estimates.
