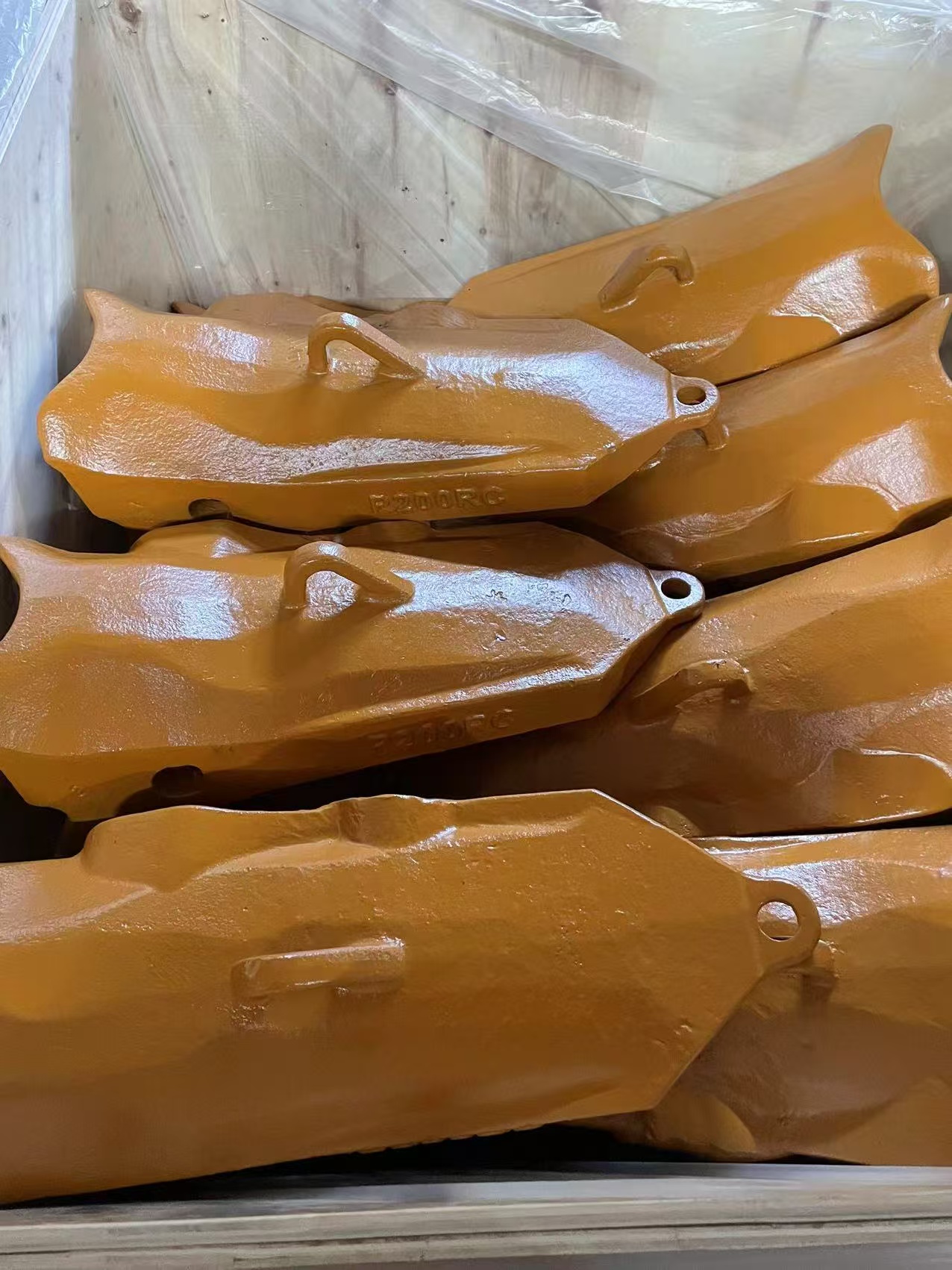

Product Specification: Bucket Tooth (Rock Chisel)

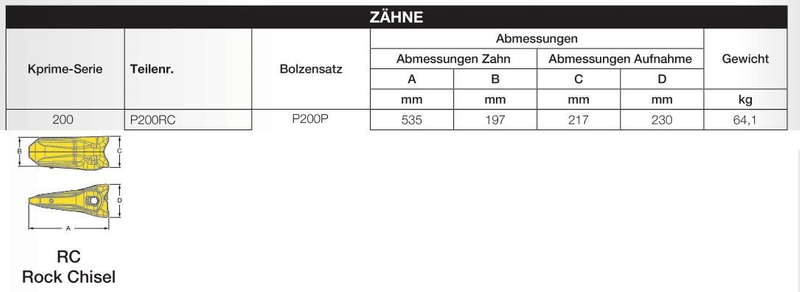

| Item | Specification |
|---|---|
| Part Number | P200RC |
| Replacement Part Number | P200PC |
| Product Name | Bucket Tooth (Rock Chisel) |
| Product Type | Excavator Bucket Tooth |
| Compatible Machine Models | Large excavators within 116,000 kg to 216,400 kg weight range (e.g., Komatsu PC2000) |
| Tooth System | K-Prime |
| Tooth Profile | Rock Chisel |
| Single Weight | 64.1 kg |

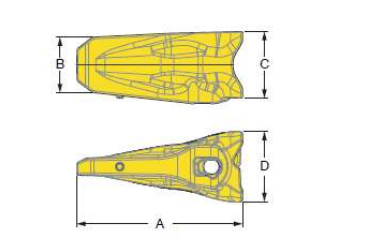

| Dimension A | 535 mm |
| Dimension B | 197 mm |
| Dimension C | 217 mm |
| Dimension D | 230 mm |
| Compatible Adapter | 5120WP200 |
| Compatible Pin | P200P |
Note:
This rock chisel profile bucket tooth is designed for the K-Prime tooth system, suitable for extreme rock excavation.
It is interchangeable with part number P200PC.
Must be used with the specified compatible adapter 5120WP200 and pin P200P for secure installation and proper function.
The rock chisel profile provides excellent penetration and breaking force in the most demanding rock applications.
Please verify exact compatibility with your specific machine and adapter before installation.
