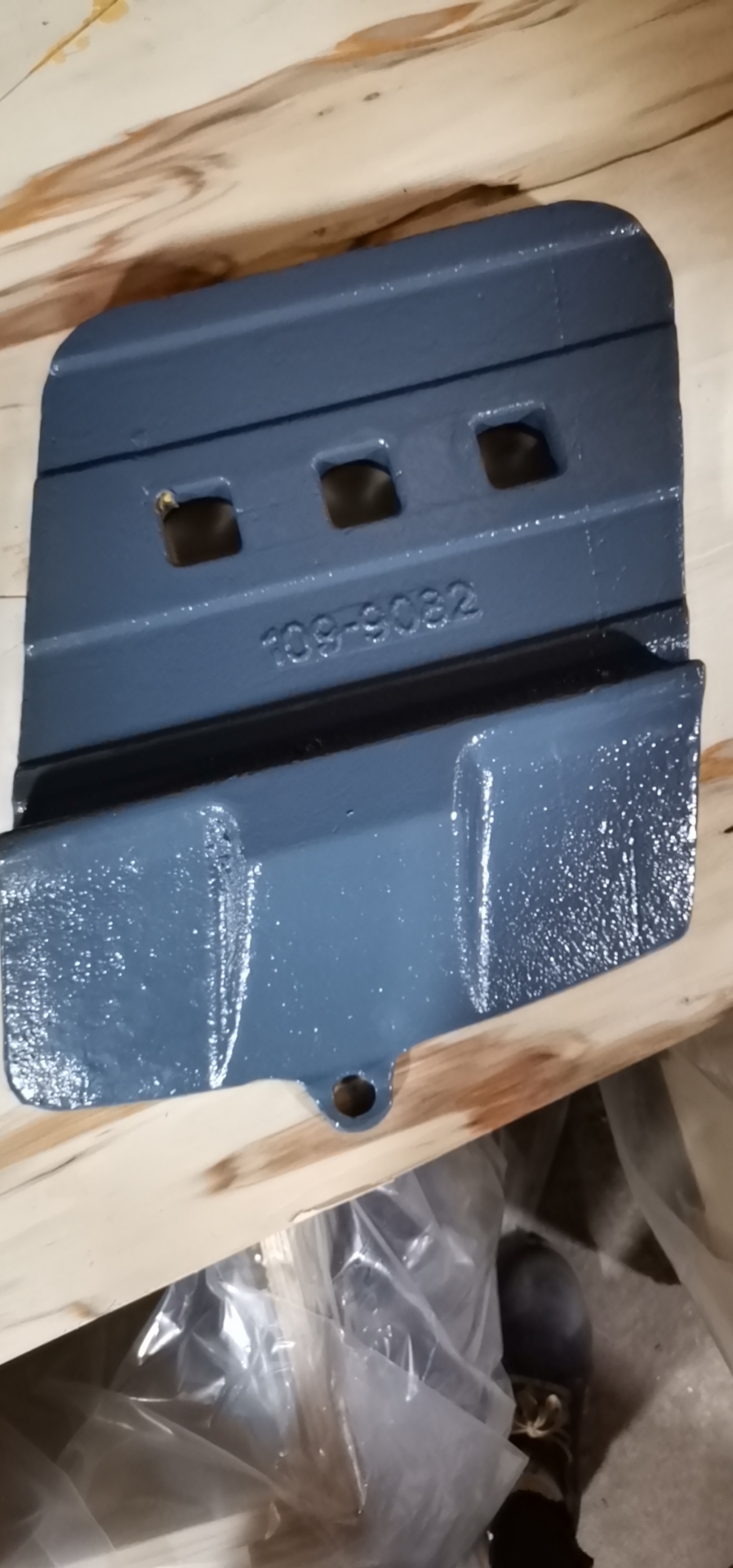

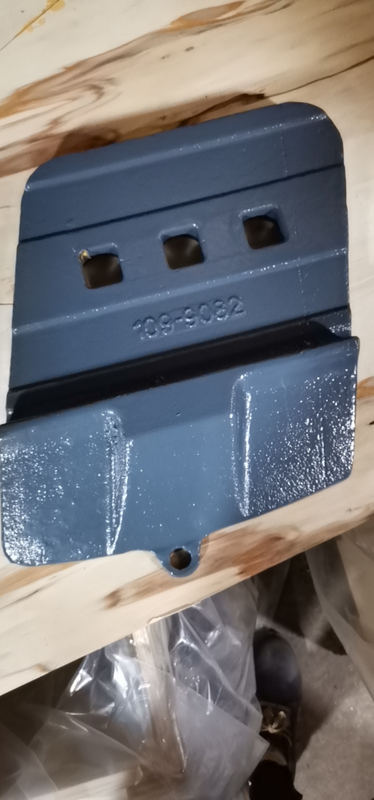

Product Data Sheet: 109-9082 Half Arrow
Part Number: 109-9082
Product Name: Half Arrow
The 109-9082 Half Arrow is a precision-engineered intermediate wear component for heavy-duty ground engaging systems. Designed to connect the adapter and tip, it provides critical protection to the lip structure and adapter, significantly extending the service life of the entire assembly in demanding applications.
| Parameter | Metric (mm) | Imperial (inch) |
|---|---|---|
| A | 420 mm | 16.54 inch |
| B | 342 mm | 13.46 inch |
| C | 45 mm | 1.77 inch |
| D | 75 mm | 2.95 inch |
| E | 275 mm | 10.83 inch |
| F | 85 mm | 3.35 inch |
| G | 86 mm | 3.39 inch |
This half arrow works in a complete system with these components:
| Part Number | Description |
|---|---|
| 109-9081 | Half Arrow RH |
| 109-9082 | Half Arrow LH |
| 109-9080 | Half Arrow |
Primary Applications: Load Haul Dump (LHD), Front Shovel, Excavator, Track-Type Loader, and Wheel Loader operations
Compatible Equipment Models Include:
LOAD HAUL DUMP: R1700, R1700K
FRONT SHOVEL: 5080
EXCAVATOR: 385C, 385C L, 365C L, 374F L, 374D L, 390D, 390F, 374F, 365B II, 390D L, 390F L, 374, 365B L, 365C, 385B, 385C, 365B
TRACK-TYPE LOADER: 973
WHEEL LOADER: 982XE, 980G II, 980XE, 988K XE, 988B, 988G, 988H, 988F, 988K, 980C, 980F, 972H, 972K, 980H, 980G, 988 XE, 980L, 980K, 980M, 988F II, 986, 980, 982, 988GC, 986H, 988, 986K, 982M, 980F II
Enhanced Lip Protection: Acts as a sacrificial component to protect the bucket lip and adapter from direct wear
Optimized Force Distribution: Effectively transfers digging forces through the GET system
Modular Design: Enables cost-effective replacement of individual wear components
Precision Engineering: Guarantees perfect fit with compatible adapters and points
Extended Service Life: High-quality materials and heat treatment ensure durability in abrasive conditions
